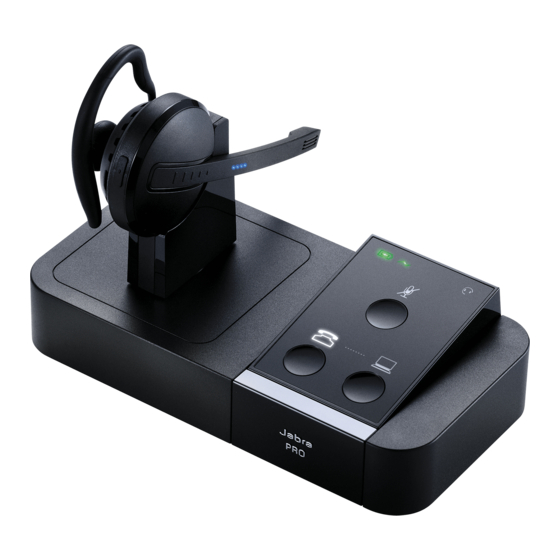

Jabra PRO 9400 How-To

How to connect with siemens openstage 30,40,60,80

How to connect my Jabra PRO 9400 / GO 6470 with Siemens

OpenStage 30,40,60,80

Jabra GO 6470

Prerequisite:

Jabra PRO 9460 / Jabra PRO 9470 + Jabra LINK 14201-10

In combination with one of the following phones:

Siemens OpenStage 30/40/60/80

1. Plug the 1-sided end of the DHSG cable marked blue into the phone

socket marked with a "headset" symbol.

2. Insert the RJ9 plug of the DHSG cable into the headset base socket

marked with a "phone" symbol and the RJ45 plug into the socket

marked with "AUX".

Then follow the instructions of the Jabra PRO 9400 / Jabra GO 6470 base

SmartSetup Wizard.

Select phone settings, "Desk phone", then "Connect to a desk phone?",

"Manual".

https://www.jabra.co.nz/supportpages/jabra-go-6470/6470-15-207-503/faq/6d386e88-

c460-4f09-8ac6-00eb36f71030

06/04/2021 08:59

Page 1 of 3

Table of Contents

Do you have a question about the PRO 9400 and is the answer not in the manual?

Page 1 "phone" symbol and the RJ45 plug into the socket marked with "AUX". Then follow the instructions of the Jabra PRO 9400 / Jabra GO 6470 base SmartSetup Wizard. Select phone settings, "Desk phone", then "Connect to a desk phone?", "Manual".
Page 2 Microphone volume setting: We recommend setting the microphone volume to 6 out of 13. Guided set-up: As part of the installation you can dial into the local Jabra Setup Server that takes care of configuring the audio path. Please follow the https://www.jabra.co.nz/supportpages/jabra-go-6470/6470-15-207-503/faq/6d386e88-...
Page 3 06/04/2021 08:59 instructions shown on the display. If your Jabra Setup Server is unavailable, please contact your local Jabra support team. Phone setup: Important: For the equipment software 3.18 the headset operation must be set up additionally on the phone.
