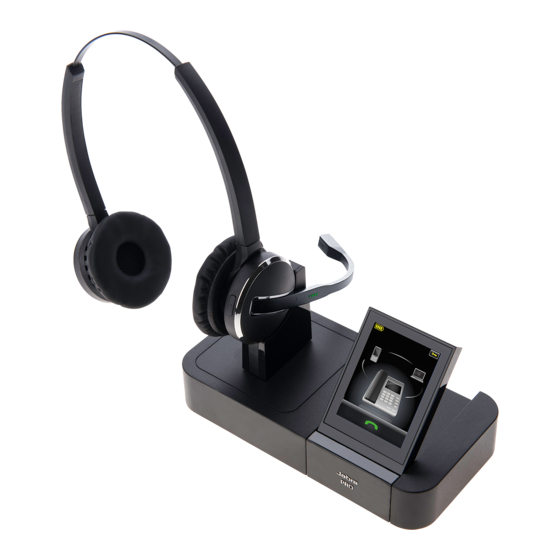

Jabra Pro 9465 Duo
How to connect my Jabra Pro 9400 / Go 6470 with Siemens
Opti Point 410, 420, 500, 600
Prerequisite:
Jabra Pro 9460 / Jabra Pro 9470 + Jabra Link 14201-10 + Acoustic
Adapter
In combination with one of the following phones:
Opti Point 410 standard / advance
Opti Point 420 standard / advance
Opti Point 500 basic / standard / advance
Opti Point 600
+ Opti Point Acoustic Adapter:
min. Version number for: S30817-K7110-B508 -10
min. Version number for: S30817-K7110-N508 -1
+ HiPath phone system:
HiPath 500 from V.5
HiPath 1220 from V2.1 Build 032
HiPath 2000 from V1.0
HiPath 3000 from V3 SMR 14
HiPath 3000 from V4 SMR 7
HiPath 4000 from V1
Important: If any of the components are missing the Remote Call
Control will not work.
Connection:
1. Plug the 1-sided end of the DHSG cable marked in blue into the
https://www.apac.jabra.com/supportpages/jabra-pro-9465/9465-29-804-
102/faq/b59e26d8-9cae-4ded-bc5b-bec01f321ea6
21/12/2023 19:54
Page 1 of 4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Jabra Pro 9400
Summary of Contents for Jabra Pro 9400
- Page 1 21/12/2023 19:54 Jabra Pro 9465 Duo How to connect my Jabra Pro 9400 / Go 6470 with Siemens Opti Point 410, 420, 500, 600 Prerequisite: Jabra Pro 9460 / Jabra Pro 9470 + Jabra Link 14201-10 + Acoustic Adapter In combination with one of the following phones:...
- Page 2 OptiPoint Acoustic Adapter marked with the "headset" symbol. 2. Connect the split end of the DHSG cable with the Jabra Pro 9400 base as follows. Plug the RJ10 plug into the socket marked with a “phone” symbol and the RJ45 plug into the base socket marked with "AUX".
- Page 3 We recommend setting the microphone volume to 6 out of 13. Guided set-up: As part of the installation you can dial into the local Jabra Setup server that takes care of configuring the audio path. Please follow the instructions shown on the display. If your Jabra Setup server is unavailable, please contact your local Jabra Support team.
- Page 4 21/12/2023 19:54 (combination: *91>select button > change button > headset > OK). https://www.apac.jabra.com/supportpages/jabra-pro-9465/9465-29-804- Page 4 of 4 102/faq/b59e26d8-9cae-4ded-bc5b-bec01f321ea6...
