Smart VacPrep > Unit [n] > Enable Manual Control
Use to enable the manual control of certain system valves and elevator components. When this option is
enabled, a checkmark appears to the left of

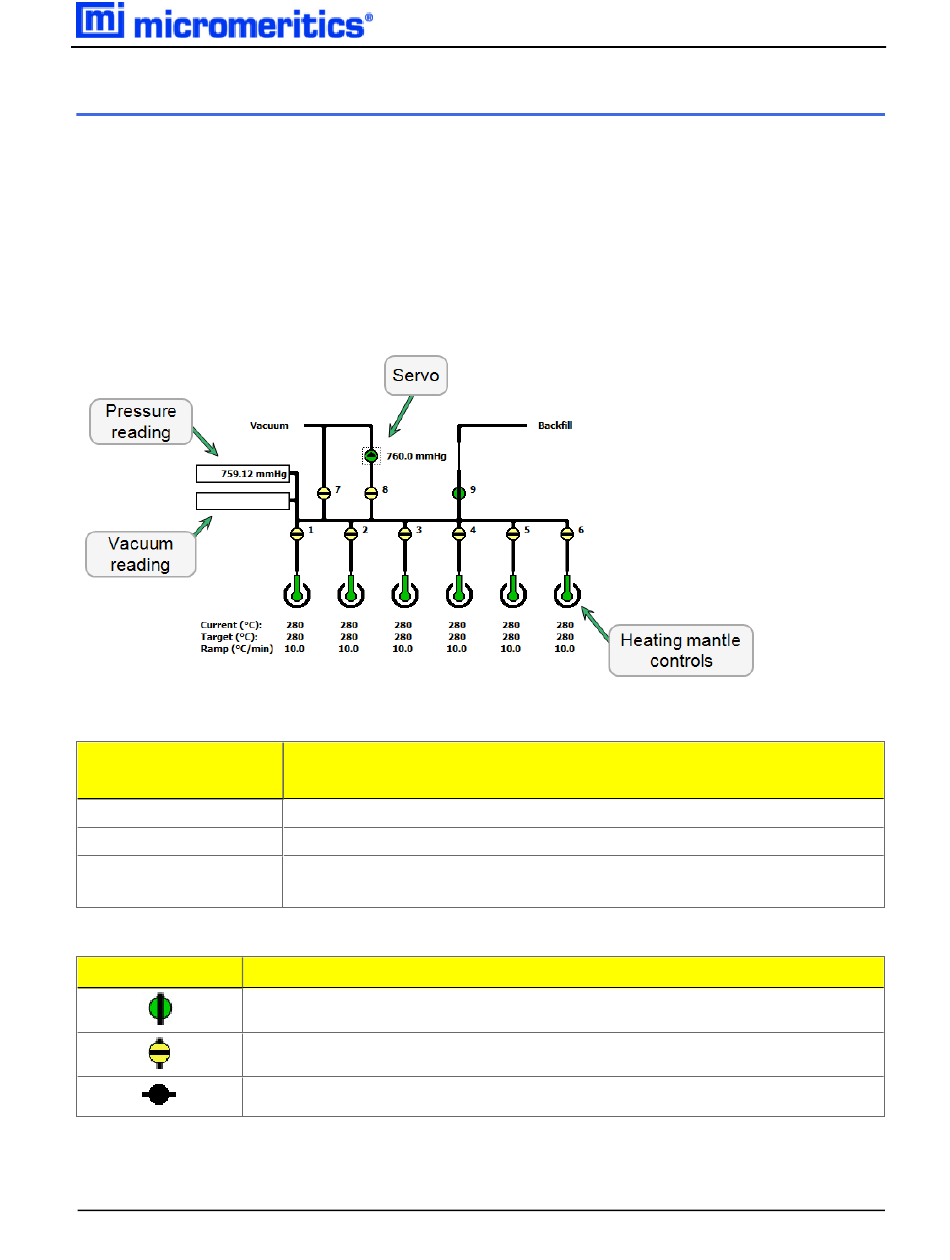

If the schematic is not immediately visible, go to
Smart VacPrep Schematic Components Table
Schematic
Components
1-6
7, 8, 9
Heating mantle con-
trols
Smart VacPrep Schematic Components Icon Table
Field or Button Description
Open Valve. Green indicates an open valve.
Closed Valve. Yellow indicates a closed valve.
Servo Valve. Closed.
Smart VacPrep Operator Manual — 067-42800-01
Dec 2013
