Performance Tool M656 Owner's Manual page 4

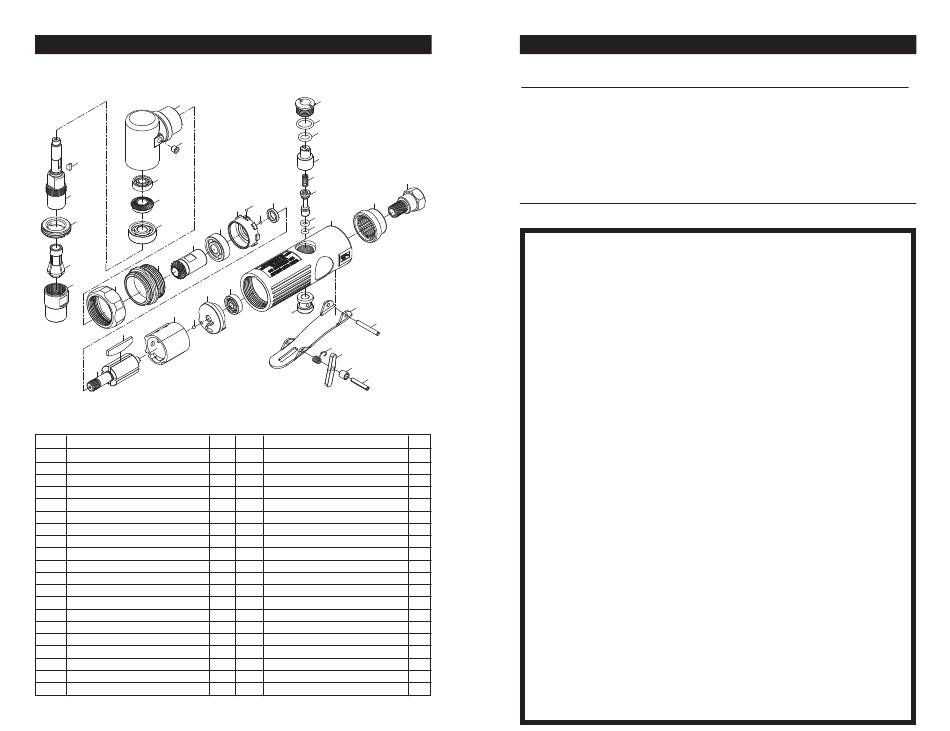

PARTS LIST
32
33
36
34
37
35
38
28
28
29
30
39
30
40
20
22
21
23
24
INDEX DESCRIPTION QTY INDEX
1 Housing
2 Muffle Cover
3 Hosing Adaptor
4 Trigger
5 Trigger Pin
6 Safety Pin
7 Fixed Ring
8 Safety
9 Spring
10 Valve Bushing
11 O-Ring
12 O-Ring
13 Valve Stem
14 Spring
15 Air Regulator
16 O-Ring
17 Nut O-Ring
18 Nut
19 Rear Bearing
20 Rear Cover
18
17
16
15
14
13
25
2
26
27
21
12 1
11
19
4
10
5
9
8
7
6
DESCRIPTION
1 21 Fixed Steel Ball
1 22 Cylinder
1 23 Rotor Blade
1 24 Rotor
1 25 Washer
1 26 Fixed Steel Ball
1 27 Front Cover
1 28 Front Bearing
1 29 Bevel Gear
1 30 Connect Nut
1 31 Clamp Nut
1 32 Angle Head
1 33 Grease Valve
1 34 Angle Bearing
1 35 Bevel Gear
1 36 Key
1 37 Drive Shaft
1 38 Fixed Nut
1 39 Collet
1 40 Collet Nut
TROUBLESHOOTING
INSUFFICIENT POWER:
Probable Cause
Dirty or clogged air passages ......... Flush and lubricate tool, drain air tank and supply line
Insufficient air supply ...................... Increase line pressure, Make sure compressor
Air leakage...................................... Use PTFE tape at all fittings and joints. Check tool for
Worn/damaged wear & tear parts ... Replace as necessary.
Tool matching ................................. Be sure you are using a tool suited for the torque
3
