5. Insert the red un-stripped conductor into a round hole in the IDC plug, as shown in Figure 3-10. Pinouts are defined in
Table 3-1. Table 3-1 defines the conductor colors.

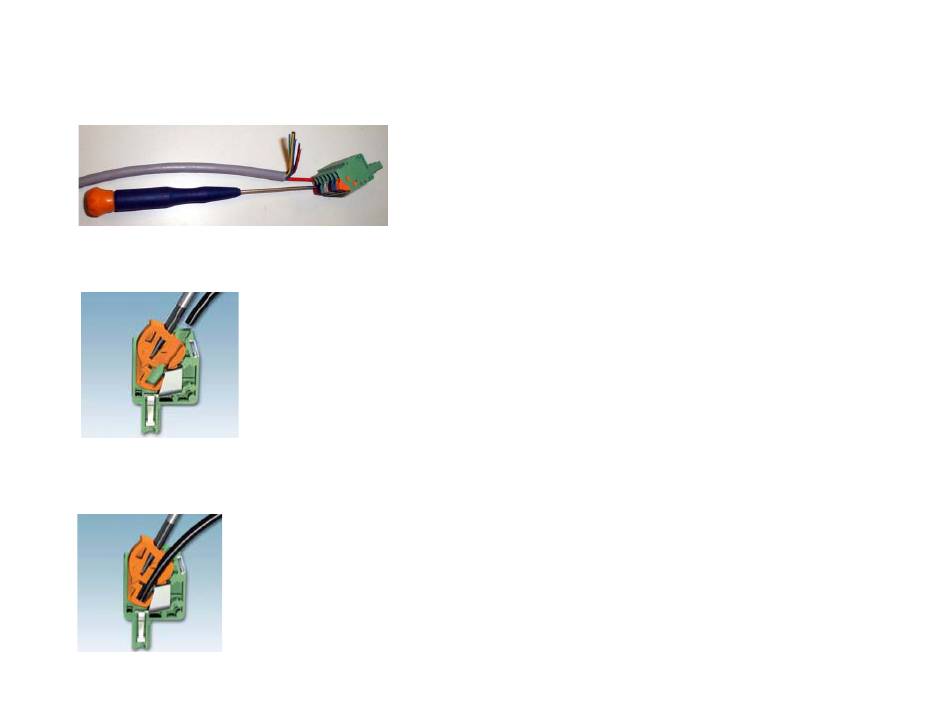

Figure 3-10: Unstripped Conductor Placement in Round Hole
6. Insert a flat-blade screwdriver into the rectangular hole in the IDC plug, as shown in Figure 3-10 and Figure 3-11.
Figure 3-11: Cut-away View of Connector and Flat Blade Screwdriver Inserted into Conductor
7. Rotate the IDC plug into position by using the leverage provided by the flat blade screwdriver. Rotate the contact until it
is fully seated, as shown in Figure 3-12.
Figure 3-12: Cut-away View of Connector Fully Seated Inserted into the Conductor
