1. Remove the connector from the inner electronics box if it is installed.

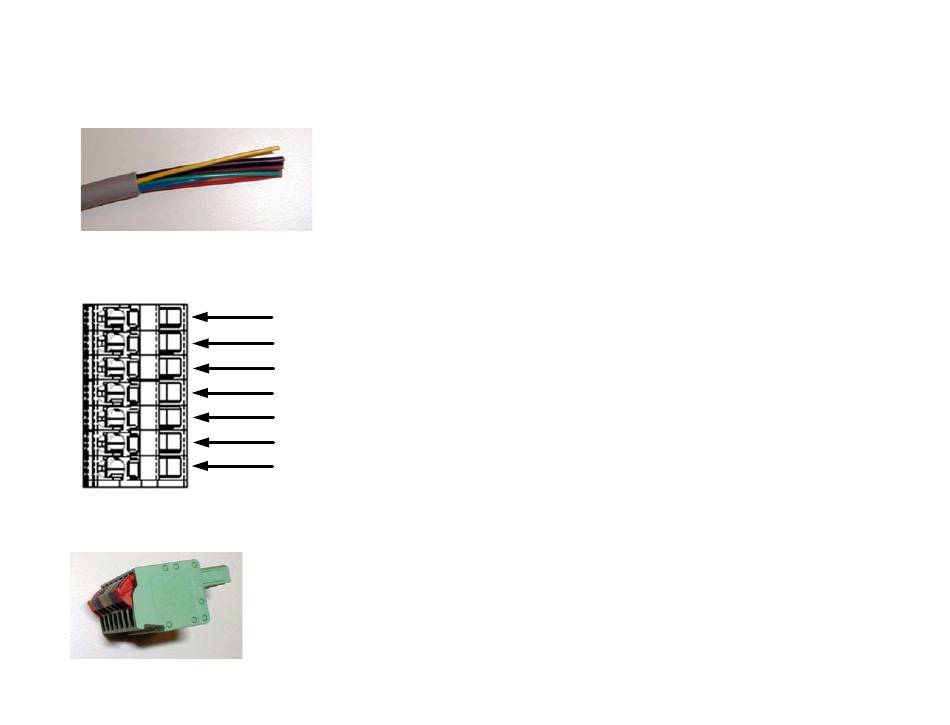

2. Prepare the cable by removing the outer jacket and cutting any strength members, as shown in Figure 3-8.
Figure 3-8: Cable with Outer Jacket Removed
3. Connect the conductors as appropriate for the power connector.
Table 3-1: Plug Color Coding
4. Raise the levers on all connections in the IDC plug as shown in Figure 3-9.
Figure 3-9: IDC Plug with Connectors Raised
Proprietary Information: Not for use or disclosure except by written agreement with Calix.
ORANGE - LOW BATTERY (BAT LOW)
BLUE - BATTERY MISSING (BAT MIS)
BROWN – REPLACE BATTERY (BAT REP)
GRAY – ON BATTERY (BAT ON)
GREEN – SIGNAL RETURN (SIG RTN)
BLACK – 12V Rtn
RED – 12V +ve
