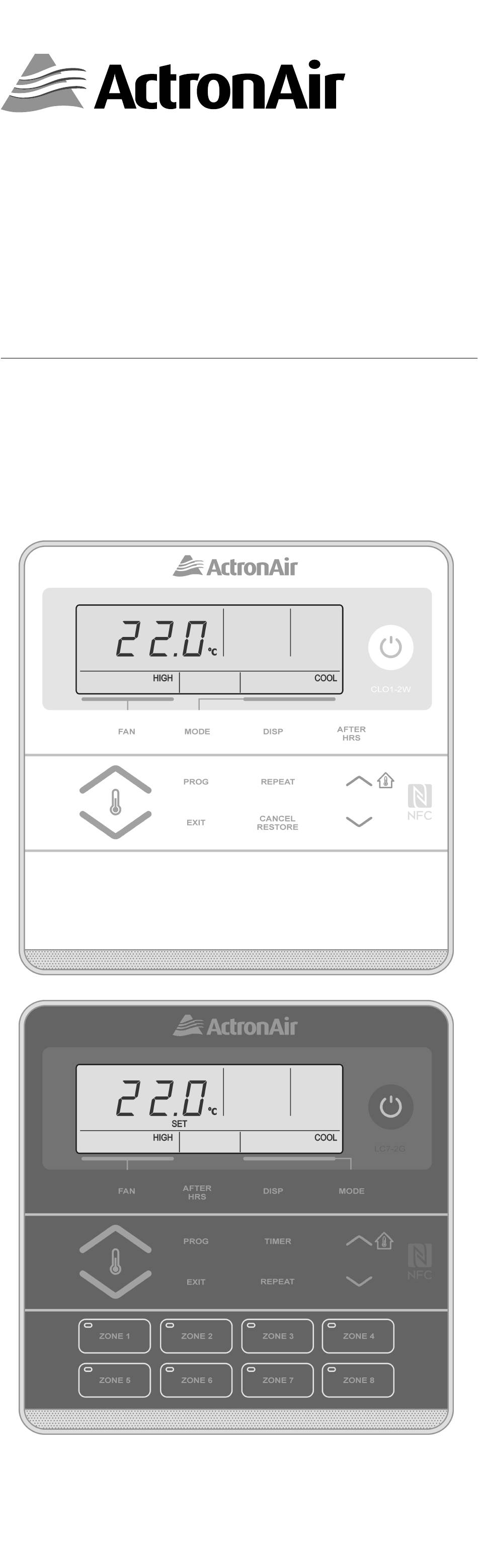

WALL
CONTROL
Operation Manual
Model Numbers
CL01-2W (White)
CL01-2G (Grey)
IMPORTANT NOTE:
Please read this manual carefully before installing or
operating your air conditioning unit.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CL01-2W and is the answer not in the manual?

Questions and answers

Related Manuals for ActronAir CL01-2W

Summary of Contents for ActronAir CL01-2W

  • Page 1 WALL CONTROL Operation Manual Model Numbers CL01-2W (White) CL01-2G (Grey) IMPORTANT NOTE: Please read this manual carefully before installing or operating your air conditioning unit.

  • Page 2: Table Of Contents

    Return to Home Page Operation Manual CL01-2 Wall Control Table of Contents 01. General Information ..........02. Waste Electrical and Electronic Equipment Disposal Guideline ....... 03. Maintenance ............04. Operational Precaution .......... 05. System Information ..........06. Features ..............07. Basic Operation .............

  • Page 3: General Information

    ActronAir accept liability for the correct operation of the final equipment/system. Your ActronAir air conditioning unit is one of the most advanced and innovative products in the market. Its operation is specified in the technical documentation supplied with the product or which can be downloaded from our website: www.actronair.com.
  • Page 4 (AWG24) Shielded Data Cable. • Storage conditions: -20 to 70 C, < 90% RH non- condensing • Operating conditions: -10 to 60 C, < 90% RH non-condensing NOTE Do not use ActronAir 4 Core Data Cable Part No. 4070-003. Page 4...

  • Page 5: Waste Electrical And Electronic

    6. Do not pull apart or attempt to service the control interface, should you need service to the device, contact ActronAir Service Department on 1800 119 229. 04. Operational Precautions Read all instructions in this manual before operating the air conditioning unit.

  • Page 6: System Information

    Return to Home Page Operation Manual CL01-2 Wall Control RETURN AIR FILTER: The air conditioner must never be operated without a return air filter as this will cause a build up of dust and other contaminants on the indoor coil. This is very difficult to clean and causes the system to operate inefficiently or even fail.

  • Page 7: Features

    Return to Home Page Operation Manual CL01-2 Wall Control 06. Features LCD Display The LCD displays the system mode, operation status and error codes. The LCD has a capability to enable and disable the backlight. This is useful during night time or in areas with poor lighting condition. In addition, the brightness of the LCD backlight is easily adjustable.

  • Page 8: Basic Operation

    Return to Home Page Operation Manual CL01-2 Wall Control 07. Basic Operation Operation Mode button Selects Auto/Heat/Cool Modes. Program button Sets the Clock and 7-Day Time Clock Events. Fan Control button Changes fan speed : High, Medium,Low (For Optional 3-Speed Fan only).
  • Page 9 Return to Home Page Operation Manual CL01-2 Wall Control NOTES The Wall control must be turned On before operating this procedure. 13 Day Indicator Display the day of the week when the time is shown and which day is selected for programming. 14 Time Clock Indicator 15 After Hours Indicator 16 Event Indicator...

  • Page 10: Turning Air Conditioner On/Off

    Return to Home Page Operation Manual CL01-2 Wall Control 08. Turning Air Conditioner On/Off NOTES • The air conditioning system will re-start on your last setting and operating mode, i.e. 22 C set temperature, Auto, Cool or Heat mode. • The display will show the Set Temperature, Fan Speed, Fan Mode and Mode of Operation.
  • Page 11 Return to Home Page Operation Manual CL01-2 Wall Control 08.03. Viewing Building /Outside Temperature To View Inside Building Temperature Press the button to view your inside building temperature. To View Outside Temperature Press the button to view your inside building temperature.
  • Page 12 Return to Home Page Operation Manual CL01-2 Wall Control To Turn-Off The Button Backlight 3. Press and hold the REPEAT button, then press and release the button. 4. Release the REPEAT button, the symbol will appear and the button backlight will turn On after 15 seconds.
  • Page 13 Return to Home Page Operation Manual CL01-2 Wall Control 2. Press the MODE button until HEAT appears on the display. 3. Set the desired temperature by pressing either buttons. NOTE • Maximum temperature setting is 30°C. • Minimum temperature setting is 16°C. •...
  • Page 14 Return to Home Page Operation Manual CL01-2 Wall Control 08.06.02. Fan Only Operation 1. Make sure the system is Off. 2. For 1-Speed Fan, press the FAN button. NOTE If Fan Speed is locked to 1-Speed Fan, CL01-2 will only allow MED speed. 3.
  • Page 15 Return to Home Page Operation Manual CL01-2 Wall Control 4. Press the buttons to adjust the minute. 5. Press the PROG button to enter the minute. Day indicator will be flashing, i.e. MON. 6. Press the buttons to adjust the day. 7.
  • Page 16 Return to Home Page Operation Manual CL01-2 Wall Control 2. While the lower limit is displayed, use the buttons to adjust the lower limit up or down. After 5 seconds the lower limit will be automatically accepted. You cannot adjust the lower limit above your current set-temperature.

  • Page 17: Day Programmable Function

    Return to Home Page Operation Manual CL01-2 Wall Control buttons to select ON (to 4. Press the enable Setback feature). 5. Press the EXIT button to enable Setback feature. button to get into menu 07 and 6. Press the then the PROG button to enter menu 07. 7.
  • Page 18 Return to Home Page Operation Manual CL01-2 Wall Control NOTES • The 7-Day Time Clock feature of the CL01-2 controller allows you to set the air conditioning system to turn on and turn off at different time for each day of the week.
  • Page 19 Return to Home Page Operation Manual CL01-2 Wall Control 1. Go to the day you wish to copy the programmed events and time. See Section 10.02. Setting the Programmable Time Clock. 2. Press the PROG button until you reach the day you wish to paste the copied programmed events and time.
  • Page 20 Return to Home Page Operation Manual CL01-2 Wall Control 09.05.02. Re-activating An Event 1. Press the PROG button repeatedly until the ON time for the event you wish to re-activate is displayed. 2. Press and release the CANCEL/RESTORE button. The event’s ON time will be displayed indicating the event is re-activated.

  • Page 21: After Hours

    Return to Home Page Operation Manual CL01-2 Wall Control 09.06.02. Re-activating the 7-Day Time Clock 1. Press the PROG button 2 times. TIME CLOCK and PROG indicators will be illuminated in the screen and OFF indicator will be flashing in the screen. button.

  • Page 22: Filter Timer

    Return to Home Page Operation Manual CL01-2 Wall Control 2. Press the buttons to adjust the After Hours run timer duration. The After Hours run timer duration can be adjusted by 0.5 hour increment. 3. Press the AFTER HRS button to lock-in your desired After Hours run timer duration.

  • Page 23: Dual Control Operation

    Control Interface Compatibility Matrix for Dual Control Combination Control Interface 1 Control Interface 2 Options Option 1 ActronAir CP05 or CP10 ActronAir CL01-2 Option 2 ActronAir CP05 or CP10 ActronAir CP05 or CP10 Option 3 ActronAir CL01-2 or CP05 or CP10 BMS Controller Page 23...

  • Page 24: Alarm Matrix

    Return to Home Page Operation Manual CL01-2 Wall Control 13. Alarm Matrix Indoor Board Fault Error Codes Alarm Description Type Alarm Condition Reset Condition Code Auxiliary Sensor No Sensor, Sensor Alarm Sensor OK Error (OC/SC) OC/SC Indoor Coil Sensor Error Alarm Coil Sensor OC/SC Sensor OK...
  • Page 25 Return to Home Page Operation Manual CL01-2 Wall Control Alarm Description Type Alarm Condition Reset Condition Code Multi Input 2 Alarm Input out of Range Input Normal Fault Outdoor Fan 1 Normal Alarm Not Operating Fault Operation Outdoor Fan 2 Normal Alarm Not Operating...

  • Page 26: Near Field Communication (Nfc) Tag

    4. Once the tag has successfully scanned the image 5. A pop-up window will appear to redirect you to below will appear. https://www.actronair.com.au/nfc 6. List of Controller Models will appear on the screen of your mobile device. Select the model number of your control to view the operation manual.

  • Page 27: Troubleshooting Guide

    Return to Home Page Operation Manual CL01-2 Wall Control 15. Troubleshooting Guide Condition Causes or Check Points Check that 5 minutes has passed from Turn-On time, as the The system system has in built timers. does not Check that setpoint temperature settings are correct. start Check that the setpoint temperature is set low enough for cooling or high enough for heating.
  • Page 28 ©Copyright 2019 Actron Engineering Pty Limited ABN 34 002767240. ®Registered Trade Marks of Actron Engineering Pty Limited. ActronAir is constantly seeking ways to improve the design of it’s products, therefore specifications are subject to change without notice. Document : 0525-080...
