COMMERCIAL AIR CONDITIONING SYSTEM
CONTROL INTERFACE
Operating Instructions
Model Number
CP05
(Supplied as Standard)
Model Number
CP10
(Optional)
Please Read This Manual
Congratulations on your purchase of an
ActronAir air conditioning system. This unit
has been designed and manufactured with
the highest quality standard in mind.
Please read this manual thoroughly and keep
it near the unit for future reference.
This manual is a controlled document which contains confidential and proprietary information.
Distribution, modification, copying and/or reproduction are prohibited without written consent from ActronAir.
®
Copyright © 2016 Actron Engineering Pty. Ltd. All rights reserved.
Prg
Esc
Advertisement
Table of Contents
Related Manuals for ActronAir CP05
Summary of Contents for ActronAir CP05
- Page 1 Copyright © 2016 Actron Engineering Pty. Ltd. All rights reserved. This manual is a controlled document which contains confidential and proprietary information. Distribution, modification, copying and/or reproduction are prohibited without written consent from ActronAir.
-
Page 2: Table Of Contents
Alarm History ..................... 29 Additional Features Alarm Matrix ........................ 31 Troubleshooting Guide ....................32 Maintenance ........................ 33 System Information ..................... 34 Operation Manual - (CP05 / CP10) Commercial Control Interface Doc. No. 0525-031 Ver. 3 190308... -
Page 3: General Information
ActronAir accept liability for the correct operation of the final equipment / system. Your ActronAir air conditioning unit is one of the most advanced & innovative products in the market. Its operation is specified in the technical documentation supplied with the product or which can be downloaded from our website: www.actronair.com.au. -
Page 4: Storage & Operating Conditions
• The product, particularly the controlling devices, must be stored and installed in a location that complies with the temperature and humidity limits specified in this manual. ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without prior notice. Please check with your ActronAir Technical Support Department on toll free number: 1800 119 229. -
Page 5: Safety And Operational Precautions
9. WH&S rules and regulations must be observed and will take precedence during installation process. 10. Only use this wall controller with an ActronAir air conditioner as described in this operating manual. OPERATIONAL PRECAUTIONS ACCESS PANELS AND GUARDS: NEVER remove any access panels or guards as this could cause injury from electric shock and burns from extremely hot components. -
Page 6: Advanced Features
In the unlikely event that a fault develops with the air conditioner the control system will diagnose the fault (where possible) and display a date & time stamped fault log, with up to 100 events memory. Operation Manual - (CP05 / CP10) Commercial Control Interface Doc. No. 0525-031 Ver. 3 190308... -

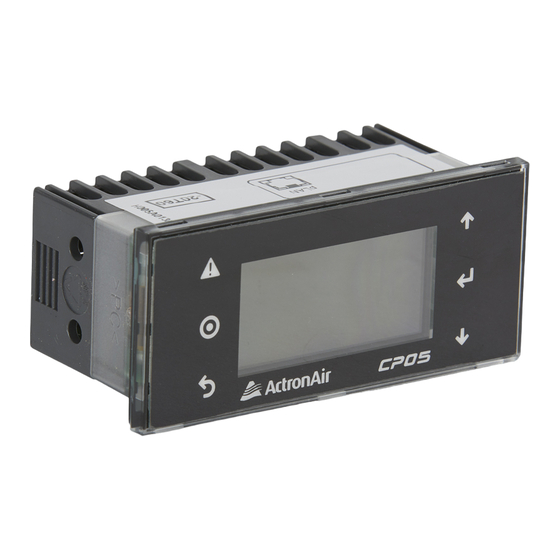

Page 7: Control Interface Functions
(Dark Filled arrow indicates ON) IMPORTANT NOTES CP05 and CP10 are two identical control interfaces with the same display and functions. The only differences are the interface buttons and front case appearances. CP05 is supplied as standard, while CP10 is supplied as optional control interface for commercial range air conditioning systems. -
Page 8: Initialisation Displays - Status Indications
Displays for two compressors & reversing valves are shown above for illustration purposes only. The number of compressors / reversing valves displayed will depend on the air conditioning system model. Operation Manual - (CP05 / CP10) Commercial Control Interface Doc. No. 0525-031 Ver. 3 190308... -
Page 9: Defrost Operation Indications
Operation Comp Rev Vlv Comp Rev Vlv ActronAir is constantly seeking ways to improve the design of it’s products, therefore specifications are subject to change without notice. Please check prior to purchase. ® Copyright © 2016 Actron Engineering Pty. Ltd. -
Page 10: Menu Tree Diagram (Consumer / End User Menu)
Log 3 - Recent Alarm Day Light Saving Time 7 Days Schedule UP TO After Hours Duration Setting Special Days Setting Log 100 - Recent Alarm Reset Alarm Log Operation Manual - (CP05 / CP10) Commercial Control Interface Doc. No. 0525-031 Ver. 3 190308... -
Page 11: Sub-Menu Level Descriptions
NOTE: Only up to level 6 covered by this manual are accessible by the end user. ActronAir is constantly seeking ways to improve the design of it’s products, therefore specifications are subject to change without notice. Please check prior to purchase. -
Page 12: Turn Unit On / Off Via Control Interface
On / Off Unit Main Menu FAN ONLY FAN ONLY A. On / Off Unit B. Setpoint C. Mode of Operation Step 8 Step 9 Operation Manual - (CP05 / CP10) Commercial Control Interface Doc. No. 0525-031 Ver. 3 190308... -
Page 13: Backlight
C. Mode of Operation Step 5 Step 6 Step 7 ActronAir is constantly seeking ways to improve the design of it’s products, therefore specifications are subject to change without notice. Please check prior to purchase. ® Copyright © 2016 Actron Engineering Pty. Ltd. -
Page 14: Setting Room Temperature Setpoint
C. Mode of Operation Step 5 Step 6 Step 7 Main Menu A. On / Off Unit B. Setpoint C. Mode of Operation Step 7 Operation Manual - (CP05 / CP10) Commercial Control Interface Doc. No. 0525-031 Ver. 3 190308... -
Page 15: Setting The Temperature Setback
18.0 Step 7 Step 8 Step 9 ActronAir is constantly seeking ways to improve the design of it’s products, therefore specifications are subject to change without notice. Please check prior to purchase. ® Copyright © 2016 Actron Engineering Pty. Ltd. -
Page 16: Operation Mode
TO RETURN TO THE MAIN MENU 13. Keep pressing “ ” (Escape / Return) Button until you get to the Main Menu screen. Otherwise press “ ” Button. Operation Manual - (CP05 / CP10) Commercial Control Interface Doc. No. 0525-031 Ver. 3 190308... - Page 17 Step 13 For Optional 3 Speed Fan Operation, when applicable (See Display Progression Step 3A above). ActronAir is constantly seeking ways to improve the design of it’s products, therefore specifications are subject to change without notice. Please check prior to purchase.
-
Page 18: Setting The Clock
22 / 09 / 15 Hour: 10:27 Hour: 10:28 Hour: 10:28 Hour: 10:28 Enable Scheduler: Enable Scheduler: Enable Scheduler: Enable Scheduler: Step 7 Step 8 Step 9 Operation Manual - (CP05 / CP10) Commercial Control Interface Doc. No. 0525-031 Ver. 3 190308... - Page 19 “ ” or “ ” Button to toggle on the D. Clock / Scheduler sub-menu functions. ActronAir is constantly seeking ways to improve the design of it’s products, therefore specifications are subject to change without notice. Please check prior to purchase.
-
Page 20: Daylight Saving Time Enable
--- --- --- --- .00 in --- --- --- --- .00 in --- --- --- --- .00 Step 7 Step 8 Step 9 (January) Step 9 (October) Operation Manual - (CP05 / CP10) Commercial Control Interface Doc. No. 0525-031 Ver. 3 190308... - Page 21 “ ” or “ ” Button to toggle on the D. Clock / Scheduler sub-menu functions. ActronAir is constantly seeking ways to improve the design of it’s products, therefore specifications are subject to change without notice. Please check prior to purchase.
-
Page 22: Daylight Saving Time Disable
Button to toggle on the D. Clock / Scheduler sub-menu functions. 2. The programmed Day Light Saving Time parameters will be retained until next time Day Light Saving Time is enabled. Operation Manual - (CP05 / CP10) Commercial Control Interface Doc. No. 0525-031 Ver. 3 190308... -
Page 23: 7- Day Programming
Step 9 Step 10 (6:01) Step 10 (6:59) ActronAir is constantly seeking ways to improve the design of it’s products, therefore specifications are subject to change without notice. Please check prior to purchase. ® Copyright © 2016 Actron Engineering Pty. Ltd. - Page 24 The unit will then start at 4:00AM on Monday and will end at 3:58AM on Tuesday and the Event 2 for Monday will be ignored even if it is set. Operation Manual - (CP05 / CP10) Commercial Control Interface Doc. No. 0525-031 Ver. 3 190308...
-
Page 25: After Hour Timer
3. Refer After Hours wiring details in wiring diagram provided in the unit's electrical panel, before enabling this function. ActronAir is constantly seeking ways to improve the design of it’s products, therefore specifications are subject to change without notice. Please check prior to purchase. -
Page 26: Programmable Special Days
Button to toggle all of the "Clock Schedule" sub-menu functions. 2. To Turn-Off any Special Days, simply set the "Day" to "0", this will then disable the selected Special Day. Operation Manual - (CP05 / CP10) Commercial Control Interface Doc. No. 0525-031 Ver. 3 190308... - Page 27 NOTE: The 365-Day 12 special days programmed events will override the 7-Day programmed events. ActronAir is constantly seeking ways to improve the design of it’s products, therefore specifications are subject to change without notice. Please check prior to purchase. ®...
-
Page 28: Status
A / Hours Input : On E. Status Step 5 Step 6 Step 7 Main Menu A. On / Off Unit B. Setpoint C. Mode of Operation Step 7 Operation Manual - (CP05 / CP10) Commercial Control Interface Doc. No. 0525-031 Ver. 3 190308... -
Page 29: Alarm History
& void. ActronAir is constantly seeking ways to improve the design of it’s products, therefore specifications are subject to change without notice. Please check prior to purchase. - Page 30 A. On / Off Unit Reset alarm log : Reset alarm log : E. Status B. Setpoint C. Mode of Operation F. Alarm History Step 10 Step 11 Operation Manual - (CP05 / CP10) Commercial Control Interface Doc. No. 0525-031 Ver. 3 190308...
-
Page 31: Alarm Matrix
& void. ActronAir is constantly seeking ways to improve the design of it’s products, therefore specifications are subject to change without notice. Please check prior to purchase. -
Page 32: Troubleshooting Guide
On and NOTE: Before contacting your installer for further assistance, please have your airconditioner's Model No. and Serial No, with you. (See page 35). Operation Manual - (CP05 / CP10) Commercial Control Interface Doc. No. 0525-031 Ver. 3 190308... -
Page 33: Maintenance
• Perform general maintenance inspections. required. • Perform scheduled start-up checks. ActronAir is constantly seeking ways to improve the design of it’s products, therefore specifications are subject to change without notice. Please check prior to purchase. ® Copyright © 2016 Actron Engineering Pty. Ltd. -
Page 34: System Information
Event 2 Day 1 Day 7 Day 2 Day 8 Day 3 Day 8 Day 4 Day 10 Day 5 Day 11 Day 6 Day 12 Operation Manual - (CP05 / CP10) Commercial Control Interface Doc. No. 0525-031 Ver. 3 190308... - Page 35 The air conditioner model and serial number is situated on the side panel of the unit’s bottom left corner, near the compressor compartment. Date Installed : ActronAir is constantly seeking ways to improve the design of it’s products, therefore specifications are subject to change without notice. Please check prior to purchase. ®...
- Page 36 1800 119 229 www.actronair.com.au Refrigerant Trading Authorisation No.: AU06394 Actron Engineering Pty Ltd ABN 34 002 767 240 Printed in Australia HEAD OFFICE SYDNEY AUSTRALIA Part No. 0525-031 Copyright © 2016 Actron Engineering Pty. Ltd. Ver. 3 190308...
