COMMERCIAL
AIR CONDITIONING SYSTEM
CONTROL INTERFACE
Operating Instructions

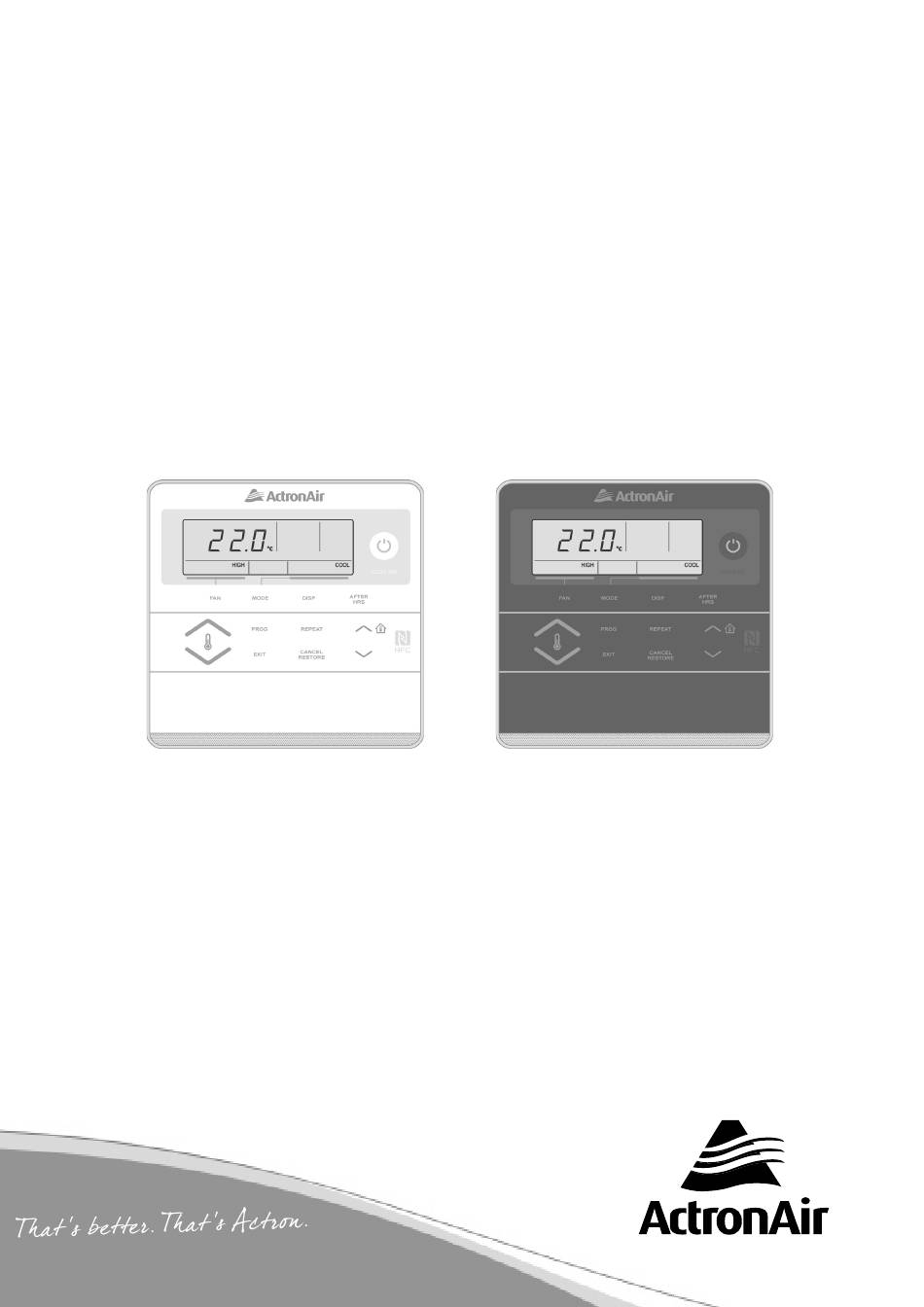

Control Interface
Model Number
CL01-2W (White)
CL01-2G (Grey)
IMPORTANT NOTE:
Please read this manual carefully before installing or operating your air conditioning unit.
1
AVAILABLE AS AN OPTIONAL ACCESSORY
FOR TRI-CAPACITY MODELS ONLY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CL01-2W and is the answer not in the manual?

Questions and answers

Related Manuals for ActronAir CL01-2W

Summary of Contents for ActronAir CL01-2W

  • Page 1 COMMERCIAL AIR CONDITIONING SYSTEM CONTROL INTERFACE Operating Instructions Control Interface AVAILABLE AS AN OPTIONAL ACCESSORY Model Number FOR TRI-CAPACITY MODELS ONLY CL01-2W (White) CL01-2G (Grey) IMPORTANT NOTE: Please read this manual carefully before installing or operating your air conditioning unit.

  • Page 2: Table Of Contents

    Operation Manual CL01-2 Wall Controller Table of Contents 01. General Information ......................3 02. Waste Electrical and Electronic Equipment Disposal Guidelines ..........4 03. Maintenance .........................4 04. Safety Precautions .........................4 05. Operational Precautions ......................5 06. System Information ....................... 5 07. Features ..........................6 08.

  • Page 3: General Information

    100% functional product testing. However, ActronAir cannot guarantee that all the aspects of the product and the software included with the product respond to the requirements of final application, despite the product being developed according to state of the art technology. The customer, both end user/specifier and installer, assume all liability and risks relating to the configuration of the product in order to reach the expected results in relation to the specific design and system installation.

  • Page 4: Waste Electrical And Electronic Equipment Disposal Guidelines

    8. WH&S rules and regulations must be observed and will take precedence during installation process. 9. Only use this control interface with an ActronAir air conditioner as described in this operating manual. Operation Manual - CL01-2 Wall Controller...

  • Page 5: Operational Precautions

    Operation Manual CL01-2 Wall Controller 05. Operational Precautions ACCESS PANELS AND GUARDS: NEVER remove any access panels or guards as this could cause injury from electric shock and burns from extremely hot components. Never allow any bodily parts such as fingers or objects to protrude through the fan guards or any other opening as they could cause personal injury and damage the air conditioner.

  • Page 6: Features

    Operation Manual CL01-2 Wall Controller 07. Features LCD Display The LCD displays the system mode, operation status and error codes. The LCD has a capability to enable and disable the backlight. This is useful during night time or in areas with poor lighting condition. In addition, the brightness of the LCD backlight is easily adjustable.

  • Page 7: Basic Operation

    Operation Manual CL01-2 Wall Controller 08. Basic Operation 08.01. Control Interface Functions Operation Mode button After Hours button Selects Auto/Heat/Cool Modes. To activate After Hours function. Fan Control button Repeat button Changes fan speed : High, Medium,Low Repeats the previous settings for the (For Optional 3-Speed Fan only).
  • Page 8 Operation Manual CL01-2 Wall Controller NOTE The Wall Controller must be turned On before operating this procedure. Medium Speed Fan Indicator * Day Indicator Display the day of the week when the time is shown High Speed Fan Indicator * and which day is selected for programming.

  • Page 9: Turning Air Conditioner On/Off

    Operation Manual CL01-2 Wall Controller 09. Turning Air Conditioner On/Off NOTES • The air conditioning system will re-start on your last setting and operating mode, i.e. 22 C set temperature, Auto, Cool or Heat mode. • The display will show the Set Temperature, Fan Speed, Fan Mode and Mode of Operation. 09.01.

  • Page 10: Viewing Building /Outside Temperature

    Operation Manual CL01-2 Wall Controller 09.03. Viewing Building /Outside Temperature To View Inside Building Temperature Press the button to view your inside building temperature. To View Outside Temperature Press the button to view your inside building temperature. 09.04. Backlight To Adjust The Level Of LCD Backlight Brightness 1.

  • Page 11: Cooling And Heating Operation

    Operation Manual CL01-2 Wall Controller 09.05. Cooling and Heating Operation 09.05.01. Cooling Operation 1. Make sure the CL01-2 is turned On. 2. Press the MODE button until COOL appears on the display. 3. Set the desired temperature by pressing either the buttons.

  • Page 12: Auto And Fan Only Operation

    Operation Manual CL01-2 Wall Controller 4. Adjust the desired Indoor Fan speed by pressing the FAN button. NOTE LOW, MED or HIGH Fan Speed can only be selected if 3-Speed Fan setting option is available. Otherwise only MED is available. IMPORTANT NOTE When the system is On, the Indoor Fan can run continuously and is indicated by the CONT indicator on LCD.

  • Page 13: Setting The Clock

    Operation Manual CL01-2 Wall Controller 09.06.02. Fan Only Operation 1. Make sure the system is Off. 2. For 1-Speed Fan, press the FAN button. NOTE If Fan Speed is locked to 1-Speed Fan, CL01-2 will only allow MED speed. 3. For 3-Speed Fan, adjust the Indoor Fan speed (LOW, MED and HIGH) by pressing the FAN button successively until you reach the desired speed.

  • Page 14: Setting The Upper And Lower Temperature Limits

    Operation Manual CL01-2 Wall Controller 7. Press the PROG button to enter the set time/day and then press EXIT button to exit the set up procedure. 8. Press the DISPLAY button to make sure that you set the time and day correctly. NOTES •...

  • Page 15: Temperature Set Back

    Operation Manual CL01-2 Wall Controller 09.09. Temperature Set Back Normally, the air conditioning system is turned Off at unoccupied times or at night. The building temperature can get quite hot (e.g. 30 C) or quite cold (e.g. 12 C). When you turn on the air conditioning system, it takes a long time to achieve a comfortable temperature (e.g.

  • Page 16: Day Programmable Function

    Operation Manual CL01-2 Wall Controller 10. 7-Day Programmable Function 10.01. Time Clock Operation NOTES • The 7-Day Time Clock feature of the CL01-2 controller allows you to set the air conditioning system to turn on and turn off at different times for each day of the week. •...

  • Page 17: Repeating Day's Events And Times

    Operation Manual CL01-2 Wall Controller 10.03. Repeating Day’s Events and Times This feature allows you to automatically repeat the previous days, events, and times, into the succeeding days, therefore eliminating the need to re-enter the events and times into the succeeding days. 1.

  • Page 18: De-Activating /Re-Activating The 7-Day Time Clock

    Operation Manual CL01-2 Wall Controller 10.05.02. Re-activating An Event 1. Press the PROG button repeatedly until the ON time for the event you wish to re-activate is displayed. 2. Press and release the CANCEL/RESTORE button. ON time will be displayed indicating the The event’s event is re-activated.

  • Page 19: After Hours

    Operation Manual CL01-2 Wall Controller 2. Press the button. TIME CLOCK and PROG indicators are still illuminated. ON indicator will be flashing in the screen, replacing OFF. 3. Press the EXIT button. TIME CLOCK indicator will re-appear in the screen, indicating that the Time Clock has been re-activated.

  • Page 20: Filter Timer

    Operation Manual CL01-2 Wall Controller 12. Filter timer Setting The Filter Timer 1. Press and hold the FAN button. Press the PROG button and release them altogether Menu 01 will be displayed with PROG indicator flashing. 2. Press the button repeatedly until menu number 03 is displayed. 3.

  • Page 21: Dual Control Operation

    Control Interface 2 Option 1 ActronAir CP05 or CP10 ActronAir CL01-2 Option 2 ActronAir CP05 or CP10 ActronAir CP05 or CP10 Option 3 ActronAir CL01-2 or CP05 or CP10 BMS Controller Operation Manual - CL01-2 Wall Controller Document: 0525-081 Ver. 1 190903...

  • Page 22: Alarm Matrix

    Operation Manual CL01-2 Wall Controller 14. Alarm Matrix INDOOR BOARD FAULT ERROR CODES Alarm Code Description Type Alarm Condition Reset Condition Auxiliary Sensor Error (OC/SC) Alarm No Sensor, Sensor OC/SC Sensor OK Indoor Coil Sensor Error (OC/SC) Alarm Coil Sensor OC/SC Sensor OK Over Current Input out of Range...
  • Page 23 Operation Manual CL01-2 Wall Controller CM100 FAULT ERROR CODES Alarm Code Description Type Alarm Condition Reset Condition All Other Alarms Alarm Various Alarms Normal Condition (See CP05 or CP10 for details) Probe 1 Fault Alarm Configuration Error Correct Set up (CM100 Internal Error) ID Coil Sensor 1 Fault Alarm...
  • Page 24 Operation Manual CL01-2 Wall Controller CM100 FAULT ERROR CODES Alarm Code Description Type Alarm Condition Reset Condition Compressor 2 HP Fault Alarm Compressor 2 High Pressure Normal Pressure Compressor 3 HP Fault Alarm Compressor 3 High Pressure Normal Pressure Compressor 1 LP Fault Re-cycle Power and Alarm 3 Trips within 1 Hour...

  • Page 25: Near Field Communication (Nfc) Tag

    5. A pop-up window will appear to redirect you to below will appear. https://www.actronair.com.au/nfc 6. List of Controller Models will appear on the screen of your mobile device. Select the model number of your controller to view the operation manual. The Model number of your controller can be found underneath the Power On/Off button of the controller.

  • Page 26: Android Users

    NFC. 4. Once successfully scanned, a pop-up window will appear to redirect you to external website. https://www.actronair.com.au/nfc 5. List of Controller Models will appear on the screen of your mobile device. Select the model number of your controller to view the operation manual. The Model number of your controller can be found underneath the Power On/Off button of the controller.

  • Page 27: Troubleshooting Guide

    Operation Manual CL01-2 Wall Controller 16. Troubleshooting Guide Condition Causes or Check Points Check that 5 minutes has passed from Turn-On time, as the system has in built timers. Check that setpoint temperature settings are correct. The system does not start Check that the setpoint temperature is set low enough for cooling or high enough for heating.

  • Page 28: Document: 0525-081 Ver. 1

    Operation Manual CL01-2 Wall Controller Recommended Actions/ Condition Probable Cause Checkpoints Check the pressures and the temps for suction and discharge. System low on refrigerant. Evaporator coil freezes up during low Check the ID fan speed through the Control System low on airflow. ambient operation Interface.
  • Page 29 THIS PAGE WAS INTENTIONALLY LEFT BLANK...
  • Page 30 ©Copyright 2019 Actron Engineering Pty Limited ABN 34 002767240. ®Registered Trade Marks of Actron Engineering Pty Limited. ActronAir is constantly seeking ways to improve the design of it’s products, therefore specifications are subject to change without notice. Document: 0525-081 Ver. 1 Issue Date: 09/2019...
