Summary of Contents for Tach-It 6500 TL

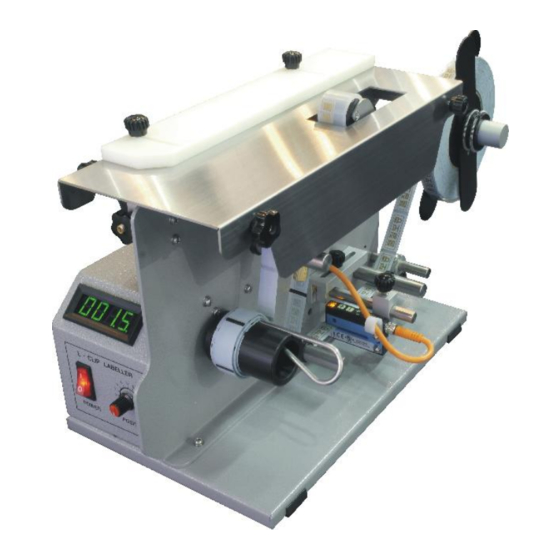

- Page 1 L-CLIP LABELLER MODEL : #6500_TL USER’S MANUAL OPERATION, MAINTENANCE AND TROUBLE SHOOTING...
- Page 2 -EXTERNAL VIEW (3) ROLL GUIDE INSIDE (1)UPPER PLATE (5) SPRING ROLL GUIDE (1-1)UPPER PLATE STOPPER (2) ROLL HANGER (4) ROLL GUIDE OUTSIDE (10-1) U-PIN (7) SENSOR (9)SHAFT SPECIFICATION · LABEL SIZE - MAX: 40(W)× 40(L)MM MIN: 20(W)× 20(L)MM · LABEL ROLL MAX: Ø 250MM ·...
- Page 3 (19) DURABLE POWER (14) CONTROL BOX (15) AC INLET (13) SILICON ROLLER (17)LABEL ROLLER TENSION ADJUSTING BOLT (18)MICRO S/W(START) (20)COUNTER...
- Page 4 - CONTROL Reset Button : When you reset count, push long about 5 seconds. Count Volume for Label length you can adjust Label length. (16) POWER S/W However you have to think which point will be half of Label. Because most of customer want just half on first and another half on next face.
- Page 5 - LABEL SETTING PROCEDURE 1. Open (1)upper plate undoing (1)upper plate stopper. 2. Loosen thumb screw and slide outside roll guide(4) out of roll hanger(2). 3. Push label roll into roll hanger(2). Make sure label is on top. 4. Thread leading end of label between press rubber(6) and dispensing plate(8). 5.
- Page 6 - NOTICE · DISCONNECT FROM POWER SUPPLY WHEN CARRYING OUT ANY MAINTENANCE. CLEAN 1. DO NOT-SPRAY OR SPLASH FLUIDS OVER MACHINE. 2. DO NOT-REMOVE OR ADJUST THE FACTORY PRESET PEEL PLATE. 3. DO-KEEP ALL SURFACES CLEAN. SPECIALLY CLEAN UNDER THE PRESS POLY-URETHAN. LABEL 4.
- Page 7 - Electric Diagram...
