b. Locate the battery socket by pulling down the pre-cut corner
section on the black insulator shield and slide battery with (+)
terminal facing out, up into the battery socket
5. To mount the KeySecure 6 to the bracket, follow the instructions
included with the mounting bracket:
a. Do not place washers under the hardware inside back cover
6. If mounting without a bracket (NOT RECOMMENDED):
a. Use 1/4" - 20 Grade 8 Hex Head hardware for mounting
b. Max hardware head height of 0.188"
c. Do not place washers under hardware inside back cover
7. Reinstall KeySecure on back cover, top first.
8. Hook unit onto back plate and insert the two provided #10-32 x
2" socket cap screws and tighten to snug. Be aware of coin cell
battery location when hooking unit onto back plate.
9. Reinstall and tighten tech-lock and tech lock cover.
10. Attach antenna to male connector on top right side of unit.
11. Wire device's power pigtail to 18 AWG (minimum), wire
from vehicle power source and ground using crimp-on butt
connectors and heat shrink provided.
12. Plug pigtail connector into power port on rear of KeySecure.
NOTE: Amber LED lights will flash five times to indicate the unit is
powered. Keypad backlight will illuminate and LED lights will blink if
no key is installed. If LEDs do not flash, check KnoxConnect key port
disabled setting.
13. Restore power and insert keys and rotate key or close the latch
to secure.
NOTES:
• KeySecure can be configured for Internet access before or after
installation. To configure the KeySecure for network access, see the
Knox Networking Guide by logging into your portal at knoxbox.com
or contact Knox Technical Support.
• To reset the KeySecure, press and hold the arrow key (return key) for
10 seconds. Release after LEDs and the keypad backlight
turn off.
• The Coin cell battery is replaceable with a CR1225.
• Contact Knox Technical Support for assistance at (800) 552-5669
To access additional KeySecure techincal documents, log into your
account at Knoxbox.com.
FCC NOTICE:
This device complies with Part 15 of FCC Rules. The operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
Any changes or modifications could void the user's authority to operate the equipment.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
This Device Contains: FCC ID: 2AOVI-KNOX-RAS, IC: 23479-KNOXRAS.
1601 W. DEER VALLEY RD. PHOENIX, AZ 85027
©Knox Company. All rights reserved.
QUICK START INSTALLATION GUIDE
|
T.
800-552-5669
|
F.
623-687-2290
KEYSECURE® 6

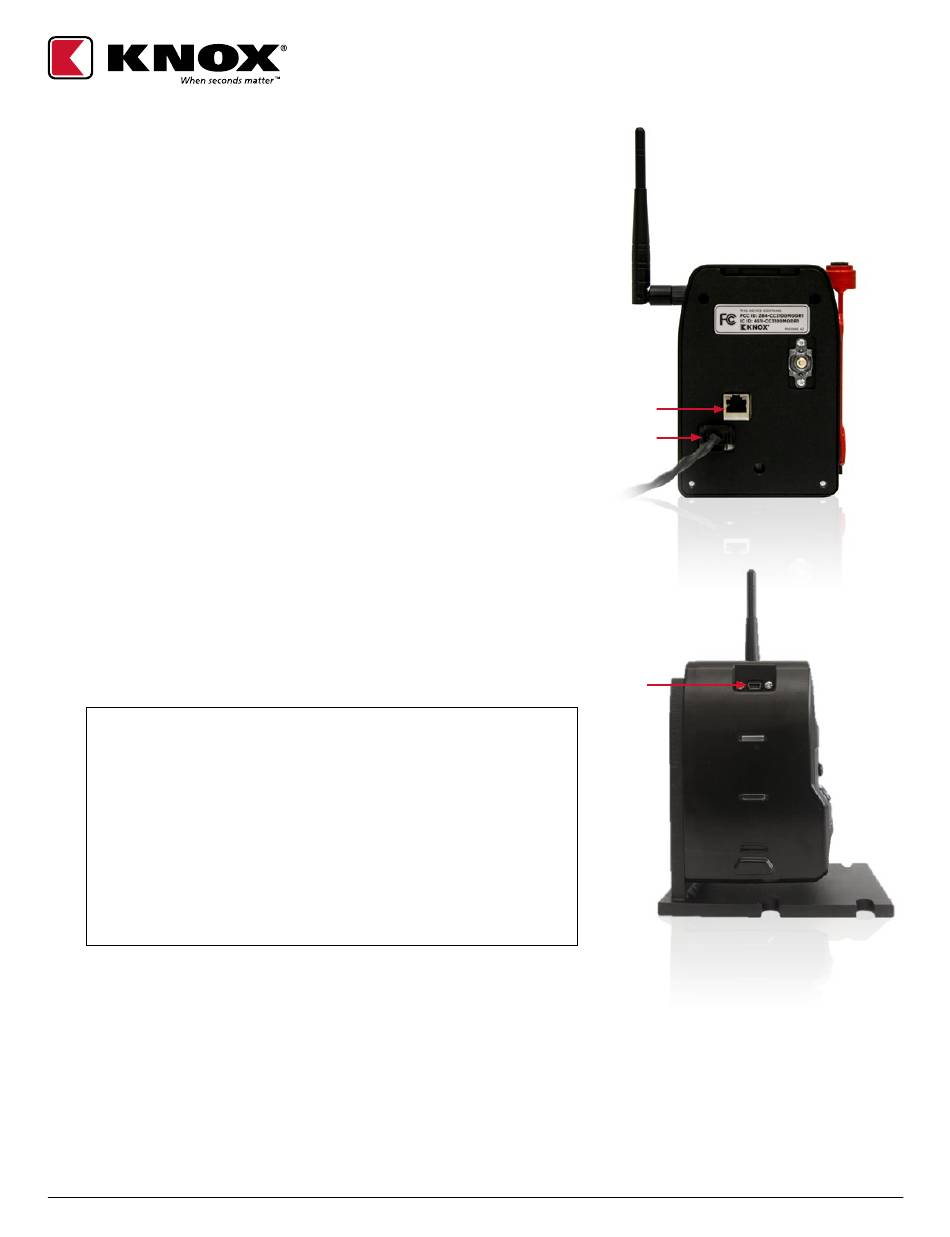

Ethernet
