Contents
• KeySecure 6
• Security screw wrench for technician access lock (tech-lock)
• Wiring pigtail crimp connectors and heat shrink
• WiFi antenna
• 3V Lithium coin cell battery
• USB cable
2
Tools Required
• 1/16" Allen wrench
• 5/32" Allen wrench
• Hand crimper
3
Bracket Mounts
(optional)
• 60˚ or 90˚ bracket (sold separately)
• Flat-mount bracket (sold separately)
NOTE: See instructions shipped with your specific bracket for
additional details, or access the technical documentation in
the FD Portal at KnoxBox.com.
4
Getting Started
1. Ensure vehicle and KeySecure are powered down before beginning
installation, and observe safe practices when working with power and
electrical components.
2.
IMPORTANT: The Keysecure 6 requires continuous power to charge the
Knox eKey. Do not use a power source controlled by the ignition switch.
3. Use min 18AWG to connect device to power.
4. KeySecure 6K-2 requires 7A @ 12VDC max power or use Model
KSM-200AC AC/DC transformer with a 120VAC wall outlet.
5. Do not insert keys until the KeySecure 6 is powered. The mechanical
key will be locked in place until power and a valid PIN code is used.
5
Installation Instructions
1. Remove technician access lock (tech-lock):
a. Using security screw wrench, remove two security screws
from tech-lock cover by turning counterclockwise
b. Remove tech-lock cover plate
c. Insert tech-key into tech-lock and turn counterclockwise
until lock is loosened and remove lock
2. Using 5/32" Allen wrench, remove two mounting bolts on
either side of unit by turning counterclockwise.
3. Rotate bottom out, then lift unit up and off of the back cover.
NOTE: Back cover should easily remove. Do not force.
If needed, call technical support for assistance.
4. Install Battery (Battery included with shipment):
a. On back of unit, locate the battery socket in the upper
right corner beneath the black insulator shield
NOTE: To remove old battery, use a 1/16" Allen wrench to move
the battery down and out of the battery socket.
1601 W. DEER VALLEY RD. PHOENIX, AZ 85027
©Knox Company. All rights reserved.
QUICK START INSTALLATION GUIDE
|
T.
800-552-5669
|
F.
623-687-2290

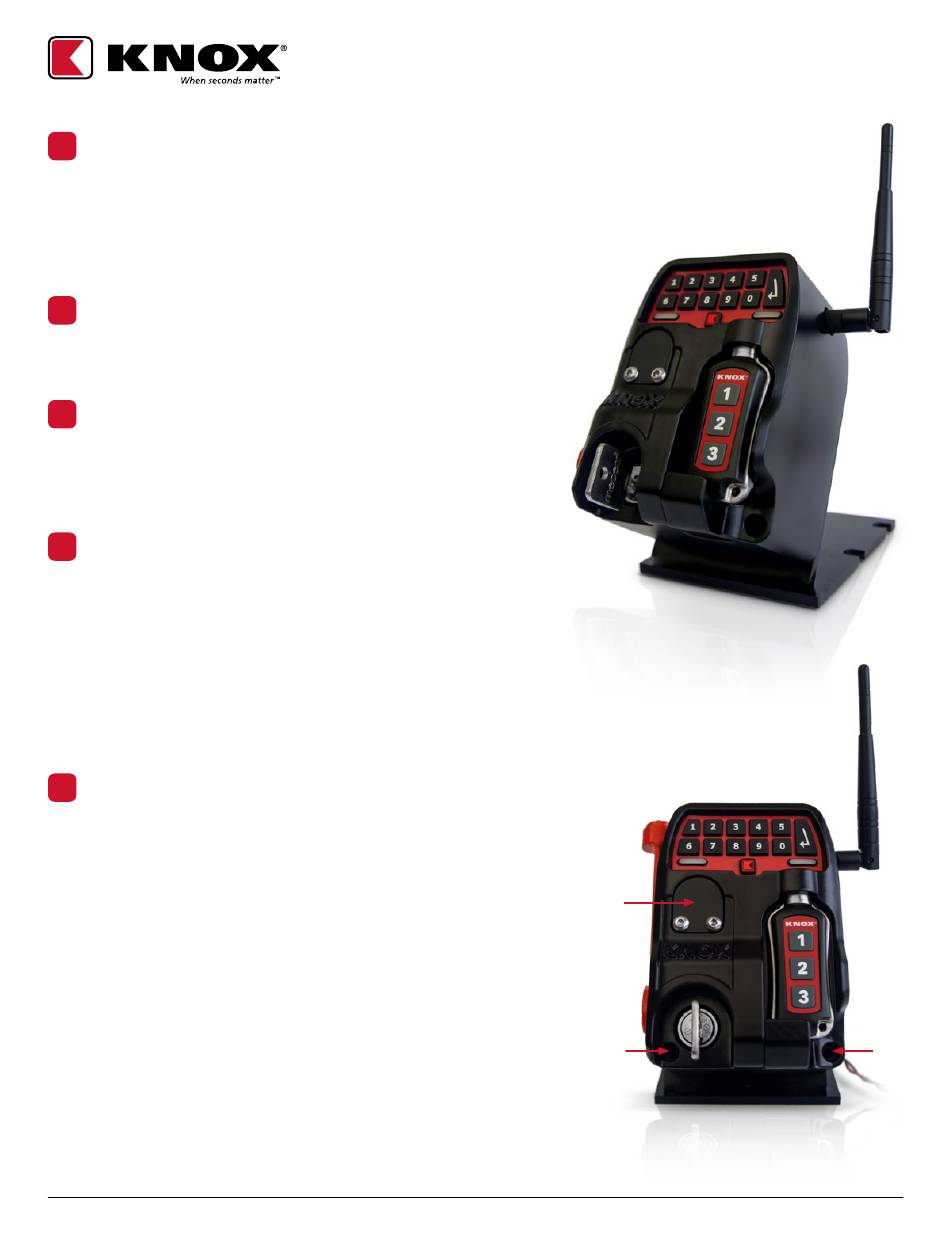

KEYSECURE® 6
Technician
lock (tech-lock)
cover
Mounting
bolt
|
INFO@KNOXBOX.COM
Mounting
bolt
|
KNOXBOX.COM
OPE-ESYSLR-0326-H
