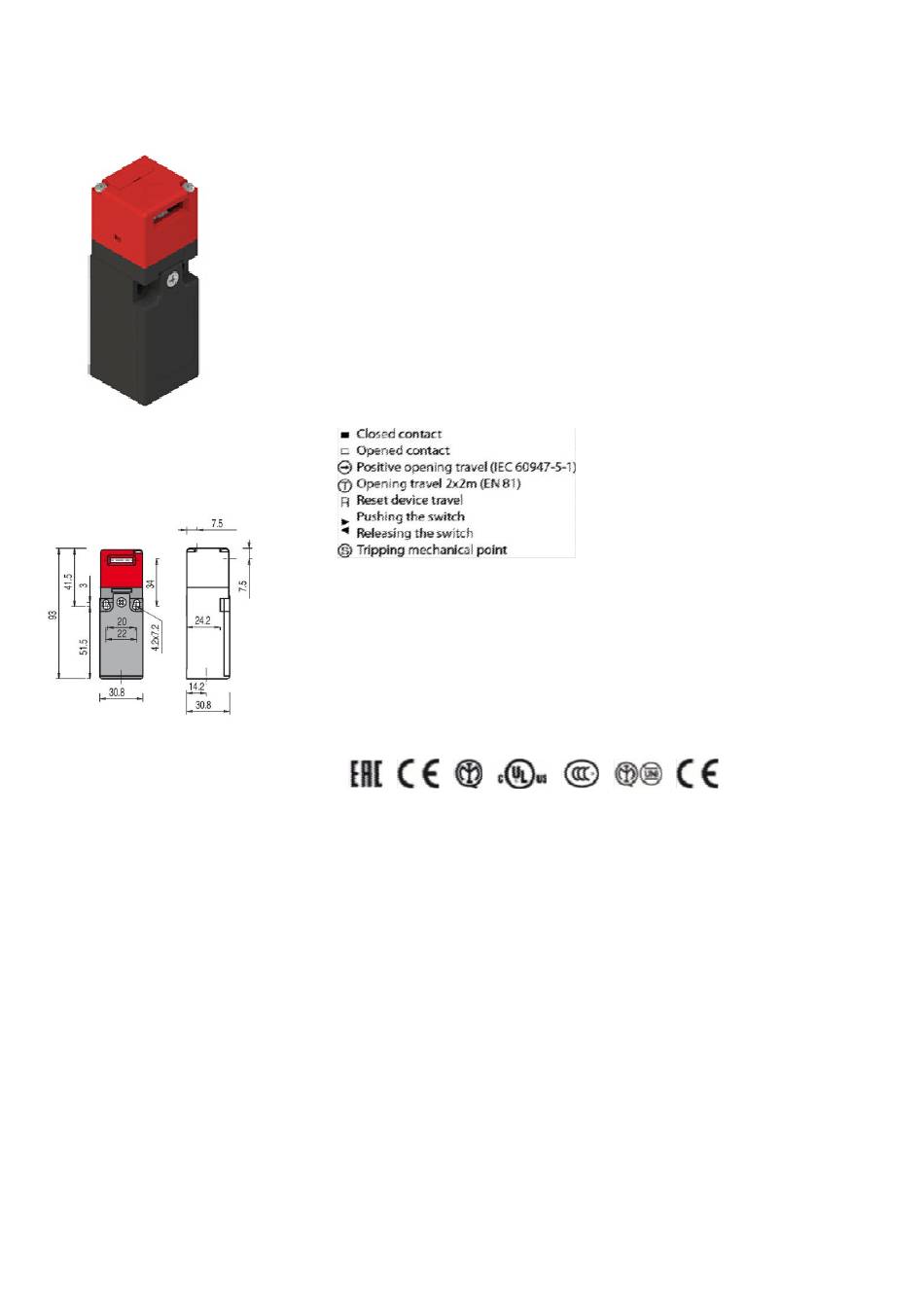

pizzato FR Series Quick Start Manual

Article:
FR 593
Description: Interruptor de seguridad con actuador separado
Electrical data:
Thermal current (Ith): 10 A
Rated insulation voltage (Ui): 400 Vac 500 Vdc Rated
impulse withstand voltage (Uimp): 4 kV
Conditional shot circuit current: 1000 A according to EN 60947-5-1 Protection
against short circuits: fuse 10 A 500 V type aM
Pollution degree: 3
© 2017 Copyright Pizzato Elettrica.Technical modifications and errors reserved. The data quoted in this sheet are carefully checked and represent typical series values.
Descriptions of device and its applications, the control contexts, details on external controls, installation and operating information are given to the best of our knowledge. This does not mean however that any assured
properties or other claims under liability law that extend beyond the "General Sales Terms" as stated in the Pizzato Elettrica general catalogue may be derived. The user is not absolved of his obligation to examine our
information and recommendations before using them for his own purposes.
Alojamiento:
Carcasa de polímero, entrada de conducto de rosca PG 13,5 (serie FR)
Caracteristicas Generales:
Ambient temperature: from -25°C to +80°C
Max actuation frequency: 3600 operations cycles/hour Mechanical endurance:
20 million operations cycles
Contact block characteristics:
Acción rápida 1NA + 1NC (B5).
Travel diagram:
In conformity with requirements requested by: Activating forces:
Low Voltage Directive 2014/35/EU Electromagnetic
In conformity with standards:
IEC 60947-5-1, EN 60947-5-1, EN 60947-1, EN 50047, IEC 60204-1, EN 60204-1,
EN ISO 14119, EN ISO 12100, IEC 60529, EN 60529, UL 508,CSA 22.2 No. 14.
Approvals:
IEC 60947-5-1, UL 508, CSA 22.2 No. 14, GB14048.5-2001.
Markings and quality marks:
Apertura positiva:
Si
Cross section of the conductors
(flexible copper wire):
min. 1 x 0,5 mm2 (1 x AWG 20)
max. 2 x 1,5 mm2 (2 x AWG 16)
Device screw tightening torques:
Cover screws: 0,7 ... 0,9 Nm
Head screws: 0,5 ... 0,7 Nm
Lever screws: 0,7 ... 0,9 Nm
Contact blocks screws: 0,6 ... 0,8 Nm Plugs:
1,2 ... 1,6 Nm (M20/PG13,5)
1 ... 1,4 Nm (M16/PG11)
Compatibility
: 0,06 Nm
Min.
Positive opening: 0,25 Nm
Utilization categories:
Alternate current: AC15 (50...60 Hz) Ue (V)
250 400
Ie (A) 6 4
Direct current: DC13
Ue (V) 24 125
Ie (A) 6 1,1
Sheet: 15367-0-en-2.1.0
Date::
2017/12/26
Directive 2014/30/EU
250
0,4
