- Page 1 The SL DI 4 XLR Dante™ interface Instruction manual Sennheiser electronic GmbH & Co. KG Am Labor 1, 30900 Wedemark, Germany, www.sennheiser.com Publ. 10/19 A01...

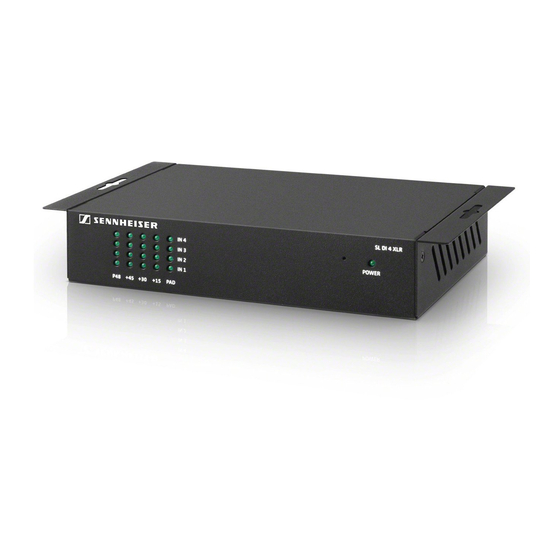

- Page 2 The SL DI 4 XLR Dante™ interface The SL DI 4 XLR Dante™ interface The SL DI 4 XLR is a Dante™ interface with four inputs. This lets you integrate wireless microphone receivers or mic/line inputs into a Dante™ system. The compact design of the SL DI 4 XLR allows it be mounted almost anywhere, enabling close placement to audio sources and thus reducing the need for interference-prone analog cables.
- Page 3 POE + DATA PWR LINK Terminals for daisy-chaining the power supply to other devices PWR LINK input and output input socket for an optional power supply unit (Sennheiser NT 12-50CS) DC IN socket Dante™ Ethernet socket DATA socket Dante™ Ethernet socket with PoE function...
- Page 4 DATA POE + DATA PWR LINK Power supply via the optional Sennheiser NT 12-50CS power supply unit To power the SL DI 4 XLR via the optional NT 12-50CS power supply unit: DC IN Connect the NT 12-50CS power supply unit to the socket of the SL DI 4 XLR.
-
Page 5: Connecting Audio Signals
The SL DI 4 XLR Dante™ interface Daisy-chaining the power supply PWR LINK IN terminals allow you to daisy-chain the power supply to additional de- vices. The number of devices that can be daisy-chained is limited. • NT 12-50CS power supply ->... - Page 6 All settings of the input and outputs of the SL DI 4 XLR are adjusted using the SL DI CONTROL soft- ware. You can download the software at www.sennheiser.com on the product page for the SL DI 4 XLR or in the global download area on the Sennheiser website at www.sennheiser.com/download.
-
Page 7: Changing The Settings
The SL DI 4 XLR Dante™ interface Establishing a connection to a SL DI 4 XLR To establish a connection to a SL DI 4 XLR: Select the desired SL DI 4 XLR from the drop-down list on the right of the navigation bar.. The drop-down list shows all SL DI 4 XLR devices that are in the same network as the PC on which the SL DI CONTROL software is running. -
Page 8: Saving And Loading Settings
The SL DI 4 XLR Dante™ interface Saving and loading settings You can save the settings made as presets or as files. To save the settings: Click on the folder icon on the left of the navigation bar. The following dialog box opens. To save the settings as a preset: From the drop-down list in the Device Preset box, select a preset to which you want to save the settings. -
Page 9: Identifying Devices
The SL DI 4 XLR Dante™ interface Identifying devices If you are using several SL DI 4 XLR devices and want to know which device in the software corres- ponds to which hardware in your installation, you can use the Identify function. Tick the Identify check box at the right of the navigation bar. - Page 10 The SL DI 4 XLR Dante™ interface At the front of the SL DI 4 XLR, the LEDs of the IN 1, IN 3 IN 4 inputs indicate the following status information: IN 1 input: SYNC IN 4 IN 3 and the LED of the PTP is being synchronized.
- Page 11 The SL DI 4 XLR Dante™ interface Eingang 3: ERR IN 4 IN 3 IN 2 LEDs of the Capability is corrupted input light up: IN 1 IN 4 IN 3 LED of the IN 3 input Memory Stack Overflow lights up: IN 2 IN 1...
