Aiphone MYW-BA Specifications

MYW-BA
Long Distance Adaptor For MY/MK Series Video Door Stations
DESCRIPTION:
The MYW-BA adaptor is designed for
applications where a video door station is
required, but is beyond the standard distance
limitation of 330'. The MYW-BA can be used
with the MY or MK video door stations. Aiphone
specified cable (#851602) is required.
The MYW-BA extends the maximum distance
of an MY or MK door station to 980 feet. When
using a modular audio/video system, an audio
intercom (LEF, IE, or TD-H/B) is required with
the video for a complete system. The type of
intercom depends on the user's needs and the
total distance specifications.

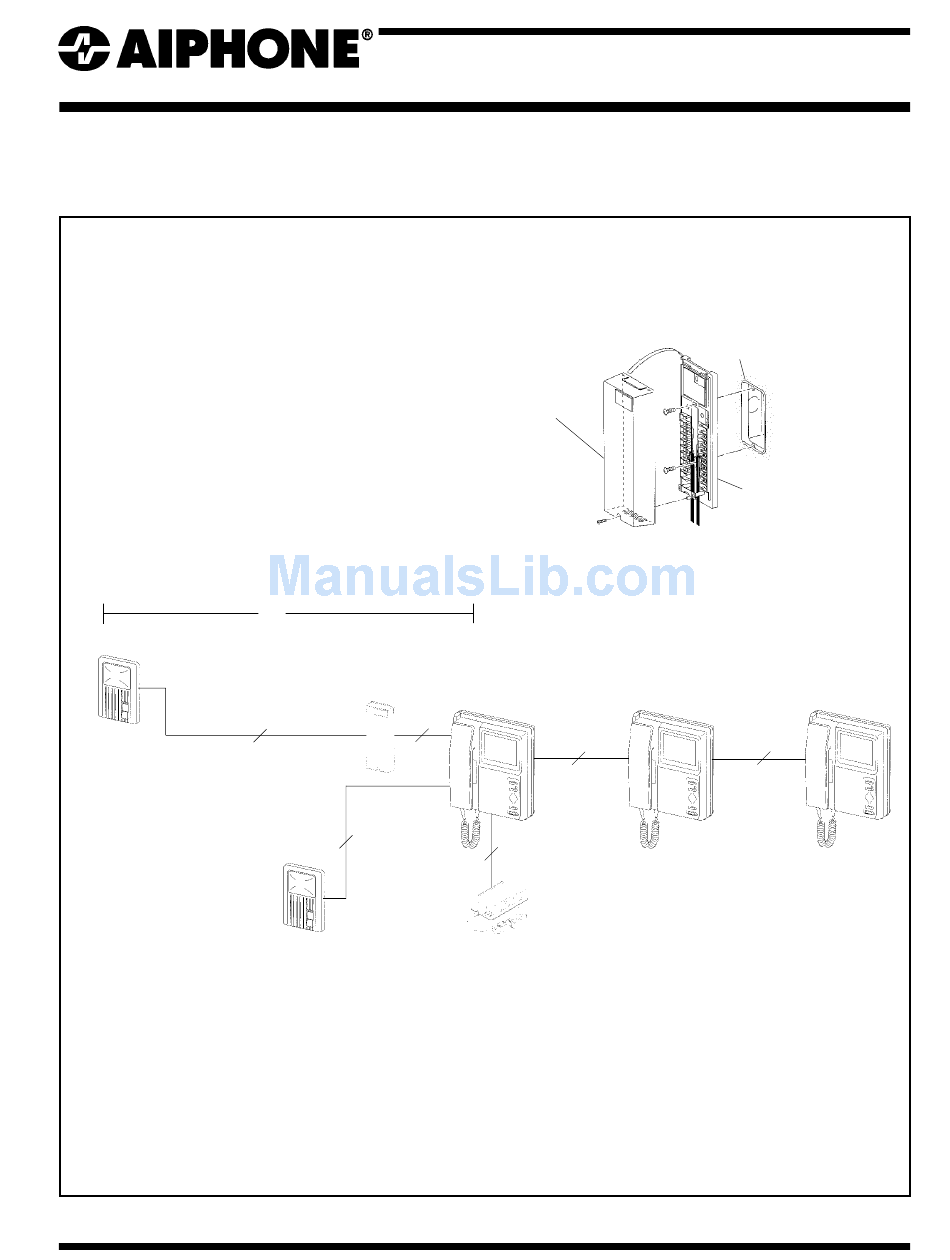

SYSTEM LAYOUT EXAMPLE:
MY-DC
851602

SPECIFICATIONS:

Power Source:
Current consumption:
Scanning lines:
Wiring distance:
Dimensions:
Aiphone Communication Systems • 1700 130th Ave. N.E. • Bellevue, WA 98005
(425) 455-0510 • FAX: (425) 455-0071 • (800) 692-0200 • www.aiphone.com
980'
MYW-BA
851602 +
841802
841802
MY-DC
18V DC. Use PS-18C for first 3 video units, including adaptor and monitors.
Use PS-18YC/A for each additional 2 monitors.
Max. 250mA. (1mA in standby)
525 lines
MY Camera to MYW-BA Adaptor: Max. 980' with Aiphone wire #851602
MYW-BA to MY-CU or MYW Adaptor: 165' with Aiphone wire #851602
MYW-BA to Power Supply: 23' with Aiphone wire #841802
7-1/2"H x 3"W x 1-5/8"D
FEATURES:
• Video door station can be up to 980' away from monitor
• Works with all MY and MK video systems
MOUNTING:
MYW-BA
FACEPLATE
MY-2CD MYH-2CD
841804
841802
PS-18C
SPECIFICATIONS
1-Gang Box
MOUNTING
BRACKET
MYH-2CD
841804
#91301
1299
