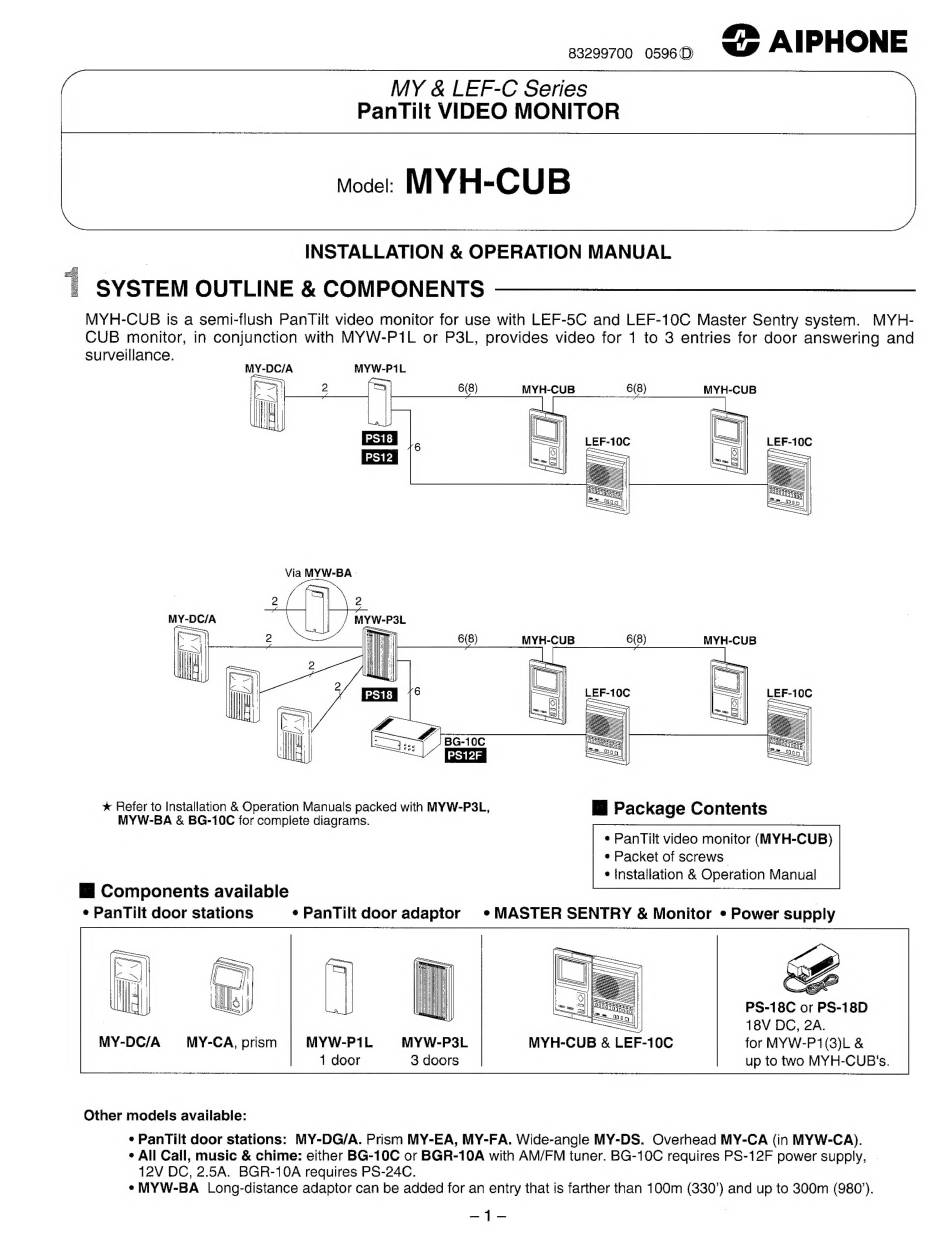

Aiphone MYH-CUB Installation & Operation Manual

MY & LEF-C Series
PanTilt VIDEO MONITOR
Mode: MYH-CUB
INSTALLATION & OPERATION MANUAL
SYSTEM OUTLINE & COMPONENTS
MYH-CUB is a semi-flush PanTilt video monitor for use with LEF-5C and LEF-10C Master Sentry system. MYH-
CUB monitor, in conjunction with MYW-P1L or P3L, provides video for 1 to 3 entries for door answering and
surveillance.
MY-DC/A MYW-P1L
1
a
LEF-10C LEF-10C
See ee
6(8) MYH-CUB 6(8) MYH-CUB
6
; ise BG-10C
f
LEF-10C LEF-10C
ee
* Refer to Installation & Operation Manuals packed with MYW-P3L, | Package Contents
MYW-BA & BG-10C for complete diagrams.
e PanTilt video monitor (MYH-CUB)
e Packet of screws"
¢ installation & Operation Manual
E Components available
e PanTilt door stations ¢PanTilt door adaptor °*MASTER SENTRY & Monitor * Power supply
18V DC, 2A.
MY-DC/A MY-CA, prism MYW-P1L MYW-P3L MYH-CUB & LEF-1 oc for MYW-P1(3)L &
1 door 3 doors up to two MYH-CUB's.
Other models available:
¢ PanTilt door stations: MY-DG/A. Prism MY-EA, MY-FA. Wide-angle MY-DS. Overhead MY-CA (in MYW-CA).
¢ All Call, music & chime: either BG-10C or BGR-10A with AM/FM tuner. BG-10C requires PS-12F power supply,
12V DC, 2.5A. BGR-10A requires PS-24C.
e MYW-BA Long-distance adaptor can be added for an entry that is farther than 100m (330') and up to 300m (980').
=
