LIGHT MY BRICKS 10273 Manual

Lighting kit for lego haunted house
Hide thumbs

Advertisement

Quick Links

Download this manual

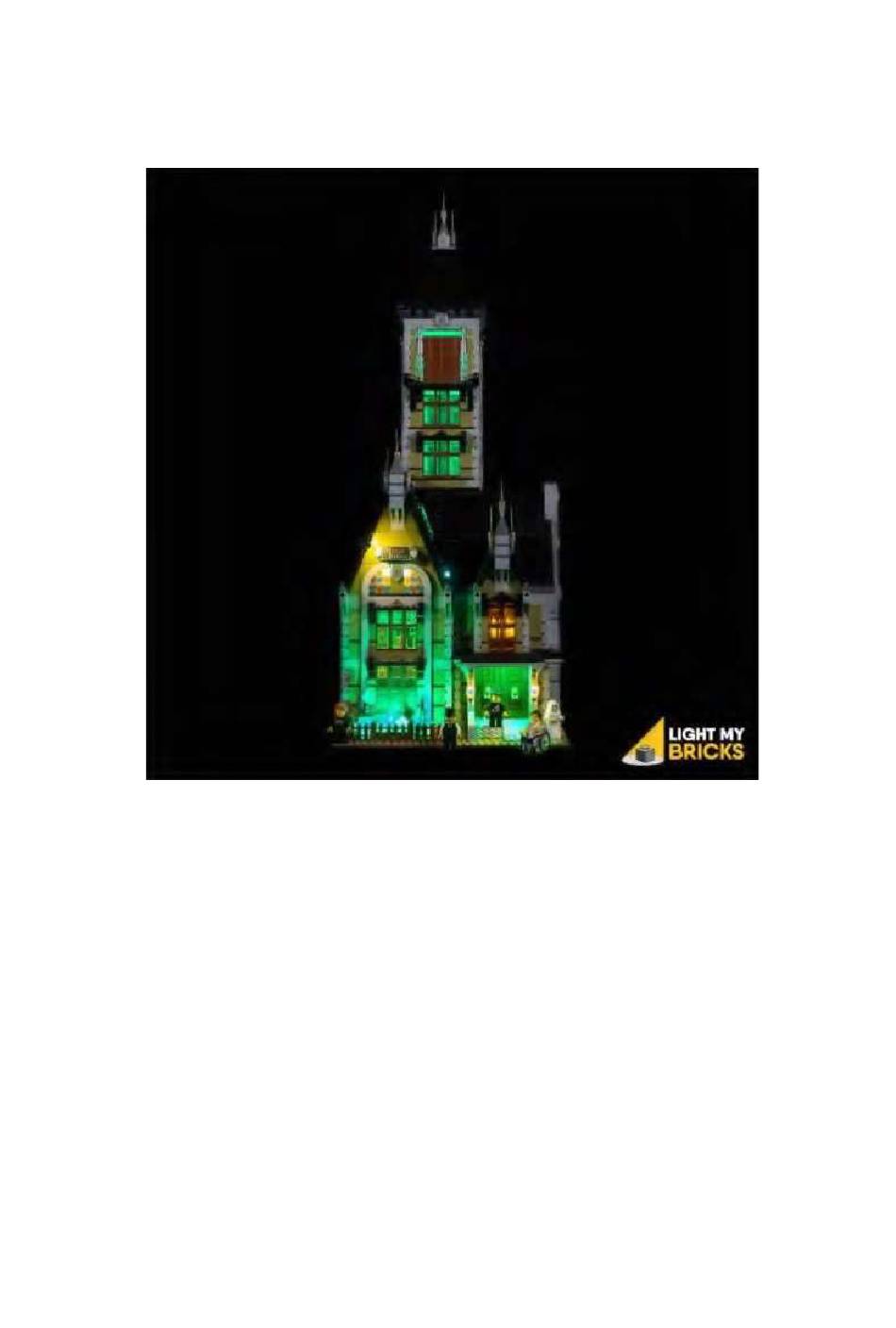

Light My Bricks: LEGO Haunted House 10273
The following page is the instructions for the Light My Bricks LEGO Haunted House 00273) LED light
kit.
Ifyou run into any issues, please refer to the online troubleshooting guide.
To ensure a trouble-free installation of your light kit, please read and follow each step carefully
Please note: This page lists instructions for the LED light kit only
Package Contents:
4 x White 30cm Bit Lights
•
4 x White 15cm Bit Lights
•
4 x White 30cm Micro Bit Lights
•
12 x White 15cm Micro Bit Lights
•
2 x Warm White Strip Lights
•
Lighting Kit

Advertisement

loading
Need help?

Need help?

Do you have a question about the 10273 and is the answer not in the manual?

Questions and answers

Related Manuals for LIGHT MY BRICKS 10273

Summary of Contents for LIGHT MY BRICKS 10273

  • Page 1 Light My Bricks: LEGO Haunted House 10273 Lighting Kit The following page is the instructions for the Light My Bricks LEGO Haunted House 00273) LED light kit. Ifyou run into any issues, please refer to the online troubleshooting guide. To ensure a trouble-free installation of your light kit, please read and follow each step carefully...
  • Page 2 6 x Green Strip Lights • 3 x 6-Port Expansion Board • 1 x 8-Port Expansion Board • 3 x Micro 2-4 Port Expansion Boards • 1 x Micro 2-8 Port Expansion Board • 3 x Flicker Effects Boards • 2 x Scary Flicker Effects Boards •...
  • Page 3 CAUTION: Forcing LEGO@ to connect over a cable can result in damaging the cable and light. Connecting cable connectors to Expansion Boards Take extra care when inserting connectors to ports of Expansion Boards. Connectors can be inserted only one way. With the expansion board facing up, look for the soldered symbol on the left side of the port.
  • Page 4 Connecting Micro Cable connectors to Micro Expansion Board Ports Take extre care when inserting the micro connectors to micro ports of Micro Expansion Boards. Connecting Micro Bit Lights to Micro Expansion Boards is similar to connecting lights and cables Strip Lights. With the expansion board facing up, ensure the side of the cannector with the wires exposed is facing down.
  • Page 5 OK, Let's Begin!
  • Page 11 LIGHT MY WWW.LIGHTMYBRICKS.COM BRICKS...
  • Page 23 Power Bank Note — Ifyour are using the Light My Bricks USB Power Bank, it is normal for the initial lights installed to turn off automatically after a few minutes. This is due to very low power being...
  • Page 41 12.)
  • Page 49 Note: Ifyo U experience any issues with the ligh ts not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board or effects board). To correct any issues with expansion board ports, please view the section addressing expansion board issues on our online troubleshooting guide.
  • Page 56 Note: Ifyou experience any issues with the fights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board or effects board). To correct any issues with expansion board ports, please view the section addressing expansion board issues on our online troubleshooting guide.
  • Page 63 16.)
  • Page 66 ORicRs...
  • Page 68 18.)
  • Page 71 19.)
  • Page 75 20.)
  • Page 76 Note. /fyou experience any issues with the lights not working and suspect an issue with a component please try a different port on the expansion board to verify where the fault lies (with the fight or expansion board or effects board). To correct any issues with expansion board ports, p/eese view the section addressing expansion board issues on our online troubleshooting guide.
  • Page 89 24.)
  • Page 91 25.)
  • Page 92 Note: Ifyou experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board or effects board). To correct any issues with expansion board ports, please view the section addressing expansion board issues on our online troubleshooting guide.
  • Page 96 27.)
  • Page 105 30.)
  • Page 116 33.)
  • Page 119 Note: Ifyou experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board or effects board). To correct any issues with expansion board ports, please view the section addressing expansion board issues on our online troubleshooting guide.
  • Page 122 35.)
  • Page 127 36.)
  • Page 132 38.)
  • Page 137 Note: Ifyou experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board or effects board). To correct any issues with expansion board ports, please view the section addressing expansion board issues on our online troubleshooting guide.
  • Page 141 40.)
  • Page 143 Note: Ifyou experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board or effects board). To correct any issues with expansion board ports, please view the section addressing expansion board issues on our online troubleshooting guide.
  • Page 144 41.)
  • Page 156 45.)
  • Page 161 Note: Ifyou experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board or effects board). To correct any issues with expansion board ports, please view the section addressing expansion board issues on our online troubleshooting guide.
  • Page 165 47.)
  • Page 167 48.)
  • Page 174 49.) Note: Ifyou experience any issues with the fights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board). To correct any issues with expansion board ports, please view the section addressing expansion board issues on our online troubleshooting guide.
  • Page 175 This finally completes installation of the Light My Bricks Haunted House 10273 Light Kit. We thank you for purchasing this product and hope you ENJOY!
