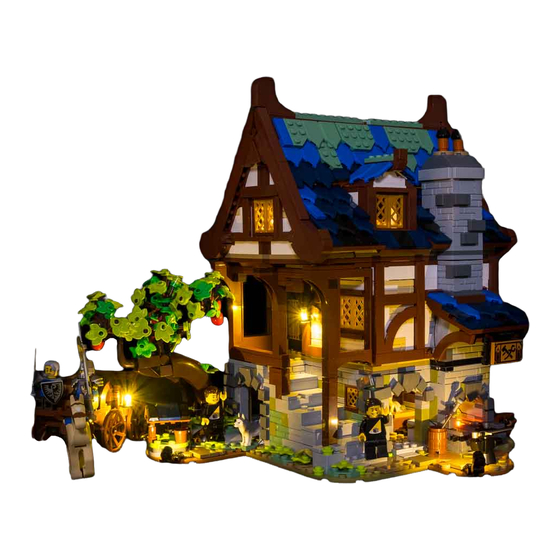

- Page 1 LEGO MEDIEVAL BLACKSMITH 21325 LIGHT KIT INSTALL GUIDE LEGO® MEDIEVAL BLACKSMITH #21325 LIGHT KIT INSTALLATION GUIDE...
- Page 2 LEGO MEDIEVAL BLACKSMITH 21325 LIGHT KIT INSTALL GUIDE Light My Bricks LEGO® MEDIEVAL BLACKSMITH #21325 INSTALLATION GUIDE Hi There! We’re here to help you get started on the LEGO® Medieval Blacksmith (21325) Light Kit.vThis PDF details the instructions for the LED light & sound kit only. If you are wishing to purchase this...
- Page 3 LEGO MEDIEVAL BLACKSMITH 21325 LIGHT KIT INSTALL GUIDE PACKAGE CONTENTS: LEGO PIECES: • 9 x Black Round Plate 1x1 w Open Stud* • 1 × 1x1 White Round Plate 1x1 w Open Stud 11 x White 30cm Bit Lights* •...
-
Page 4: Table Of Contents
LEGO MEDIEVAL BLACKSMITH 21325 LIGHT KIT INSTALL GUIDE Contents Before You Begin Instructions Final Product Troubleshooting Contact CONTENTS... -
Page 5: Before You Begin
LEGO MEDIEVAL BLACKSMITH 21325 LIGHT KIT INSTALL GUIDE Before You Begin Laying cables in between Connecting Cable and underneath bricks Connectors To Expansion Boards Cables can fit in between and underneath LEGO® bricks, plates, and tiles providing Take extra care when inserting connectors they are laid correctly between the to ports of Expansion Boards. - Page 6 LEGO MEDIEVAL BLACKSMITH 21325 LIGHT KIT INSTALL GUIDE Before You Begin Connecting Cable Connecting Micro Cable Connectors To Strip Lights Connectors To Micro Expansion Board Ports Take extra care when inserting connectors to ports on the Strip Lights. Connectors Take extra care when inserting the can be inserted only one way.
- Page 7 LEGO MEDIEVAL BLACKSMITH 21325 LIGHT KIT INSTALL GUIDE Before You Begin Installing Bit Lights Under Lego® Bricks And Plates When installing Bit Lights under LEGO® pieces, ensure they are placed the correct way up (Yellow LED component exposed). You can either place them directly on top of LEGO®...
-
Page 8: Instructions
LEGO MEDIEVAL BLACKSMITH 21325 LIGHT KIT INSTALL GUIDE INSTRUCTIONS To ensure a smooth installation of your light kit, please read and follow each step carefully. If you run into any issues, please refer to the online troubleshooting guide. INSTRUCTIONS... - Page 9 LEGO MEDIEVAL BLACKSMITH 21325 LIGHT KIT INSTALL GUIDE Ensure the Bit Orange 30cm Bit Light Light LED is facing down Legend CONNECT / DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST NOTE ICON RECONNECT INSTRUCTIONS...
- Page 10 LEGO MEDIEVAL BLACKSMITH 21325 LIGHT KIT INSTALL GUIDE Orange 30cm Bit Light White 30cm Bit Light Use the 1x3 brick you removed from the previous step Ensure both White Bit Light and Reconnect the Orange Bit Light two sections you...
- Page 11 LEGO MEDIEVAL BLACKSMITH 21325 LIGHT KIT INSTALL GUIDE If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board).
- Page 12 LEGO MEDIEVAL BLACKSMITH 21325 LIGHT KIT INSTALL GUIDE Orange 30cm Bit Light Ensure both Orange Bit Light from the anvil and Orange Bit Light cable from step 1 are layed in between studs, then up over the wall Legend CONNECT /...
- Page 13 LEGO MEDIEVAL BLACKSMITH 21325 LIGHT KIT INSTALL GUIDE Twist/Braid all Bit Light Cables together ensuring you leave out the 30cm Connecting Cable Wireless Power Connectors Tile Side Legend CONNECT / DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST...
- Page 14 LEGO MEDIEVAL BLACKSMITH 21325 LIGHT KIT INSTALL GUIDE Black Round Plate 1x1 White Round Plate 1x1 w Round Plate w Round Plate Candle Flame Black Round Plate 1x1 w Round Plate White 30cm Bit Light Legend CONNECT / DISCONNECT TURN / FLIP...
- Page 15 LEGO MEDIEVAL BLACKSMITH 21325 LIGHT KIT INSTALL GUIDE White 30cm Bit Light Black Round Plate 1x1 w Round Plate Temporarily lift out the Flicker Effects Board so you can connect the White Bit Light from the candle to the remaining OUT port.
- Page 16 LEGO MEDIEVAL BLACKSMITH 21325 LIGHT KIT INSTALL GUIDE 2x Black Modified Plate • Black Arm Skeleton Rounded w Handle • Bent w Clips (Horizontal Grips) Thread the Bit Light cable underneath and up behind the stairs Legend CONNECT / DISCONNECT...
- Page 17 LEGO MEDIEVAL BLACKSMITH 21325 LIGHT KIT INSTALL GUIDE White 30cm Bit Light Black Round Plate 1x1 w Round Plate 6-Port Expansion Board Connect the 30cm Connecting Cable from step. 5 to the 6-Port Expansion Board 2x Black Modified Plate •...
- Page 18 LEGO MEDIEVAL BLACKSMITH 21325 LIGHT KIT INSTALL GUIDE 2 x Adhesive Squares Legend CONNECT / DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST NOTE ICON RECONNECT INSTRUCTIONS...
- Page 19 LEGO MEDIEVAL BLACKSMITH 21325 LIGHT KIT INSTALL GUIDE If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board).
- Page 20 LEGO MEDIEVAL BLACKSMITH 21325 LIGHT KIT INSTALL GUIDE Orange 30cm Bit Light Legend CONNECT / DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST NOTE ICON RECONNECT INSTRUCTIONS...
- Page 21 LEGO MEDIEVAL BLACKSMITH 21325 LIGHT KIT INSTALL GUIDE White 15cm Bit Light 2 x Black Round Plate 1x1 w Round Plate Legend CONNECT / DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST NOTE ICON RECONNECT INSTRUCTIONS...
- Page 22 LEGO MEDIEVAL BLACKSMITH 21325 LIGHT KIT INSTALL GUIDE 2 x White 30cm Bit Light Legend CONNECT / DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST NOTE ICON RECONNECT INSTRUCTIONS...
- Page 23 LEGO MEDIEVAL BLACKSMITH 21325 LIGHT KIT INSTALL GUIDE 6-Port Expansion Board Connect the Wireless Power Connector to the 6-Port Expansion Board Connect the Bit Lights from the 5cm Connecting Cable candles and fireplace to the OUT ports on the Flicker Effects...
- Page 24 LEGO MEDIEVAL BLACKSMITH 21325 LIGHT KIT INSTALL GUIDE If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board).
- Page 25 LEGO MEDIEVAL BLACKSMITH 21325 LIGHT KIT INSTALL GUIDE Wireless Power Connectors Tile Side Black Plate 1x2 Legend CONNECT / DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST NOTE ICON RECONNECT INSTRUCTIONS...
- Page 26 LEGO MEDIEVAL BLACKSMITH 21325 LIGHT KIT INSTALL GUIDE 6-Port Expansion Board Plate Side Legend CONNECT / DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST NOTE ICON RECONNECT INSTRUCTIONS...
- Page 27 LEGO MEDIEVAL BLACKSMITH 21325 LIGHT KIT INSTALL GUIDE Orange 30cm Bit Light Ensure the White 30cm Bit Light LED is placed behind and facing the toward the flame piece. 2 x Black Round Plate 1x1 w Round Plate Legend CONNECT /...
- Page 28 LEGO MEDIEVAL BLACKSMITH 21325 LIGHT KIT INSTALL GUIDE Pull the Bit Light cable from the candle across to the right. Pull the Bit Light cable from the Fireplace across to the left. Legend CONNECT / DISCONNECT TURN / FLIP DIRECTIONAL...
- Page 29 LEGO MEDIEVAL BLACKSMITH 21325 LIGHT KIT INSTALL GUIDE Use the LEGO tool (Brick Seperator) to neaten/tuck-in the bit light wire Turn/flip the Top floor with the chimney side facing the down White 30cm Bit Light Trans Clear Plate 2x2 w Rounded Bottom...
- Page 30 LEGO MEDIEVAL BLACKSMITH 21325 LIGHT KIT INSTALL GUIDE If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board).
- Page 31 LEGO MEDIEVAL BLACKSMITH 21325 LIGHT KIT INSTALL GUIDE White 30cm Bit Light Legend CONNECT / DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST NOTE ICON RECONNECT INSTRUCTIONS...
- Page 32 LEGO MEDIEVAL BLACKSMITH 21325 LIGHT KIT INSTALL GUIDE If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board).
-
Page 33: Final Product
LEGO MEDIEVAL BLACKSMITH 21325 LIGHT KIT INSTALL GUIDE FINAL PRODUCT This finally completes installation of the Light My Bricks Blacksmith Medieval 21325 Light Kit. FINAL PPRODUCT... - Page 34 LEGO MEDIEVAL BLACKSMITH 21325 LIGHT KIT INSTALL GUIDE Wireless Power Connectors Install Tip If you’re having connectivity / contact Pull the terminal contacts issues with the Wireless Power further out. Connectors, try the following tip to help Use a pair of tweezers to gently pull out resolve the issue.
-
Page 35: Troubleshooting
LEGO MEDIEVAL BLACKSMITH 21325 LIGHT KIT INSTALL GUIDE TROUBLESHOOTING Light My Bricks lighting To prevent unnecessary If you are experiencing kits contain individual damage to components, issues with your Light components that are very we highly recommend that My Bricks set, watch our... - Page 36 LEGO MEDIEVAL BLACKSMITH 21325 LIGHT KIT INSTALL GUIDE Troubleshooting Firstly, ensure that the Check For CR2032 Batteries batteries have power using a Using The Flat Battery Pack battery charge gauge. Inside the battery pack is a symbol indicating which side the (round) CR2032 If the batteries have no power, battery should be inserted.
- Page 37 LEGO MEDIEVAL BLACKSMITH 21325 LIGHT KIT INSTALL GUIDE Troubleshooting Check For Cr2032 Batteries Check for AA batteries Using The Round Battery using the AA battery pack Pack Inside the battery pack are symbols indicating which direction the AA battery Inside the battery pack is a symbol indicating should be inserted.
- Page 38 LEGO MEDIEVAL BLACKSMITH 21325 LIGHT KIT INSTALL GUIDE Troubleshooting Check Your Wires In order for Light My Bricks components to fit If the wiring is detached from the LED itself, the in between and underneath LEGO® bricks, the light will not operate.
- Page 39 LEGO MEDIEVAL BLACKSMITH 21325 LIGHT KIT INSTALL GUIDE Troubleshooting Check Your Expansion Board A short circuit can also result in overheating of the board, cable or Ports/ Strip Light Ports / batteries. If you suspect a short circuit, Effects Board Ports...
-
Page 40: Contact
LEGO MEDIEVAL BLACKSMITH 21325 LIGHT KIT INSTALL GUIDE CONTACT US If you have an enquiry regarding the online shop, our products or a general enquiry please refer to our Frequently Asked Questions webpage here. Alternatively, you can contact our Customer Services team by visiting our online support portal here. - Page 41 lightmybricks.com...
