VQ Radio Control Model FLOAT Instruction Manual

VQ Radio Control Model FLOAT Instruction Manual

For r/c aircraft, 46 size

Advertisement

46 SIZE
FLOAT
FOR R/C AIRCRAFT

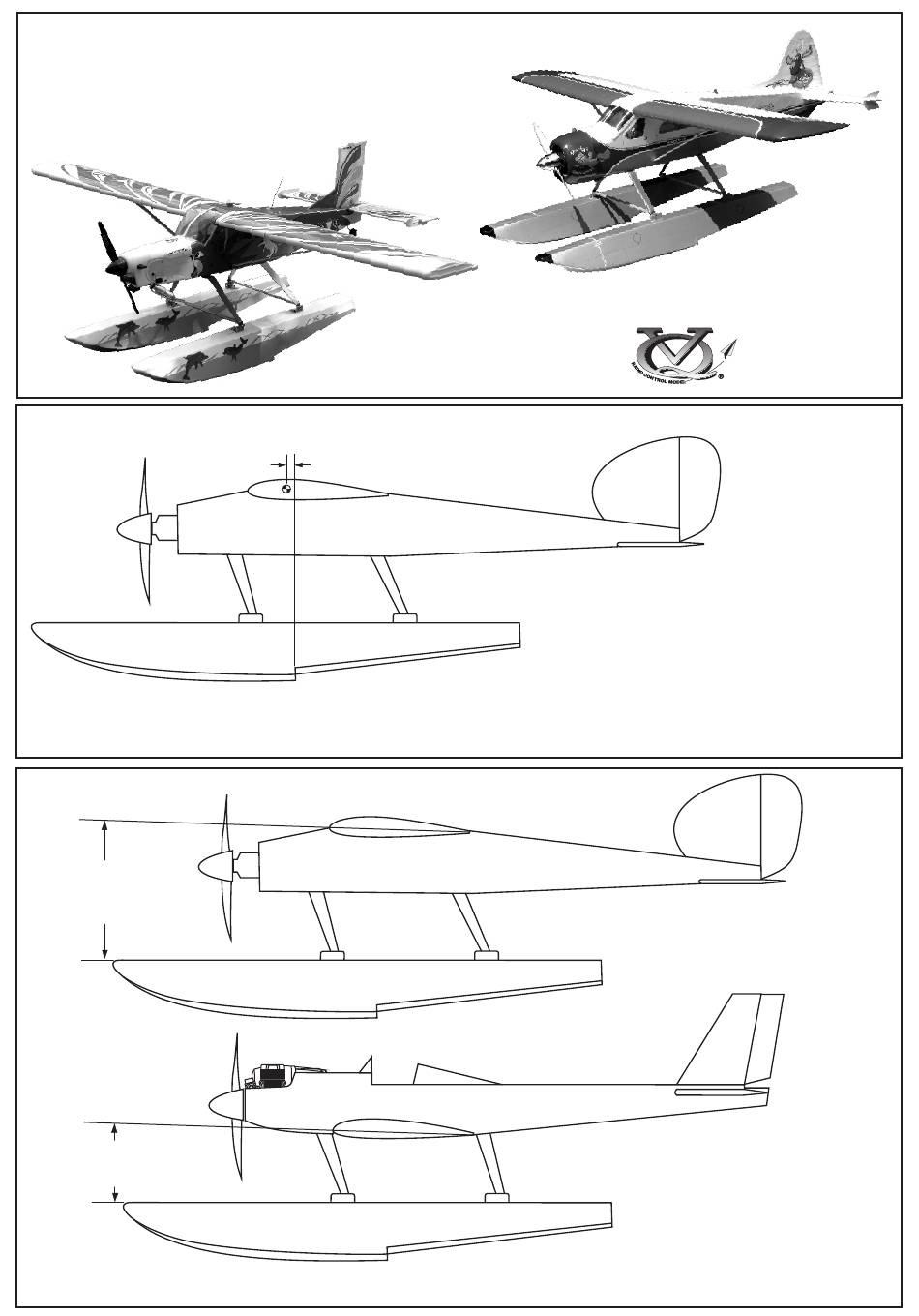

FLOAT STEP IS ½" ( 12.7mm) BEHIND C.G
the C.G. Slightly forward as listed below. Although you may have added the recommended ballast inside the front of
the float, in some cases a litter more ballast may be required on the model.
For 40 - 46 size floats: Move the CG.(Balance point) 3/8" (9.5mm) ahead of the manufacturers recommended CG.
1-½
DEG.
1-½
DEG.
WHEN THE TOPS OF THE FLOATS ARE LEVEL, THE WING INCIDENCE SHOULD BE + 1-1/2 Deg.
½"
INSTRUCTION MANUAL
The relationship between the "step" on the floats
and the center of gravity on the model is important
First, the floats should be mounted on the model
so the step is positioned as detailed in the
"Step sketch" for your particular model. Then,
when the floats are mounted on the model, move
