Leviton Intellect ZLDNK Quick Start Manual

Intellect™
WARNINGS AND CAUTIONS
• TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER AT CIRCUIT BREAKER OR
FUSE AND TEST THAT POWER IS OFF BEFORE WIRING!
• To be installed and/or used in accordance with appropriate electrical codes and regulations.
• If you are unsure about any part of these instructions, consult an electrician.
DESCRIPTION
The Intellect™ Room Controller is designed to be used to coordinate and control multiple Intellect fixtures and sensors within a room. It manages all energy management functionality
both as required by code and as desired by the user. All aspects of the system can be configured to meet the specific needs of the end-user and their application. An initial configuration
can be created without any special tools using only the room controller and installed devices within the room. System refinements can be made using the Leviton Intellect app from your
smartphone or other Bluetooth enabled Android or iOS device.
NOTES:
• Installs into standard wall boxes.
• May be multi-ganged.
• Multiple devices may be used within the same room for control from multiple locations.
• Each room requires at least one Room Controller.

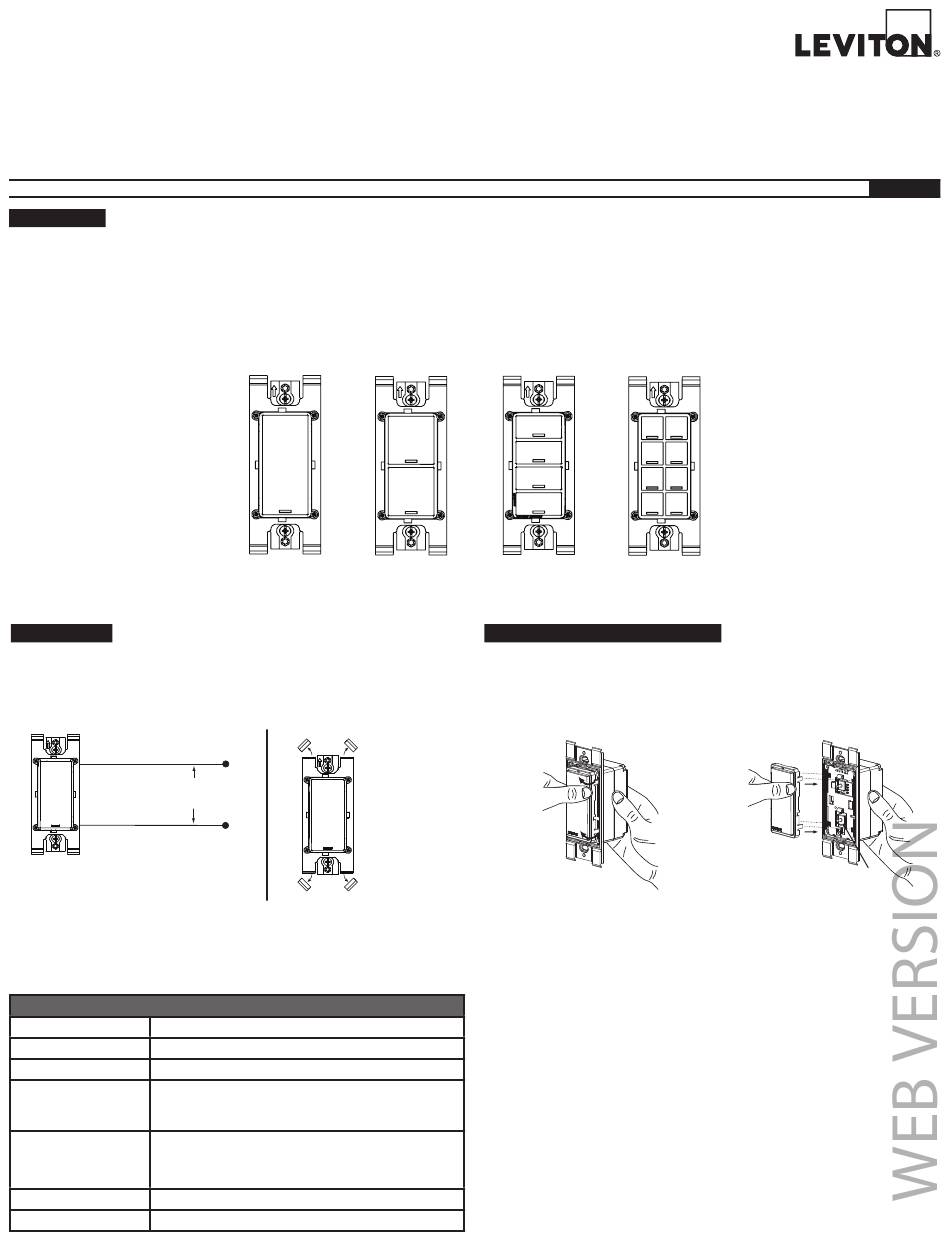

INSTALLATION
1. TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER at circuit breaker or fuse
and test that power is off before wiring!
2. Remove 3/4" of insulation from each wire lead and connect per diagram. After all
connections have been made, ensure that all wire connectors are firmly attached and
there is no exposed copper.
Hot (Black)
BK
Line
120-277VAC, 60 Hz
WH
Neutral (White)
ZLDNK-01W
3. Gently place wires and device into wall box and secure with mounting screws.
4. Install Decora ® wallplate. Installation is complete.
* NOTE: This device accepts Decora
If screw plates are used, remove the four tabs at the corners of the mounting strap to avoid
interference with the wallplate.
Input Rating 120-277VAC, 40mA Max, 50/60Hz
Standby Power < 0.5W
Output: None RF Communication Only
RF Communication Intellect for communication to other Intellect devices
Bluetooth for communication to an Android or Apple iOS device
for configuration, monitoring, and control
Agency Listings cULus LISTED Energy Mngt. Equip.
UL 916, E148771
CSA C22.2 No. 205
FCC Part 15, Class B
Energy Code Compliance Title 24, ASHRAE 90.1, IECC, DLC Advanced Lighting Controls
IP Rating IP30

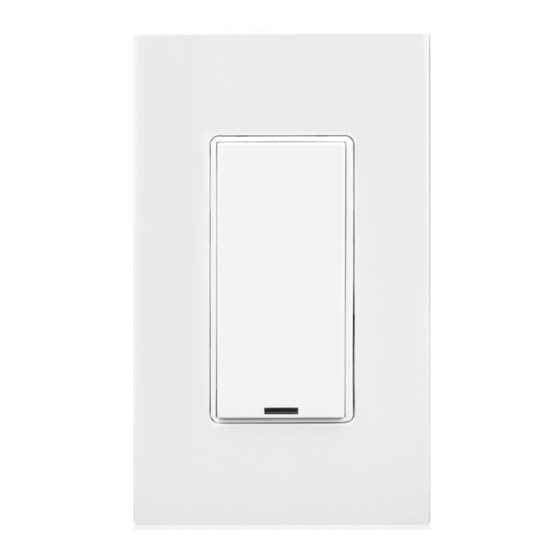

Intellect™ Room Controller
INSTALLATION INSTRUCTIONS
ZLDNK-01W
(one button)
® wallplates (both types - screwless and with screws).
SPECIFICATIONS
Cat. No. ZLDNK
120-277 VAC, 50/60 Hz
WARNINGS AND CAUTIONS
• Use this device with copper or copper clad wire only.
• Use of metal wall plates requires installation into a metal wall box connected to an earth-ground.
• For indoor applications only.
• Save these instructions.
ZLDNK-02W ZLDNK-04W
(two buttons) (four buttons)
COLOR CHANGE AND BUTTON KITS
NOTE: Buttons and wallplates can be custom engraved to your specifications.
Contact Leviton for availability and order details. To install a color change kit:
1. Squeeze the sides of the button frame to release snap tabs and remove.
2. Install new buttons and wallplate.
* Remove tabs if
using screw type
wallplate
Squeeze sides
to release
ZLDNK-08W
(eight buttons)
Line up tabs and
press in side to
attach Factory default button
DI-000-ZLDNK-00A
ENGLISH
