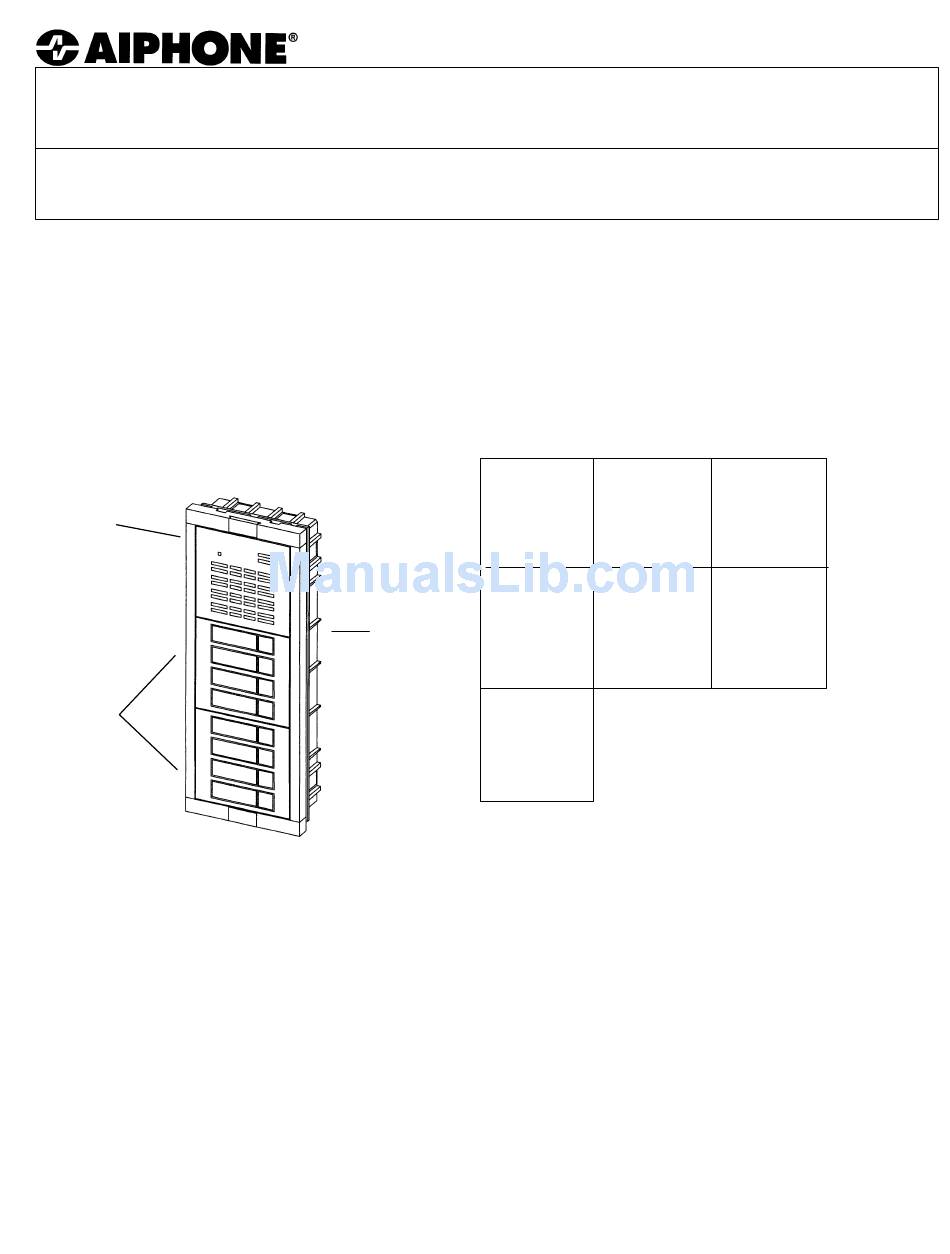

Aiphone GW-LE8 Instructions Manual

Selective Call Audio Module for Open Voice Systems
C-ML/A, LEM-1DL/C, LEF, LAF-C, or LDF Masters
The GW-LE8 is an audio module, used with other components to make up a selective calling audio
door station. Panels from two to eight stations can be created. The entrance panel can selectively call
and communicate with open voice inside master stations. Use any of the above listed master stations.
8 Call Entrance Station
GW-LE8
w/ GW-DP
GW-4P
(x2)
GW-LE8 Terminal Definitions:
D+ Common communication
D- Negative, common call signal
Yel Common Call signal
Blu (8 wires) Selective Call-in and
communication wires (1 per button)
GW-LE8
Use with:
- INSTRUCTIONS -
*MODULAR ENTRANCE STATIONS
List of components for each entrance panel:
2 Call Panel
1 GW-LE8
1 GW-DP
1 GW-2P
1 GW-2
5 Call Panel
1 GW-LE8
1 GW-DP
GW-3
1 GW-1P
1 GW-4P
1 GW-3
8 Call Panel
1 GW-LE8
1 GW-DP
2 GW-4P
1 GW-3
COMPONENT MODELS AND DESCRIPTIONS
Model
GW-LE8
GW-DP
GW-1P
GW-2P
GW-3P
GW-4P
GW-2
GW-3
SEMI-FLUSH AND SURFACE MOUNTING BOXES:
Model
GW-002H
GW-002HB
GW-003H
GW-003HB
3 Call Panel 4 Call Panel
1 GW-LE8 1 GW-LE8
1 GW-DP 1 GW-DP
1 GW-3P 1 GW-4P
1 GW-2 1 GW-2
6 Call Panel 7 Call Panel
1 GW-LE8 1 GW-LE8
1 GW-DP 1 GW-DP
1 GW-2P 1 GW-3P
1 GW-4P 1 GW-4P
1 GW-3 1 GW-3
Description
Audio Module
Audio Module Front Panel
1 Button Panel
2 Button Panel
3 Button Panel
4 Button Panel
2 Panel Back Box
3 Panel Back Box
Description
Semi-flush Mt. Hood for GW-2
Surface Mt. Hood for GW-2
Semi-flush Mt. Hood for GW-3
Surface Mt. Hood for GW-3
Special
Order
Products
