Eaton MPAD-C-A Product Manual

MPAD-C-A 12-24V
Ceiling Microwave presence/absence detector 12-24V AC/DC

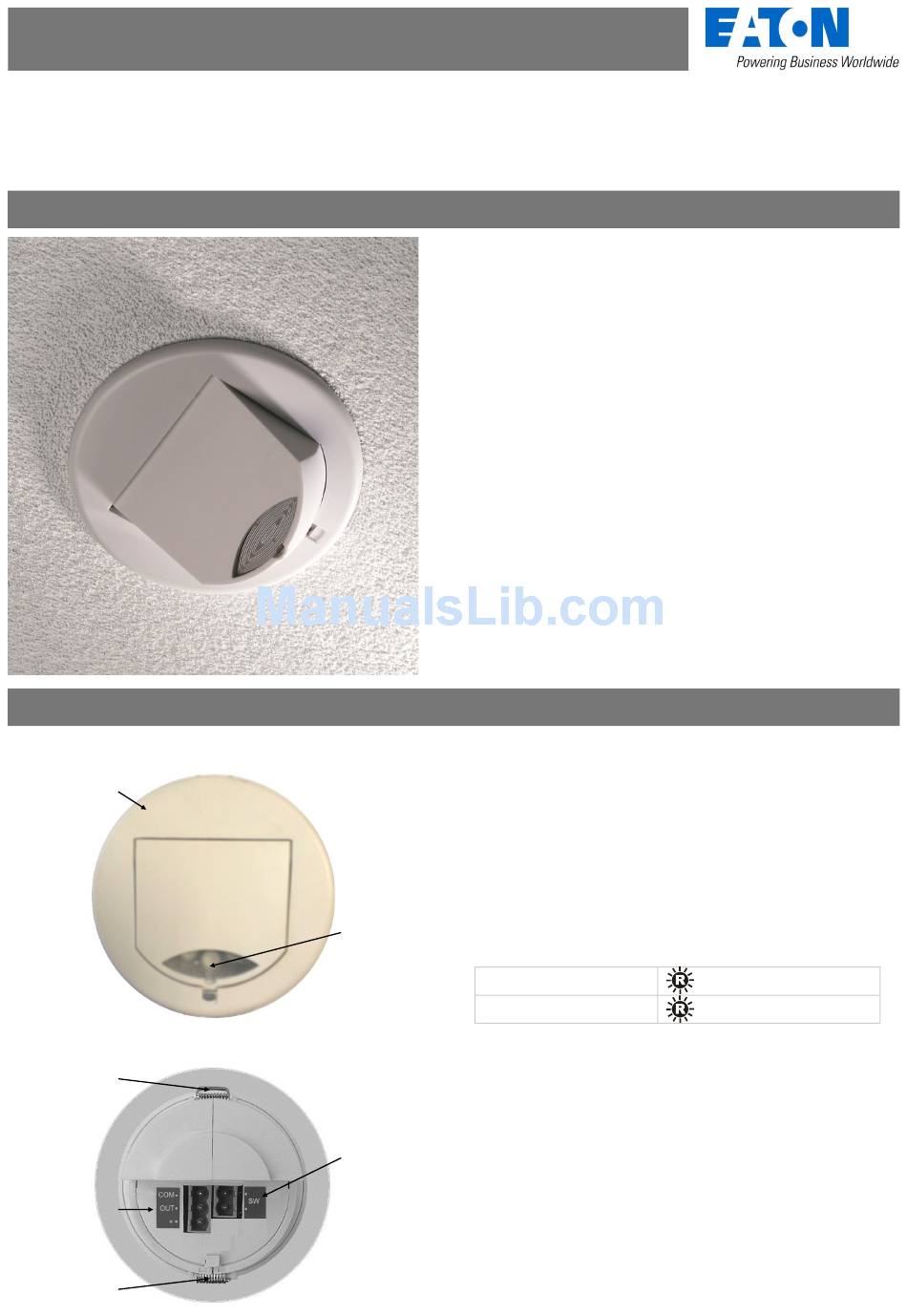

Front features
Mounting Bezel
Back features
Retaining Spring
Power Input &
Output
Connector
Retaining Spring
Product Guide
The MPAD-C-A 12-24V Microwave presence detector
provides automatic control of low voltage loads including
lighting and BMS systems with optional manual control. The
MPAD-C-A 12-24V detects movement using a highly
sensitive microwave detector. This works by emitting low
power microwave signals and measuring the reflections as
the signals bounce off moving objects.
Functioning as a presence detector, the unit can turn lights
on when a room is occupied and off when the room is
empty. Optional settings allow lights to be turned off in
response to ambient daylight.
The MPAD-C-A 12-24V has a unique adjustable sensor
head that allows the area of detection to be optimised for
the application.
All functionality is fully programmable using an IR handset.
Microwave Sensor
Detects movement within the unit's detection range,
allowing load control in response to changes in occupancy.
IR Receiver
Receives control and programming commands from an
IR (infrared) handset.
Light Level Sensor
Measures the overall light level in the detection area
Status LEDs
Sensor Lens
which covers...
The LED flashes Red to indicate the following:
Microwave Sensor
Walk Test LED active
IR Receiver
Light Level Sensor
Valid setting received
Status LEDs
Power Input & Output Connector
Used to connect power to the unit and to connect a
switched load.
Switch Input Connector
Two input terminals can be used to manually override the
lights on or off.
Switch Input
Connector
Overview
Features
when movement is detected
