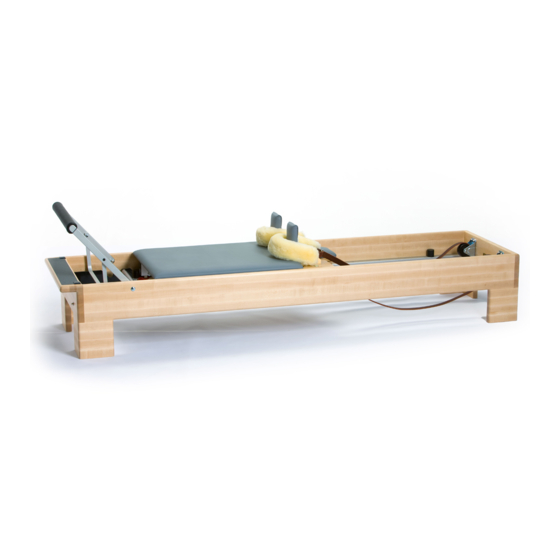

Balanced Body Ron Fletcher Reformer Quick Start Manual

Balanced Body Ron Fletcher Reformer Quick Start Manual

Advertisement

How to assemble your Ron Fletcher Reformer

IN CASE OF FREIGHT DAMAGE
If there is freight damage, make certain you keep all packaging
material. Please call Balanced Body within three business days.
PARTS LIST (INCLUDED):
Description
Short Foot Strap
Wool Fuzzies
Extension Stopper
Shoulder Rest
Standard Sitting Box
Leather Straps
Extension Straps (pair)
4-Hook Springbar
Red Springs Open Hooks
SHOULDER REST HARDWARE
Item Description
A
Flat Head Allen Bolt 1/4-20 x 2 3/4
B
Eyebolt
C
Large Washer 1/4"
D
Small Washer
E
Finish Washer
F
1/4" Lock nut
TOOLS NEEDED
(NOT INCLUDED):
» Flathead Screwdriver
» 7/16" Wrench or adjustable
end wrench
Part Number
Qty
101-111
1
101-022
1
200-211
1
707-087
1
721-002
1
950-052
1
101-010
1
950-054
1
SPR9007
4
Part Number Qty
GEN9249
2
GEN9231
2
GEN9204
4
GEN9305
2
210-050
2
GEN9021
4

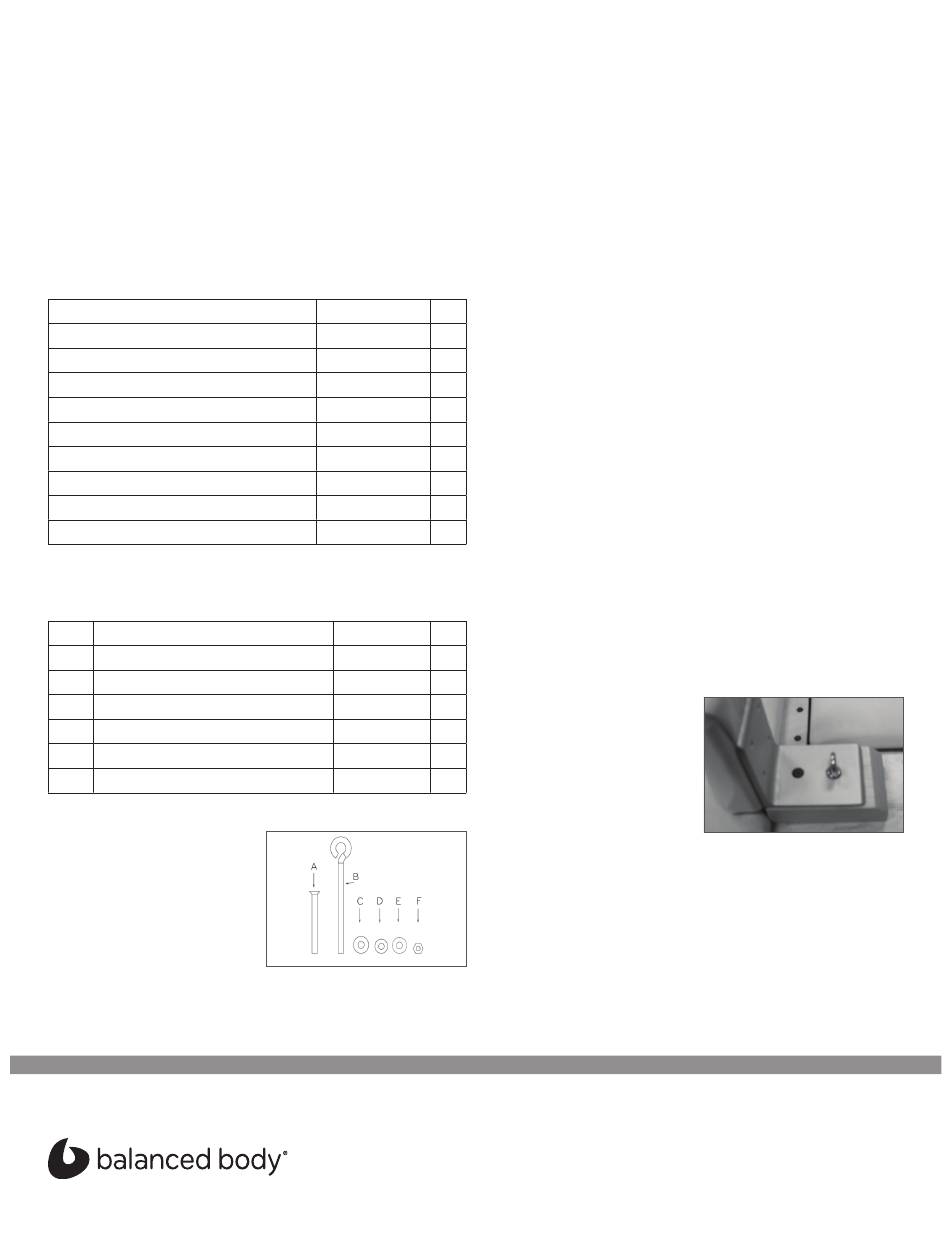

Figure A

INSTALL THE CARRIAGE

Turn the carriage over and clean all the wheels of shipping dust,
etc. Clean the full length of the rail surfaces inside the frame.
Carefully place the carriage into the frame with the headrest
facing away from the footbar.

ATTACH THE SPRINGS

To attach the springs, hook them to the eyebolts on the
underside of the carriage. The hooks of the spring should be
facing downward. Place the spring bar into the gear slots located
inside the frame near the footbar. Make sure the eyebolts are
facing the carriage. Move the carriage toward the foot-end of the
Reformer and attach the springs to the eyebolts on the spring
bar.

INSTALL THE SHOULDER RESTS

1. Position the shoulder rest with the metal flange over the
drilled holes in the wooden block next to the headrest.
2. Install the Allen bolt in the hole closest to the shoulder rest.
(Figure B.)
3. Install the eyebolt with the finish washer and a small washer
into the other hole. See Figure B.
4. On the underside of the
carriage, put one large
washer and a hex nut on
the end of the Allen bolt
and eye bolt and tighten.
Figure B
Contact Us
1-800-PILATES | +1-916-388-2838
pilates.com | info@pilates.com
400-116 | 12.28.18
