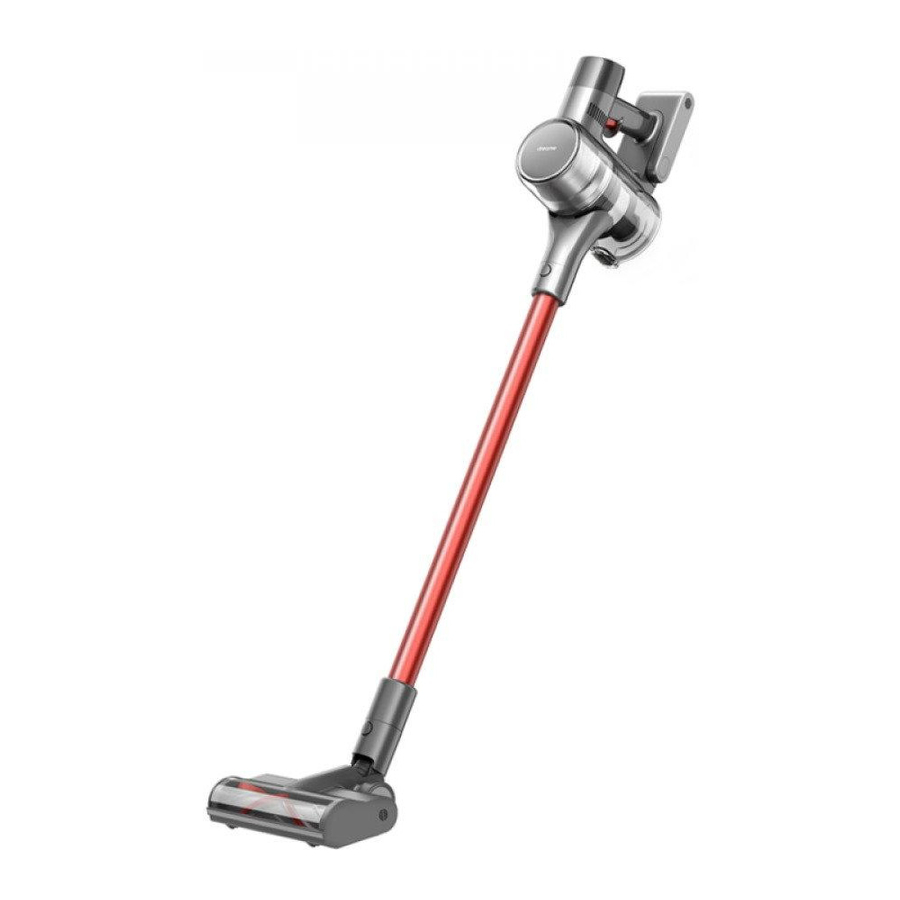

- Page 1 Dreame T20 Cordless Vacuum Cleaner...
-
Page 2: Table Of Contents
Index Specs ....................... 3 1. How many suction modes does the T20 have, and what is the suction power for each mode? ................3 2. What accessories is T20 compatible with, and what are they for? ..3 3. What is the weight of T20? ..............4 4. -
Page 3: Specs
Specs How many suction modes does the T20 have, and what is the suction power for each mode? Dreame T20 is equipped with three suction modes: Eco (suction power: 15 AW), Med (suction power: 36 AW), and Turbo (suction power: 150 AW). -
Page 4: What Is The Weight Of T20
T20 is equipped with seven 3000mAh batteries. (seven 2700mAh batteries for Chinese Taiwan). What is the highest suction power of T20? The max suction of T20 is 150 AW with a vacuum degree of 25 KPa. What is the decibel noise when T20 is running? Suction Modes... -
Page 5: What Is The Motor Speed Of T20
Can T20 memorize the suction mode and electronic self-lock after powered off? Yes. Why T20 and V11 has the same battery volume, but T20 works shorter than V11 at eco mode? Because T20 has bigger suction power at eco mode, which is 15AW, yet V11 has 13AW at eco mode. -
Page 6: How Long Does It Take To Fully Charge T20
25min 40min brush How long does it take to fully charge T20? Approximately 4 hours for versions of EU, America, Australia, Britain, Japan and Korea, 3.5 hours for Chinese Taiwan version. While charging, the current battery status will be displayed on screen in... -
Page 7: What Should I Do With The Batteries If I Am Not Going To Use Them For A
What should I do with the batteries if I am not going to use them for a long time? It is recommended to fully charge T20 before storing it in dry and cool places. If you are going to store it for a long time, we also recommend you to fully charge it every 3 months to prevent the battery from over- discharging. -
Page 8: Accessories
Accessories How to install the T20 vacuum? ① Connect the main brush with extension rod When connecting, hold the main brush, insert the mounting hole under the extension rod into the soft roller brush vertically, and align the conductive pin until you hear a "click" sound, indicating the installation is finished. - Page 9 c. Align the limit area of the suction head of the soft roller brush with the limit area of the water tank, and use the magnet to attract the water tank d. Suitable for vacuuming and mopping on the floor or tiles...
-
Page 10: How To Clean The Dust Cup
Notes: ● Do not step on the water tank to prevent it from breaking apart. ● When the ground is dirty, it is recommended to vacuum the ground before mopping. ● Do not use the mopping function on carpets. ● Do not add cleaning or disinfectant to prevent the water tank from clogging. -
Page 11: How To Wash The Dust Cup And Filtration System
How to wash the dust cup and filtration system? ① Push the dust compartment release switch in the direction indicated by the arrow, then gently remove the dust compartment from the vacuum cleaner. ② Remove the pre-filter first, then lift the handle of the cyclone assembly and turn to counterclockwise until it stops, then pull to lift out the cyclone assembly. -
Page 12: Hong Often Do I Need To Replace The Filter? Is The Filter Washable
③ Rinse the cyclone assembly, pre-filter and dust compartment until they are clean. After washing, air dry at least 24 hours Hong often do I need to replace the filter? Is the filter washable? ① Wash: It is recommended to wash the cyclone module, built-in foam and HEPA filter in every 3-4 month before replacing them with a new one. -
Page 13: How To Install And Detach The Dust Cup And Hepa Filter
② Dry: Make sure the HEPA filter and foam are fully dried for about 24 hours before installation and use. How to install and detach the dust cup and HEPA filter? How to clean and wash the roller brush? (1) Clean the soft roller brush(for versions of Japan, Korea, Chinese Taiwan): ①... - Page 14 Tips: you can use a tool for levering. ② Use scissors to pick up hair or fibers wrapping on the comb and cut them off. Use dry cloth or paper to clean the dust on the compartment and plastic cover. ③...
- Page 15 ④ Put the comb vertically and make sure it is dry for at least 24 hours. (2) Clean the all-surface brush(For versions of EU, America, Australia, Britain) ① Toggle the lock counterclockwise to the stop position as illustrated and detach the comb from the roller brush.
-
Page 16: Operation
② Clean Comb: clean the fibers and hair tangled on the comb. ③ Battery Run Down: charge the vacuum as soon as possible. ④ Battery Overheating: wait for the battery to cool down before use. ⑤ Error: contact aftersales@dreame.tech for repairing. -
Page 17: Why Is The Suction Power Fading
④ If the airduct is not clogged at all, it may be caused by motor issues. Please contact aftersales@dreame.tech for repairing. Why does the brush fail move around? Check if the brush is clogged. If yes, remove the foreign matters; if not, contact aftersales@dreame.tech... -
Page 18: Why Does The Water Fail To Come Out From The Water Tank
Why does the water fail to come out from the water tank?(For versions of Japan, Korea, Chinese Taiwan) Check if the water tank switch is on. If it is on yet no water comes out from the water tank, contact aftersales@dreame.tech for help. Precautions What and where can a vacuum clean? ①...
