Static Or Dynamic Ip - Draytek Vigor2865 Series Quick Start Manual

4 . 3 . 2 S t a t i c o r D y n a m i c I P
4 . 3 . 2 S t a t i c o r D y n a m i c I P

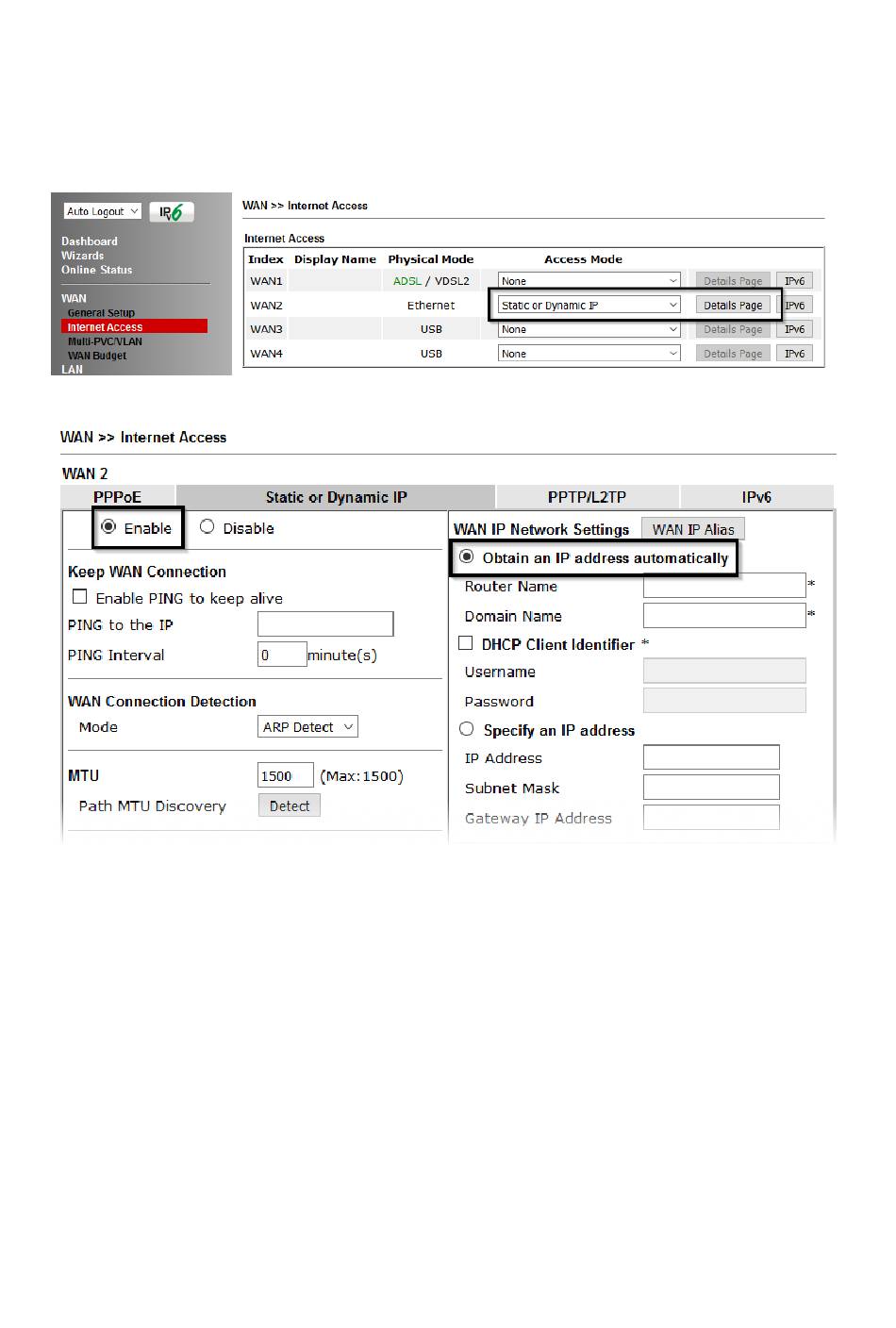

1. Go to [WAN] > [Internet Access]
Set the WAN2 Access Mode to Static or Dynamic IP, then click the Details Page
button to proceed:
2. In the Static or Dynamic IP settings:
Select the Enable option and select Obtain an IP address automatically which will
obtain an IP from the ISP with DHCP.
If your ISP has provided a static IP range, with a Network address and a Subnet Mask,
specify that with the Specify an IP address option.
Click OK on this page to apply the changes and the router will then prompt to restart.
Click to restart the router.
Once the router has restarted, log back into the web interface and select [Online
Status] > [Physical connection], if it has connected, the relevant WAN Interface
status text will be in green along with an IP address which indicates that the
connection is active and ready for use.
