Vapotherm Oxygen Assist Module Quick Reference Manual

For precision flow systems

Hide thumbs Also See for Oxygen Assist Module:

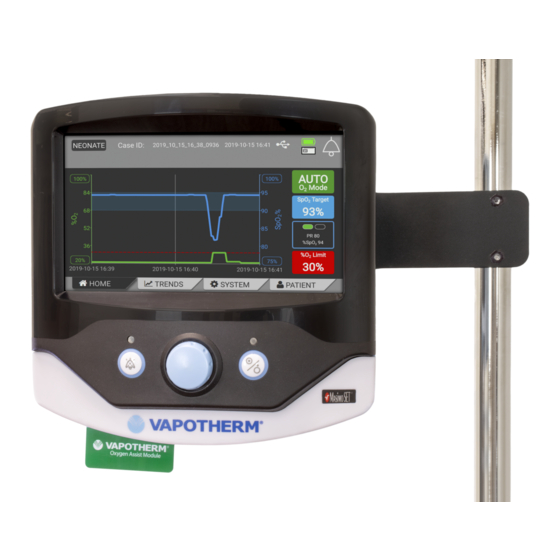

Oxygen Assist Module

for Vapotherm Precision Flow® Systems

Q U I C K R E F E R E N C E G U I D E

Alarm Silence

LED

Alarm Silence

Button

Setting Control

Knob

This guide provides you with basic instructions on how to set up and

operate the Vapotherm Oxygen Assist Module for Precision Flow®

Systems. Before operating the Vapotherm Precision Flow® with the

Oxygen Assist Module, please review the Instructions for Use which

can be found at our website vtherm.com/pfreference.

Touchscreen

Display

On/Off LED

On/Off Button

Table of Contents

Need help?

Do you have a question about the Oxygen Assist Module and is the answer not in the manual?

Page 1 This guide provides you with basic instructions on how to set up and operate the Vapotherm Oxygen Assist Module for Precision Flow® Systems. Before operating the Vapotherm Precision Flow® with the Oxygen Assist Module, please review the Instructions for Use which can be found at our website vtherm.com/pfreference.
Page 2 Alert may self-correct. If not, enter MANUAL Mode, or End Case Communication Error Check settings. Press any key, touch screen or turn setting control knob System Reset - Check Settings A full list of Alarms and Advisory Messages can be found in the Vapotherm Oxygen Assist Module Instructions for Use.
Page 3 INDICATIONS, WARNINGS AND CAUTIONS Primary Indications: The Oxygen Assist Module is an optional module used only with the Vapotherm Precision Flow and is indicated for on-demand titration of oxygen into warm humidified breathing gases delivered to spontaneously breathing patients based on continuous non-invasive monitoring of blood oxygen saturation.
Page 4 Oxygen Assist Module is not life supporting. • Incorporation of SpO2 into the Precision Flow with the Oxygen Assist Module does not eliminate the need for separate and independent patient monitoring indicated by the Precision Flow system labeling. Patients on high velocity nasal insufflation receiving supplemental oxyen are acute and appropriate clinical vigilance should be observed by the care team.
