AXIOMTEK DSP500-523 Series Quick Installation Manual

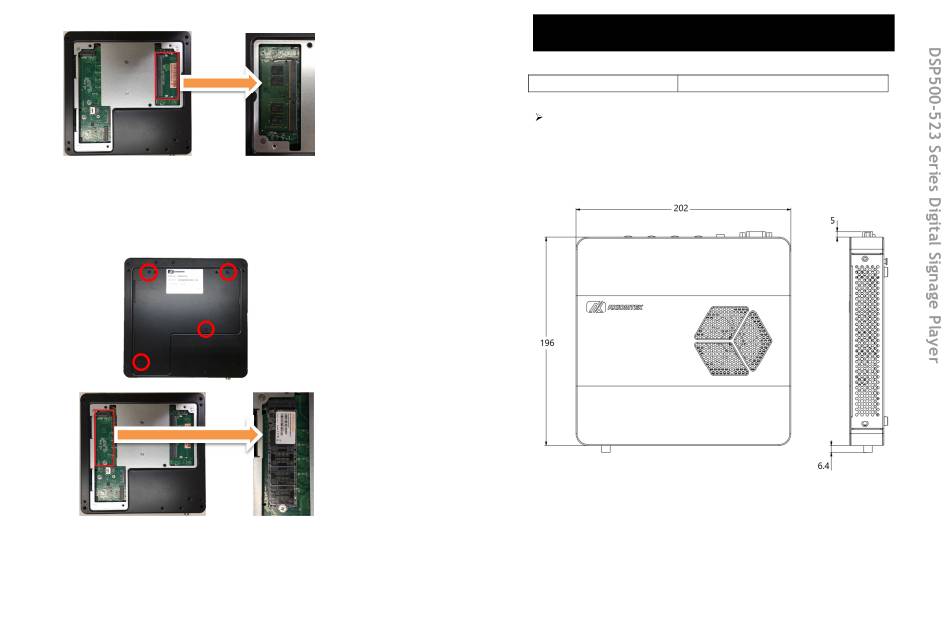

Step 4 Locate the memory module, insert a gold colored contact
into the socket and push the module end latches till locked.
Step 5 Put the bottom cover back and fasten all screws back onto
the system.

3 Installation of M.2 Storage Device

Step 1 Turn off the system and unplug the power cord.
Step 2 Turn the system upside down to locate screws at the bottom
and then loosen four screws. Open the BOTTOM cover.
Step 3 Located the M.2 socket on main board.
Step 4 Identify the M.2 slot, insert a M.2 module into the socket and
then fasten a screw.
Step 5 Put the BOTTOM cover and fasten all screws back to the
system.
4 ©Copyright 2020 Axiomtek Co., Ltd.
Version A1 November 2020
Printed in Taiwan
9412K500000E

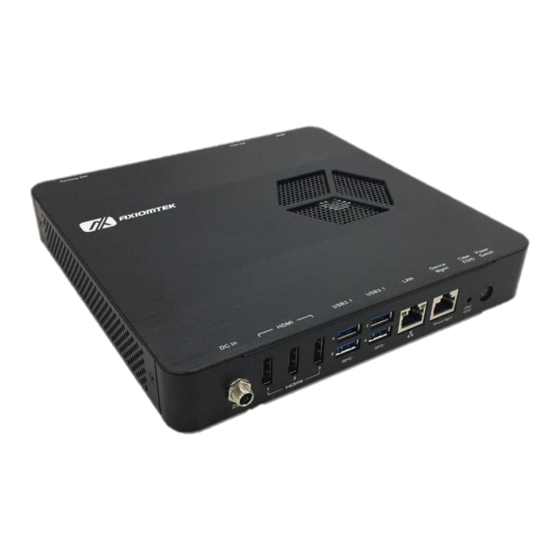

DSP500-523 Quick Installation Guide
Packing List
System Unit x 1 84W power adapter x 1
Do not try to apply power to the system if any damaged components.
Dimensions
©Copyright 2020 Axiomtek Co., Ltd.
Version A1 November 2020
Printed in Taiwan
9412K500000E
1
