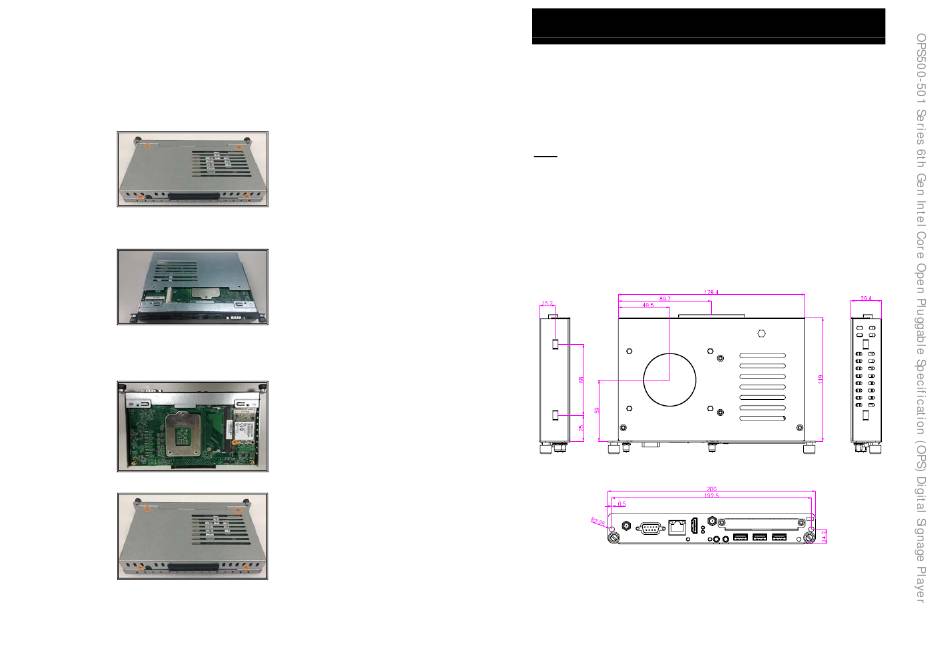

AXIOMTEK OPS500 Series Quick Installation Manual

Installing the Mini PCIe cards
The OPS500 series provides one Mini card slot for user to install
mSATA/ wireless LAN cards, please refer to the following
instructions and illustration.
Step 1 Loosen the screws per illustrated.
Step 2 Then open the cover carefully.
Step 3 You can find the position of Mini PCIe slot and please
insert it then fasten screw by yourself.
Step 4 Fasten all of screws with bracket to finish installation.
4 9412M500020E
©
Copyright 2016 Axiomtek Co., Ltd.
Version A1 October 2016
Printed in Taiwan
OPS500-501 Quick Installation Guide
Checklist
 OPS module x 1  Driver Disc x 1
 M4 x 6 screw x 2  M2 x 5 screw x 2
 Quick Installation Guide x1  Thermal Grease x 1
Note: Please contact your local vendors if any damaged or missing items. DO
NOT apply power to the board if there is any damaged component.
Please refer to the product information CD for the complete user's
manual, drivers and utilities. User's manual and related documents are
in Acrobat PDF format.
Dimensions
9412M500020E
©
Copyright 2016 Axiomtek Co., Ltd.
Version A1 October 2016
Printed in Taiwan
1
