T942C and T942C/2 Central Unit
2
Run the wiring out through the partition.

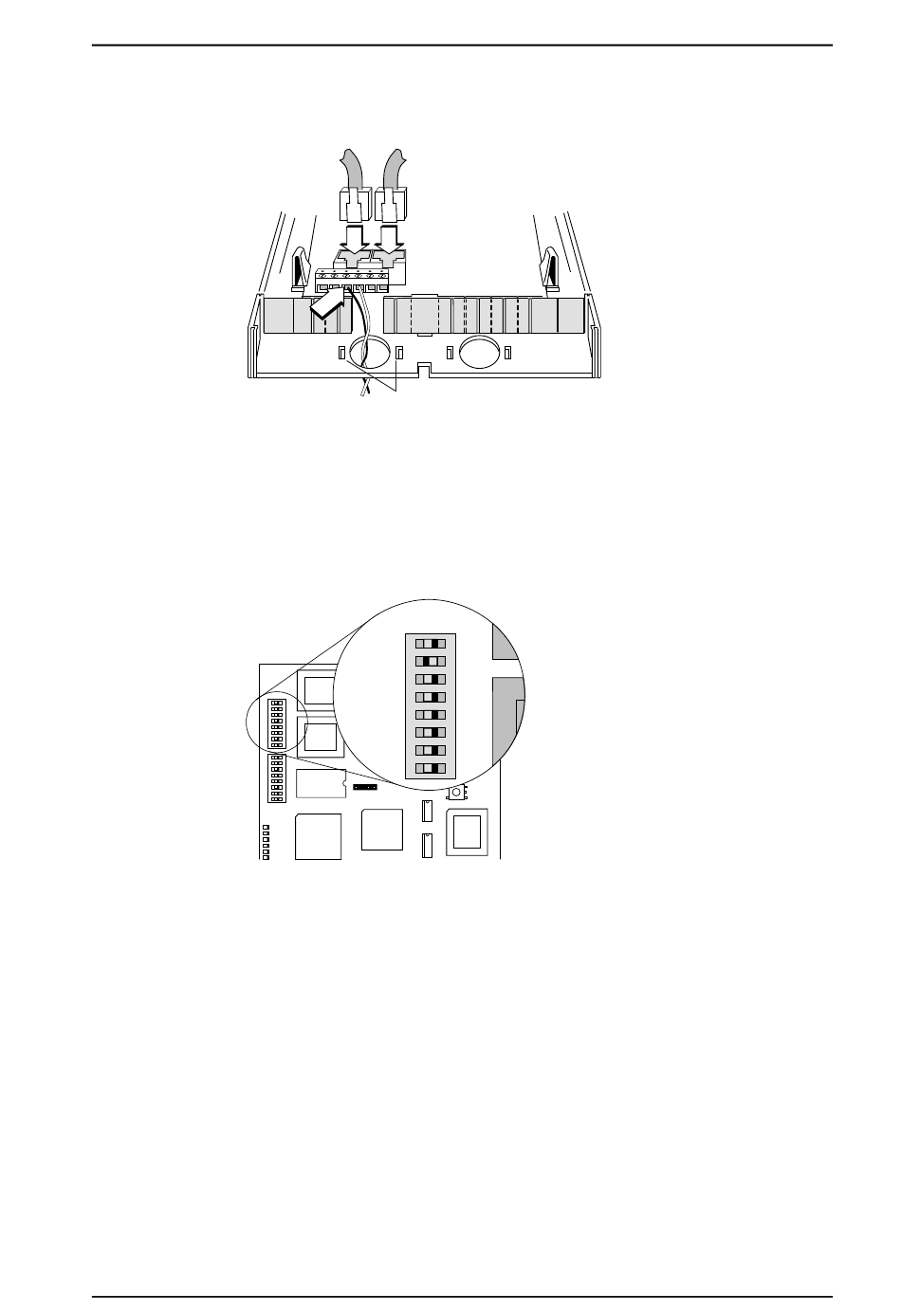

Figure 10. Wiring of modular or twisted pair cabling, 1 and 2.
3
Use the slots at the opening to secure the wiring with cable straps.
1.4.5
Addressing
Assign the T942C an address on the C-bus by setting address switch SW01 hexadecimally.
See the System Installation document, chapter Addressing.
Figure 11. Addressing on T942C
• If no additional units are connected to the C-bus: Assign the Central Unit address 00.
• If additional units are connected to the C-bus, the address must not be the same as any
other unit on the C-bus. Note that units on the C-bus must always be assigned addresses
in ascending order starting with 00.
16 April 2015 / Ver. G
1
1
1
2
3
4
5
6
2
Slots
OFF
ON
1
SW01
8
TD 91684GB
11
