Installation Guide
T942C and T942C/2 Central Unit
1.4.4

Wiring Runs

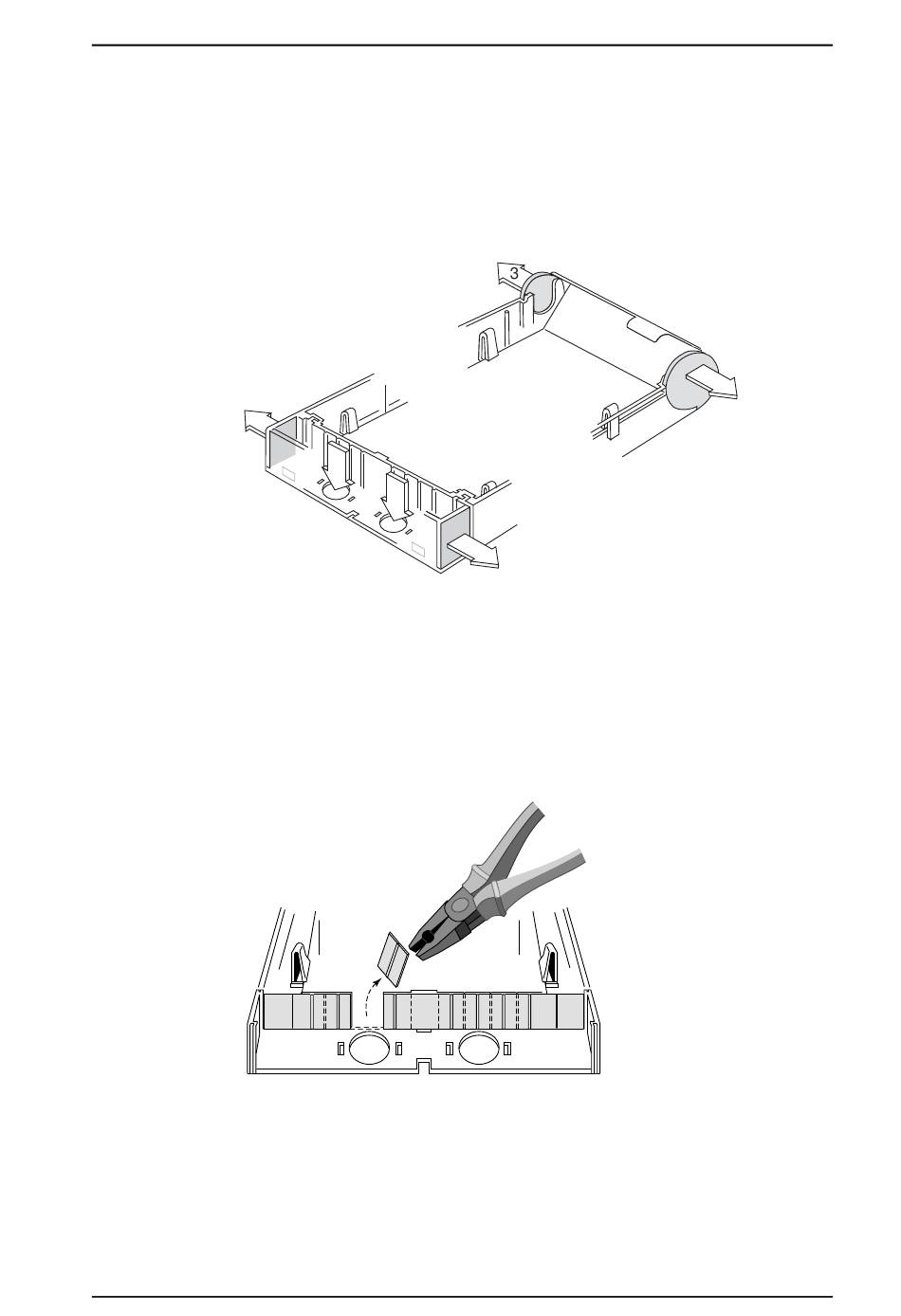

Wiring can be run three ways from the unit:
• Remove the rectangular covers and run the cabling out through the side (1).
• Run the cabling through the round holes at the back of the case (2).
• Remove the circular covers at the top of the side case (3).
1
IMPORTANT: Do not make any openings at the bottom of the front cover since this does not
The plastic partition is scored to facilitate breaking at convenient intervals.
1 Use pliers to break off a suitable section.
Figure 9. Scored plastic partition for breaking.
16 April 2015 / Ver. G
2
2
comply with the fire enclosure requirements.
1
TD 91684GB
3
10
