Installation Guide
T942C and T942C/2 Central Unit
1.4
Installation
T942C should be placed in a dry environment with a temperature range of 0 to +40°C.
1.4.1
Mounting
IMPORTANT: The unit must be mounted by trained personnel.
IMPORTANT: The unit must be mounted to a solid vertical wall with the bottom facing the

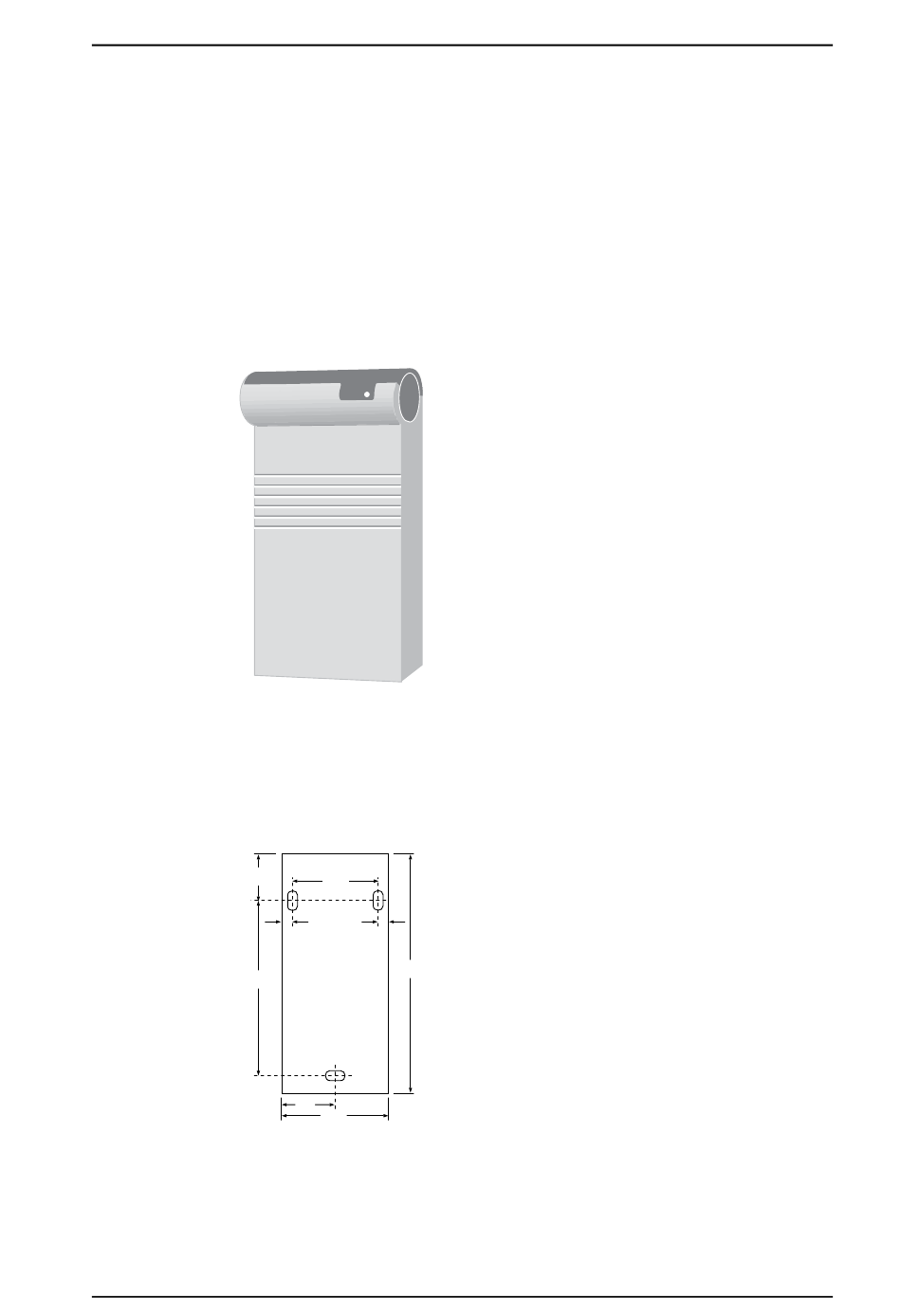

The illustration below shows the dimensions in mm for mounting the unit.
56.5
188.5
Figure 4. Mounting dimensions in mm.
NOTE: To facilitate service after the unit is installed, we recommend a free space of about
150 mm above and 50 mm below the unit.
16 April 2015 / Ver. G
floor.
Top
Bottom
Dimensions (H x W x D)
275 x 130 x 60 mm
112
9
9
275
65
130
TD 91684GB
7
