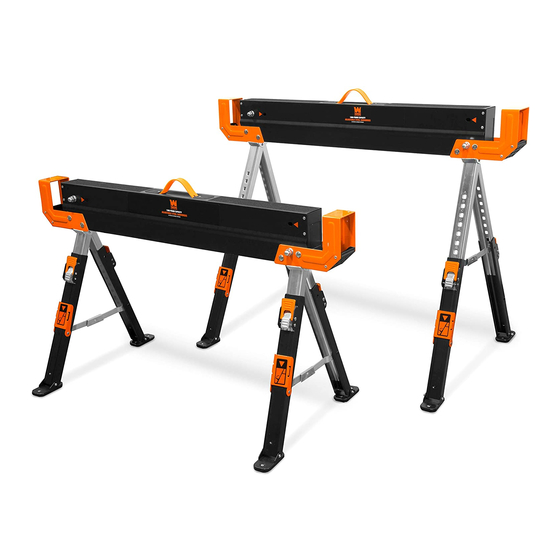

MODEL WA1300, WA1300-2
1300-POUND CAPACITY
STEEL SAWHORSE
Instruction Manual
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to contact us:
1-800-232-1195 (M-F 8AM-5PM CST)
TECHSUPPORT@WENPRODUCTS.COM
IMPORTANT: Your new tool has been engineered and manufactured to WEN's highest standards for dependability,
ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged,
trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use
your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.
WENPRODUCTS.COM
For replacement parts and the most up-to-date instruction manuals, visit
Advertisement
Table of Contents
Related Manuals for Wen WA1300
Summary of Contents for Wen WA1300
- Page 1 1-800-232-1195 (M-F 8AM-5PM CST) TECHSUPPORT@WENPRODUCTS.COM IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for dependability, ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.
-
Page 2: Table Of Contents
CONTENTS WELCOME Introduction ..................... 3 Specifications ....................3 SAFETY General Safety Rules ..................4 BEFORE OPERATING Kmow Your Sawhorse ..................6 Assembly & Adjustments ................. 7 OPERATION & MAINTENANCE Operation ......................8 Maintenance ......................9 Exploded View & Parts List ................10 Warranty Statement ..................12 WENPRODUCTS.COM To purchase replacement parts and accessories for your tool, visit... -
Page 3: Welcome
INTRODUCTION Thanks for purchasing the WEN Sawhorse. We know you are excited to put your tool to work, but first, please take a moment to read through the manual. Safe operation of this tool requires that you read and understand this op- erator’s manual and all the labels affixed to the tool. -
Page 4: Safety
GENERAL SAFETY RULES WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 5 GENERAL SAFETY RULES WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
-
Page 6: Before Operating
KNOW YOUR SAWHORSE TOOL PURPOSE Support all types of projects and work pieces with your sawhorse. Refer to the following diagrams to become fa- miliarized with all the parts of your sawhorse. The components will be referred to later in the manual for assembly and operation instructions. -
Page 7: Assembly & Adjustments
ASSEMBLY & ADJUSTMENTS UNFOLDING THE SAWHORSE Fig. 1 1. Turn the unit upside down. 2. Extend the first leg (Fig. 1 - 1) by pressing its respective lock button (Fig. 1 - 2) to release the leg. 3. Rotate the legs out from the worktop body. Pull the legs apart from each other so that they are stable and perpen- dicular to the worktop body (Fig. -
Page 8: Operation & Maintenance
Fig. 6 JOBSITE TABLE A quick and sturdy worktable can be made by joining the power of two WA1300 sawhorses, a couple of 2x4s, and some plywood. To create the table, insert two 2x4s of similar length (Fig. 6 - 1) into the sawhorses’ side brackets (Fig. 6 - 2), span- ning the two sawhorses. -
Page 9: Maintenance
MAINTENANCE ROUTINE INSPECTION Before each use, inspect the tool. If any of these following conditions exist, do not use until parts are replaced. Check for: • Loose hardware or improper mounting • Misalignment • Cracked or broken parts • Any other condition that may affect its safe operation CAUTION! Most plastics are susceptible to damage from various types of commercial solvents. -
Page 10: Exploded View & Parts List
EXPLODED VIEW & PARTS LIST... - Page 11 EXPLODED VIEW & PARTS LIST PART NO. DESCRIPTION QTY. WA1300-001 M10x88 Bolt WA1300-002 Side Panel WA1300-003 Grip Cover WA1300-004 M10x93 bolt WA1300-005 Worktop WA1300-006 Right Side Braket with Hole WA1300-007 Washer Ø10 WA1300-008 Spring washer Ø10 WA1300-009 Acorn Nut M10...
-
Page 12: Warranty Statement
WARRANTY STATEMENT WEN Products is committed to building tools that are dependable for years. Our warranties are consistent with this commitment and our dedication to quality. LIMITED WARRANTY OF WEN PRODUCTS FOR HOME USE GREAT LAKES TECHNOLOGIES, LLC (“Seller”) warrants to the original purchaser only, that all WEN consumer power tools will be free from defects in material or workmanship during personal use for a period of two (2) years used for professional or commercial use.
