Wen LA4444 Instruction Manual

Wen LA4444 Instruction Manual

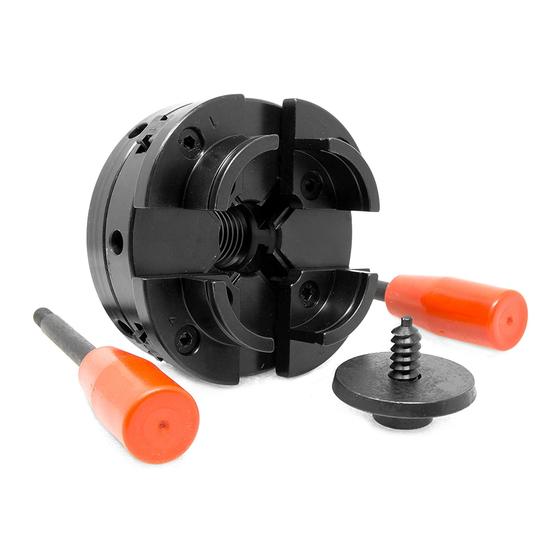

4-inch 4-jaw self-centering lathe chuck

Advertisement

Quick Links

EXPLODED VIEW & PARTS LIST
1
3
2
5
15
14
No.
Part No.
Description
1
LA4444-001
Scroll Screw
2
LA4444-002
Retaining Ring
3
LA4444-003
Jaw Carriage 3
4
LA4444-004
Jaw 3
Jaw-Mounting Screw,
5
LA4444-005
Socket-Head, M6x8
6
LA4444-006
Chuck Body
Stop Screw,
7
LA4444-007
M4-0.7x8
HAVE PRODUCT QUESTIONS? NEED TECHNICAL SUPPORT?
1-800-232-1195 (M-F 8AM-5PM CST)
This item has a 2-year warranty - for the full warranty statement, please visit wenproducts.com.
Replacement jaws and the most up-to-date instruction manuals can be found on wenproducts.com.
4
5
4
6
9
7
8
13
12
5
Qty.
No.
Part No.
Description
1
Screw Chuck,
8
LA4444-008
M10-3.0x20
1
9
LA4444-009
Jaw Carriage 4
1
10
LA4444-010
Jaw 4
1
11
LA4444-011
Chuck Key
8
12
LA4444-012
Jaw 1
1
13
LA4444-013
Jaw Carriage 1
14
LA4444-014
Jaw 2
1
15
LA4444-015
Jaw Carriage 2
Please feel free to contact us:
TECHSUPPORT@WENPRODUCTS.COM
INSTRUCTION MANUAL
10
KNOW YOUR LATHE CHUCK
5
Packing List
2
11
Your chuck is designed to aid in holding wooden
workpieces on your lathe, and is capable of gripping
on both the outside and inside of various workpieces.
Qty.
EXTERNAL GRIP VS INTERNAL GRIP
1
The external grip is applied on the exterior of the
workpiece, while the internal grip is applied on the
1
interior of the workpiece. See Figures 1 & 2.
1
DOVETAIL JAWS
Your chuck has dovetailed jaws that are suitable for
2
gripping a recess or tenon prepared in your work-
1
piece for clamping. Ensure that the recess or tenon
prepared has a flat base so that it can rest flush
1
against the flat surface of the chuck jaws. For the di-
1
mensions of your chuck's dovetailed jaws, see Fig. 3.
1
Visit wenproducts.com and search the phrase
"wood lathe" to purchase live centers and other
lathe accessories.
V. 2019.09.26
SELF-CENTERING LATHE CHUCK
Compatible with all WEN Wood Lathes
Mounting Thread
Screw Chuck Thread
3
Jaw Type
External Grip Range (Fig. 1)
Internal Grip Range (Fig. 2)
Self-Centering
1
4
1) Chuck ......................1
2) Screw Chuck ............1
External Grip
Internal Grip
MODEL LA4444
4-INCH 4-JAW
1"-8
M10-3.0x20
Dovetail, 2" to 2-3/4"
1-5/8" to 2-3/8"
2" to 2-3/4"
Yes
3) Chuck Key Handle ....2
4) Chuck Key Rod ........2
Fig. 1
Fig. 2
