Next, the controller checks for and initializes any optional modules that may be attached to the system.
Optional Modules Check
- UV Sensor
- Solenoid
- 4-20 mA
- WIFI
- Remote Alarm
- Flow Meter

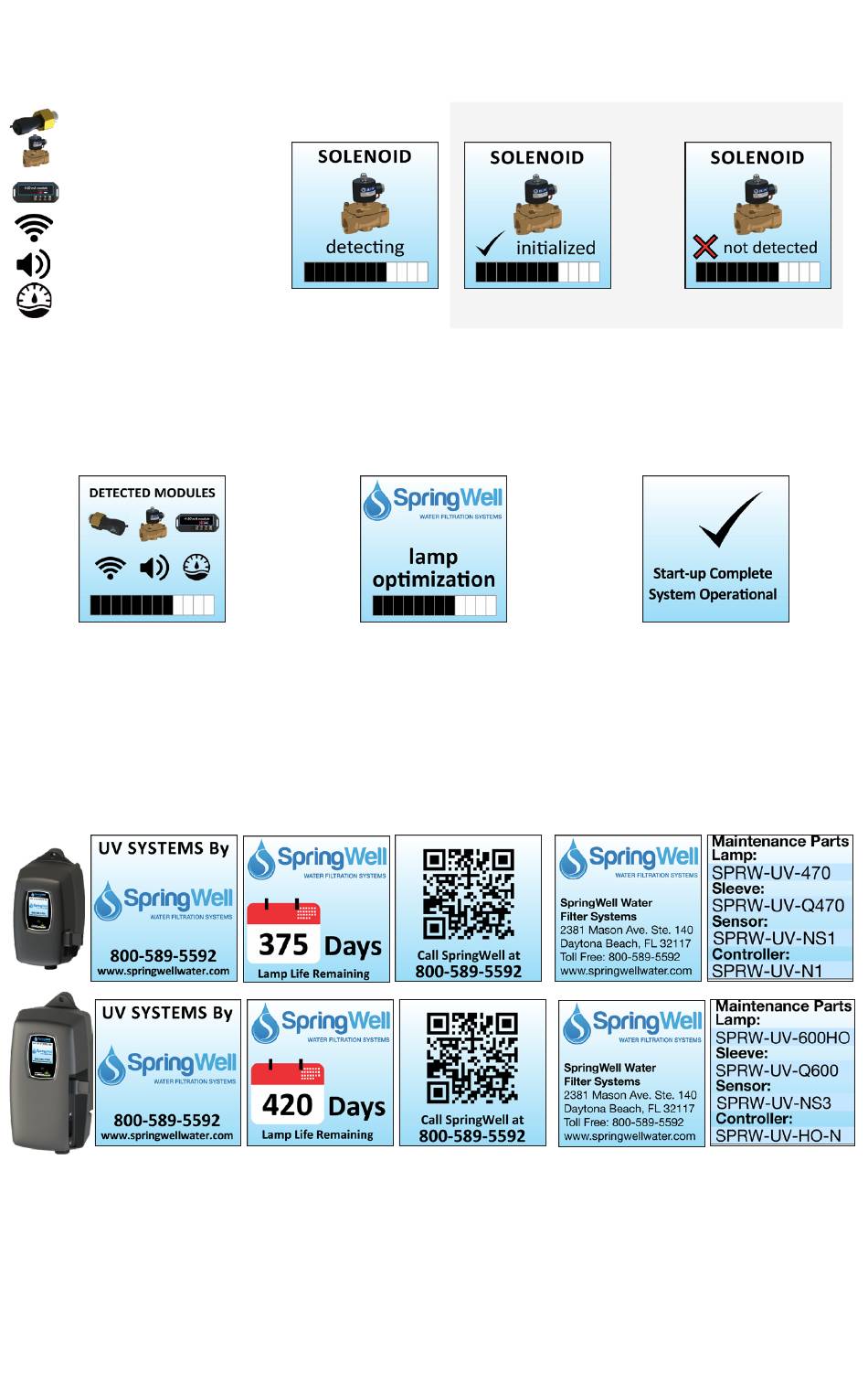

A final module screen is displayed showing which specific modules were initialized.
The controller then displays the lamp optimization screen for 60 seconds to allow the lamp to
reach its optimum output. Finally, a final "start-up complete" screen is displayed. The system will
now be ready to disinfect water flow.
all detected modules

UV5 Operational Screens

On systems without the UV monitor, the default screen shows the Home Screen. At any point
during operation the user is able to scroll through the Home Screen, Lamp life remaining, QR
Code, Contact Info and Maintenance Parts screens by pressing the button located on the front
of the controller.

UV6 Operational Screens

On systems with the UV monitor, the system will display the same screens as on the UV5 except the
UV Intensity replaces the home screen. The UV Intensity screen displays the level of UV light detected
by the sensor. UV intensity can be affected by poor water quality, scaling on the quartz sleeve and/or
sensor, lamp failure or lamp expiring. The following screens show the UV Intensity dropping.
1 4 | P a g e
lamp reaching max output
OR
successful start-up
