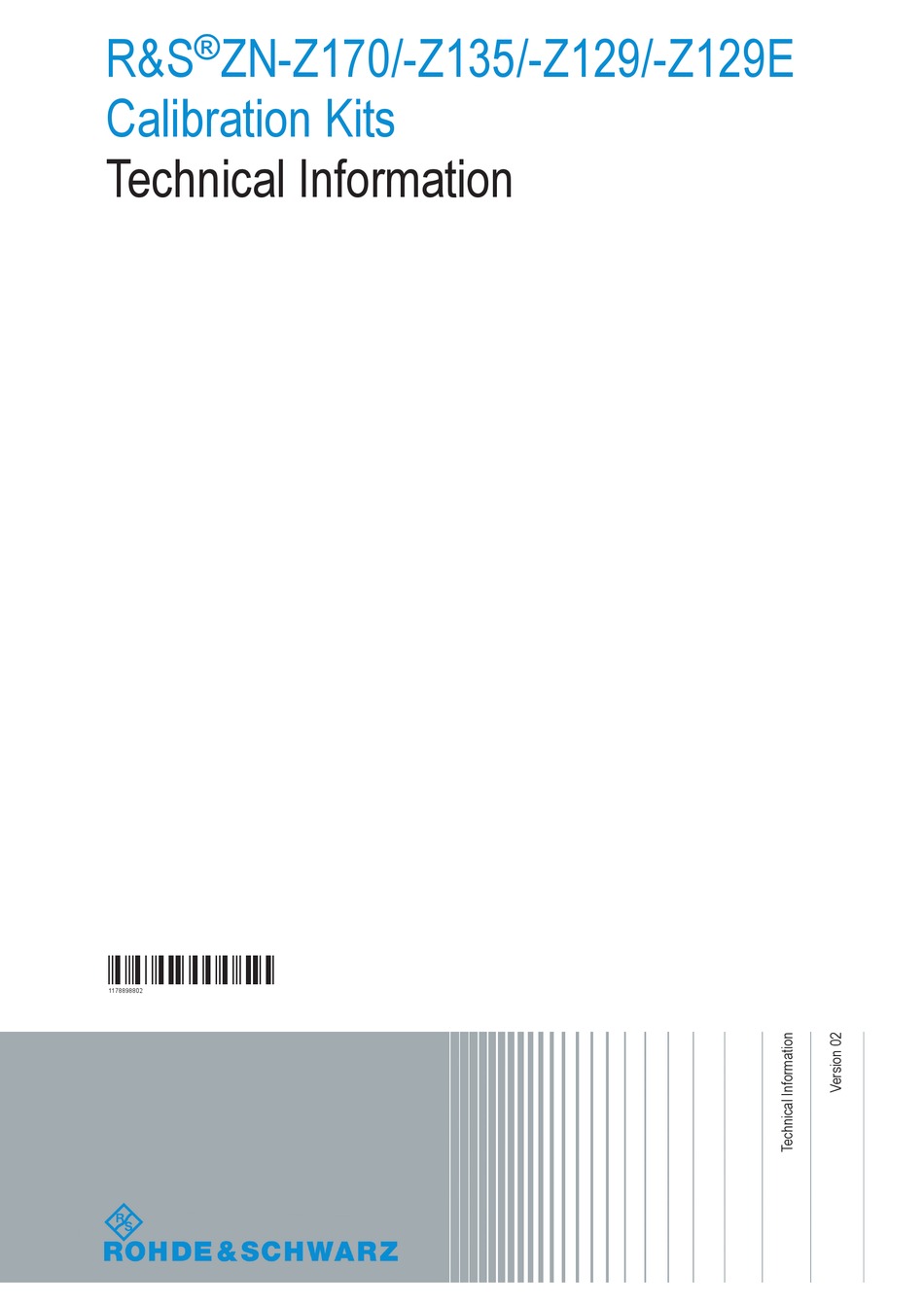

- Page 1 ® R&S ZN-Z170/-Z135/-Z129/-Z129E Calibration Kits Technical Information (;Üçæ2) 1178898802...
- Page 2 This technical information is valid for the following Rohde & Schwarz calibration kits: ● ® R&S ZN-Z170, Calibration Kit N (male), DC to 18 GHz, order no. 1328.8163.02 ● ® R&S ZN-Z170, Calibration Kit N (female), DC to 18 GHz, order no. 1328.8163.03 ●...
- Page 3 ® Calibration Kits R&S ZN-Z1xx R&S ZN-Z170/-Z135/-Z129/-Z129E 1 Calibration Kits R&S ZN-Z1xx Products R&S ZN-Z1xx are calibration kits for Rohde & Schwarz vector network ana- lyzers. Calibration of Rohde & Schwarz network analyzers is a fully menu-guided process. For details, refer to the user manual or integrated help of your network analyzer. The tech- nical specifications of the calibration kit are listed in the data sheet.
- Page 4 R&S ZN-Z129E R&S ZN-Z135 3.5 mm 8 mm 1328.8534.35 R&S ZN-Z170 20 mm 1328.8534.71 When the calibration kit is connected, support the equipment properly to relieve the connections from any bending torque caused by the connected components or cables. To disconnect your calibration kit, unfasten the coupling nut with an open-end wrench.
- Page 5 ® Gauging the Connectors R&S ZN-Z170/-Z135/-Z129/-Z129E 4 Gauging the Connectors The pin depth of the connectors are critical for safe and accurate functioning: ● If the center pin is too long, the connector is likely to damage another connector when tightened. One connector can damage many others.
