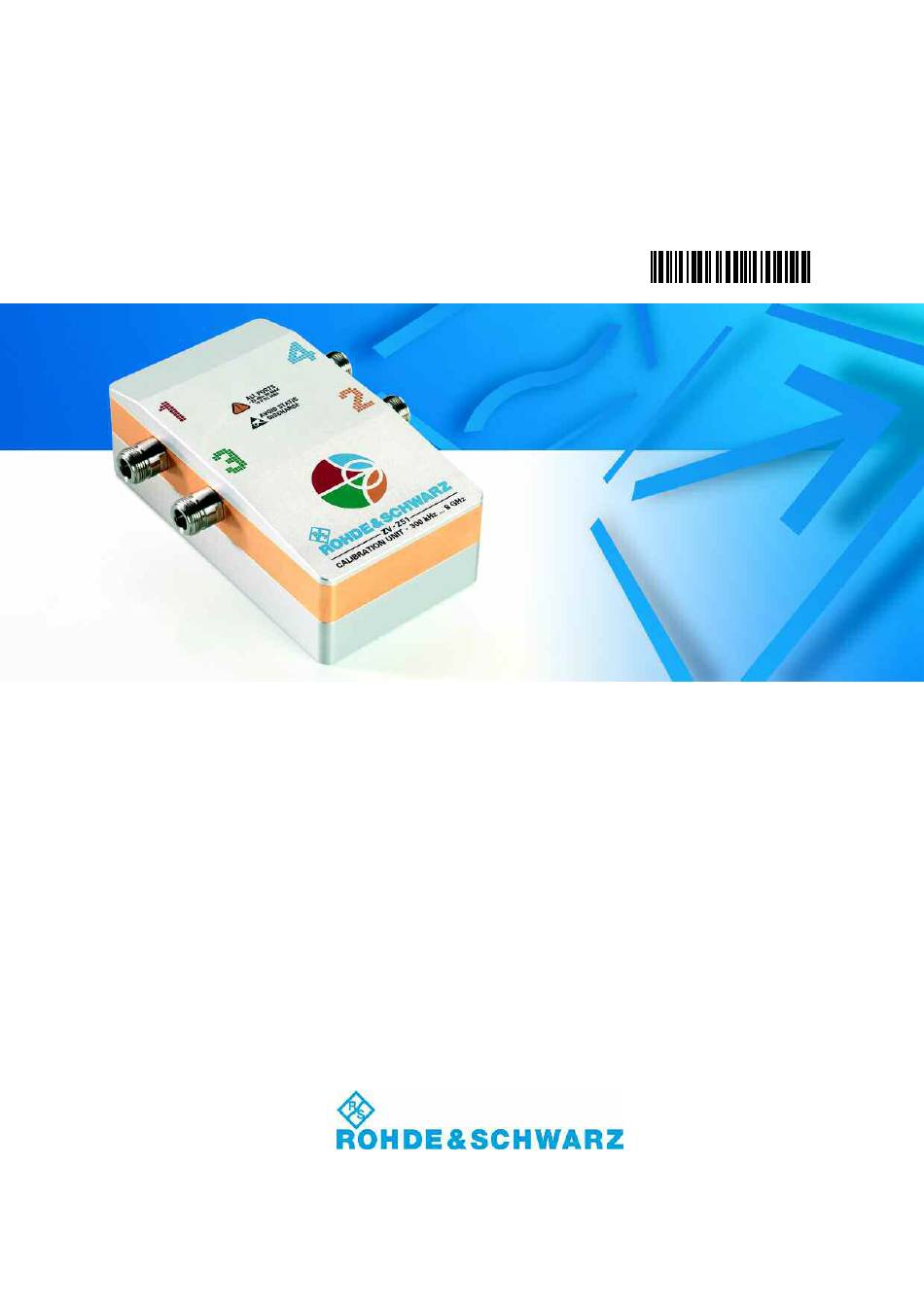

- Page 1 Technical Information Calibration Units ® ® R&S ZV-Z51 R&S ZV-Z52 1164.0515.30 / 1164.0515.70 1164.0521.30 ® ® R&S ZV-Z53 R&S ZV-Z54 1164.0473.32 / 1164.0473.72 1164.0467.92 ® R&S ZV-Z55 1164.0480.42 Test and Measurement 1164.0644.92-09...
- Page 2 Safety Instructions This calibration unit has been designed and tested in accordance with the EC Certificate of Conformity and has left the manufacturer’s plant in a condition fully complying with safety standards. To maintain this condition and to ensure safe operation, you must observe all instructions and warnings given on this page.
- Page 3 Automatic Calibration A calibration unit is an integrated solution for automatic calibration of several network analyzer ports. The unit contains calibration standards that are electronically switched when a calibration is performed. The calibration kit data for the internal standards is stored in the calibration unit, so that the analyzer can calculate the error terms and apply the calibration without any further input.
- Page 4 To connect the unit... 1. Switch on and start-up your network analyzer. 2. Wear a grounded wrist strap; see ESD Protective Measures on the previous page. 3. Connect the USB type A connector of the USB cable to any of the USB type A connectors on the front or rear panel of the analyzer.
