Figure 9: Transmit Command

2.3 LEDs

The neoOBD2-SIM also has four multicolored LEDs that are programmable using the Set Value
command. By default, the LEDs run in an automatic mode that shows different colors under
certain circumstances, such as when the device is in bootloader mode while reflashing firmware.
To use the LEDs, the first step is to turn the Auto function off. Simply set the Auto property of
each LED to 0. LEDs are found under Physical IO, just like Encoders and Buttons.

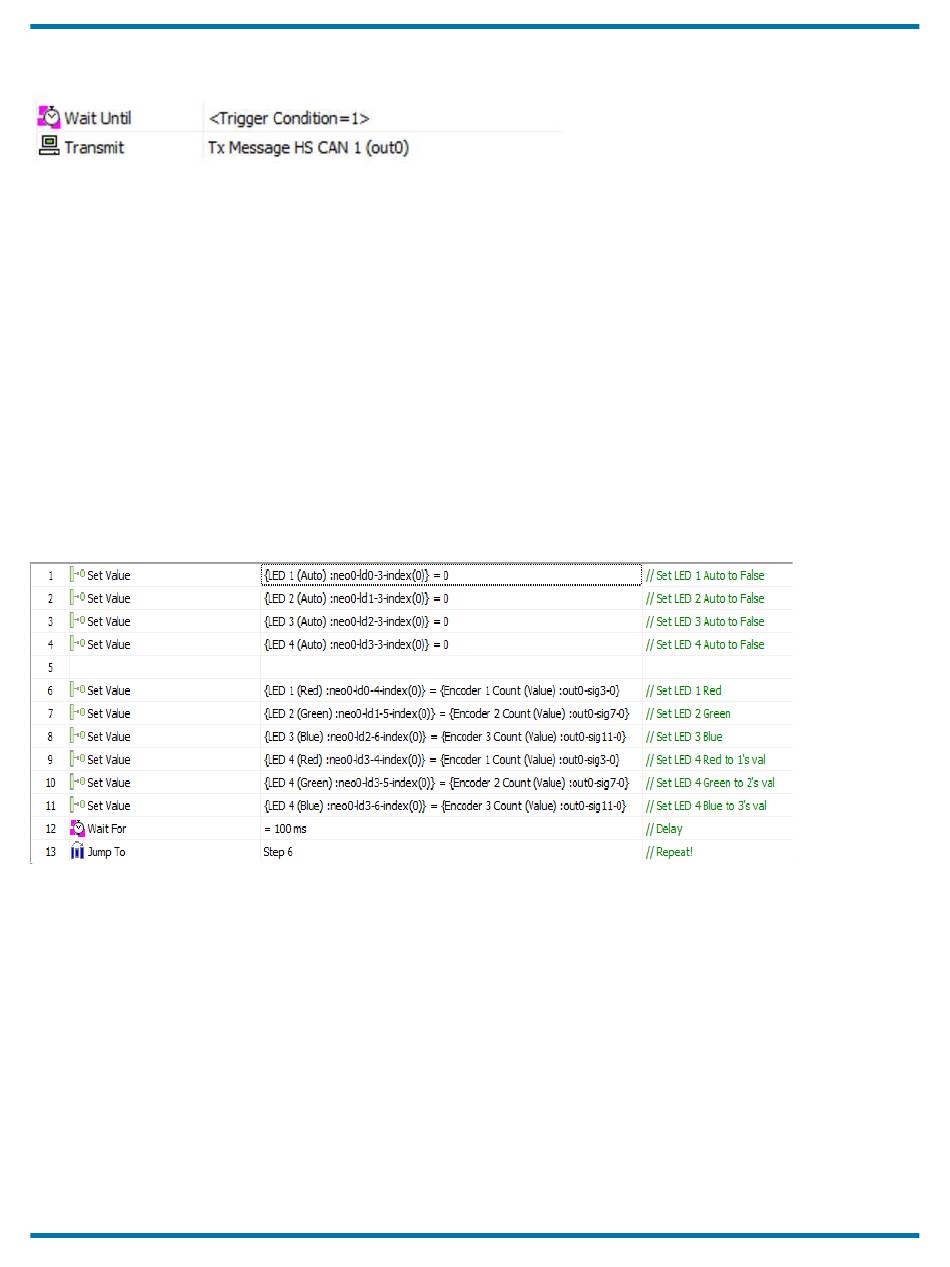

Below is a snippet from a neoOBD2-SIM Example Function Block that changes LED colors
based on the encoder position values (although the values can be fed by any variables, or a static
value). The color properties have a range of 0-255, with 0 being off and 255 being maximum.
Figure 10: LED Example

2.4 Sending the Script for Coremini Mode

Once a script is ready, it's time to send the script to the device. From Vehicle Spy click on Tools
> CoreMini console.The console should look similar to the following figure:
