Wait Until
The Wait Until step simply pauses the function until the requested criteria is met. An example is
shown in Figure 6.
Buttons
Buttons on the neoOBD2-SIM are used by pressing the Rotary Encoders. The encoders have
a noticeable tactile click when the button is pressed.
Switches 1 through 4 will work with the neoOBD2-SIM. The example in Figure 6 below also
waits for the value to reset to 0 before restarting (this prevents the script from running more
often than intended).

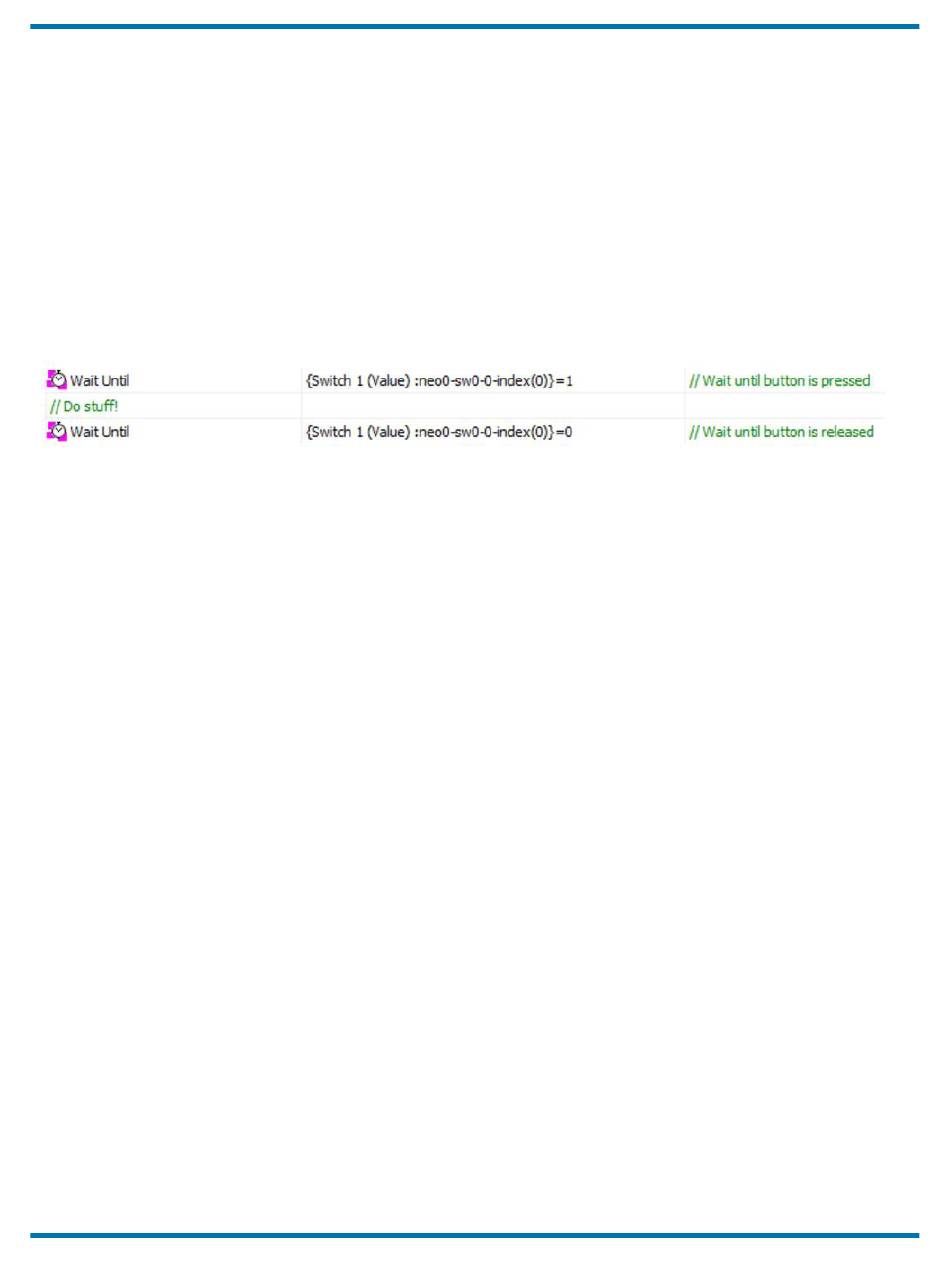

Figure 6: Wait Until Step
LCD Display
The neoOBD2-SIM also has a LCD display that can also be used to display text. The LCD
display consists of four lines with twelve characters each.
When a line is full, but more characters are in the command, the remaining characters will be
truncated. When supplying text, make sure to pad out the rest of the characters to twelve with
spaces. This is because the LCD will persist characters until they are overwritten by something
else.
Log Data
Log Data will be the command used to send the text to the LCD screen.The Log Type must be
set to neoECU LCD, and the recommended starting positions (abbreviated as SP) are as follows:
Line 1: Set SP to 0
Line 2: Set SP to 12
Line 3: Set SP to 24
Line 4: Set SP to 36
