MicroStep Start Shaphon SH-HC31 Manual page 8

Torch height controller
Hide thumbs Also See for Start Shaphon SH-HC31:

Advertisement

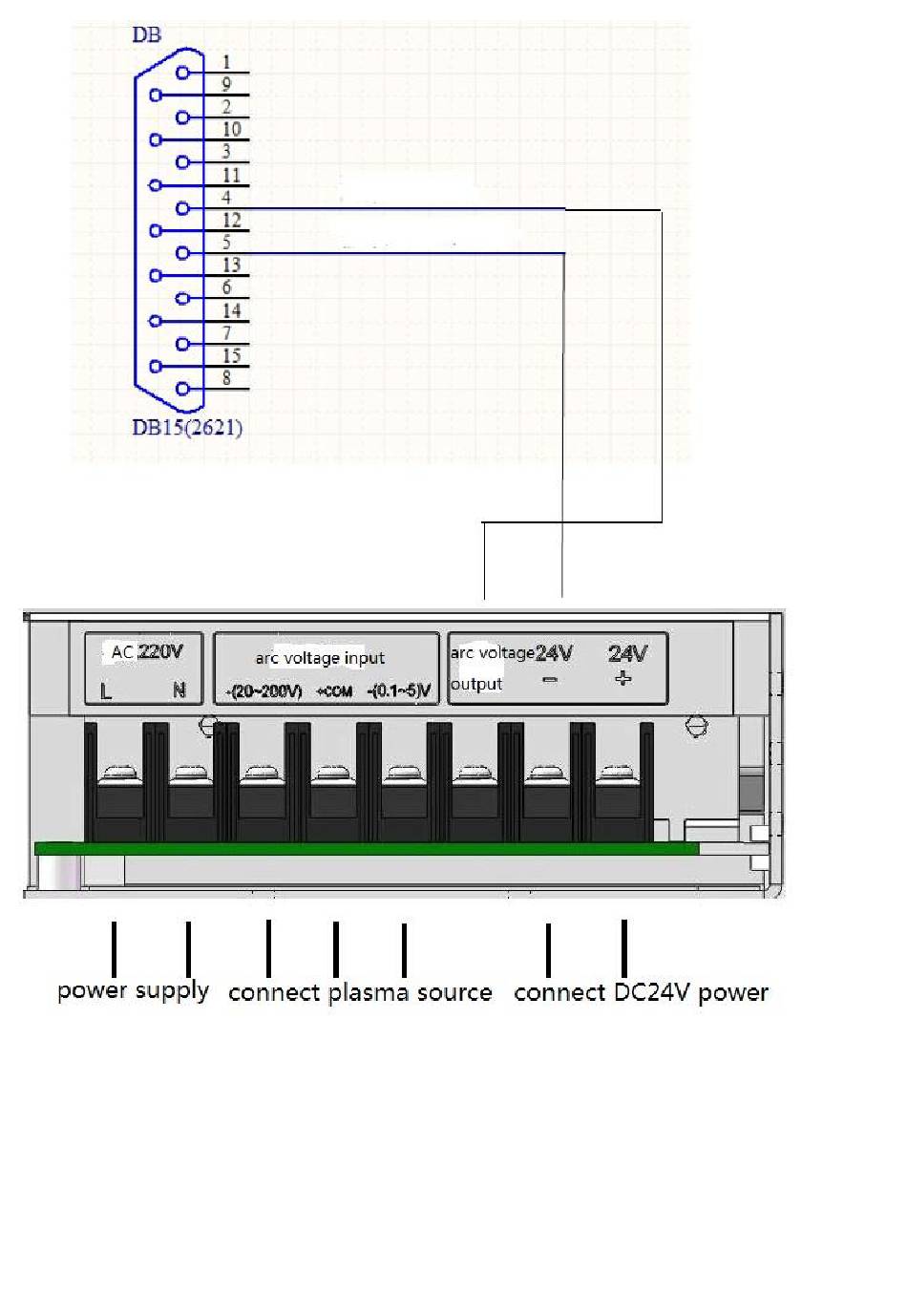

Note: if plasma power source is 1:1, then connect –(20~200)V input.
If plasma power source is 50:1, then connect –(0.1~5)V. And open the voltage divider
box, break the jumper JP2 and connect JP1.
