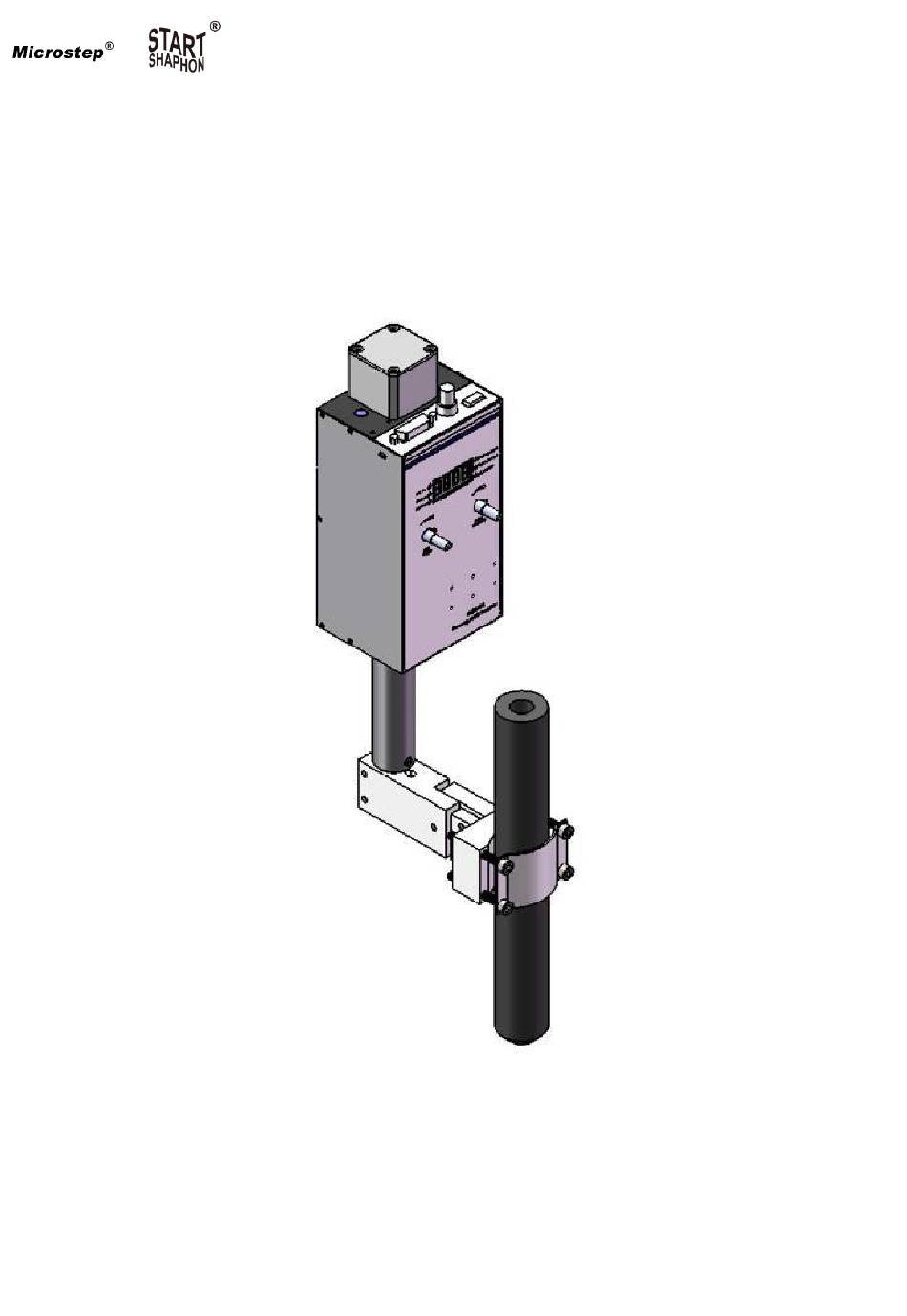

- Page 1 Torch Height Controller SH-HC31 Manual Beijing Flourishing Start Control Technology Co., Ltd. Tel: 0086 10 8890 9235 Mobile (WhatsApp): 0086 159 0106 9532 Email: cuttingcnc@hotmail.com Skype: henryhaozq www.startsh.com...
- Page 2 Safety notice Please carefully read the manual before using the product.. Safety operation Users must follow safety operation rules made by the country and the company. Mechanical danger Operation and repair of automation equipment are a little dangerous and are careful. Please be far away from the working equipment.
-
Page 3: Chapter 1 General Introduction
Guarantee period: within 12 month after leaving our company. Guarantee terms: during guarantee period any problems under normal operations. During guarantee period, we charge for out of guarantee terms. We charge for all problems out of guarantee period. Following situations are beyond guarantee: Any damage under abnormal operation or accident damage;... - Page 4 control and mechanical parts”, “stepper motor & driver” and “one-key calibration”, it adds new features as below, Knobs for height and sensitivity adjustment: it can statically and dynamically adjust the height and the sensitivity and save the result. The pulse adjustment knob has better lifetime and reliability than contact-type potentiometer.
- Page 5 connection...
- Page 6 SH-HC31 15-pin port definition Pin No. Definition Instruction Arc voltage signal Connect arc voltage signal of plasma, input range DC0-5V, if plasma has that, then connect a voltage divider box. Arc voltage signal ground Connect arc voltage signal ground of plasma 7, 14 DC24V+ Connect DC24V+...
- Page 7 The connection of SH-HC31 and CNC CC-S3 (S3A), plasma cutting The connection of SH-HC31 and the voltage divider box (plasma cutting)
- Page 8 Note: if plasma power source is 1:1, then connect –(20~200)V input. If plasma power source is 50:1, then connect –(0.1~5)V. And open the voltage divider box, break the jumper JP2 and connect JP1.
-
Page 9: Chapter 2 Quick Start

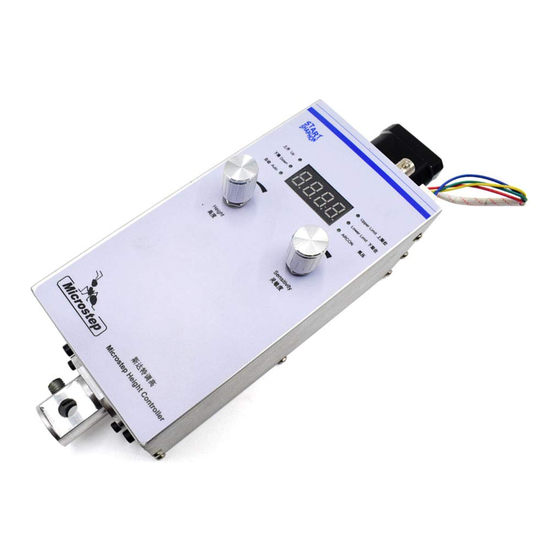

Chapter 2 Quick Start 2-1 panel Instruction Height knob, adjust and set the height. In the plasma mode and the manual mode, press it to show b value (location height), this moment to rotate it to set the location height. - Page 10 Sensitivity knob, adjust and set the sensitivity. In the plasma mode and the manual mode, press it for one-button location, the torch moves down, and touches the zero point switch, and then moves up to the location height and stops. In the flame mode and the manual mode, press it 2s for one-button calibration.
- Page 11 E: sensitivity, range 1~10 b: initial location height, range 1~20mm Indicator lights Up: move up Down: move down Auto: in the auto mode. When the light off, in the manual mode Upper limit Lower limit Arc voltage: there is arc voltage signal input 2-4 error tip EE01: cancel auto, press the sensitivity button to cancel the error EE02: setting save fails, power on again...
