ABB Ability Smart Sensor Installation Manual page 4

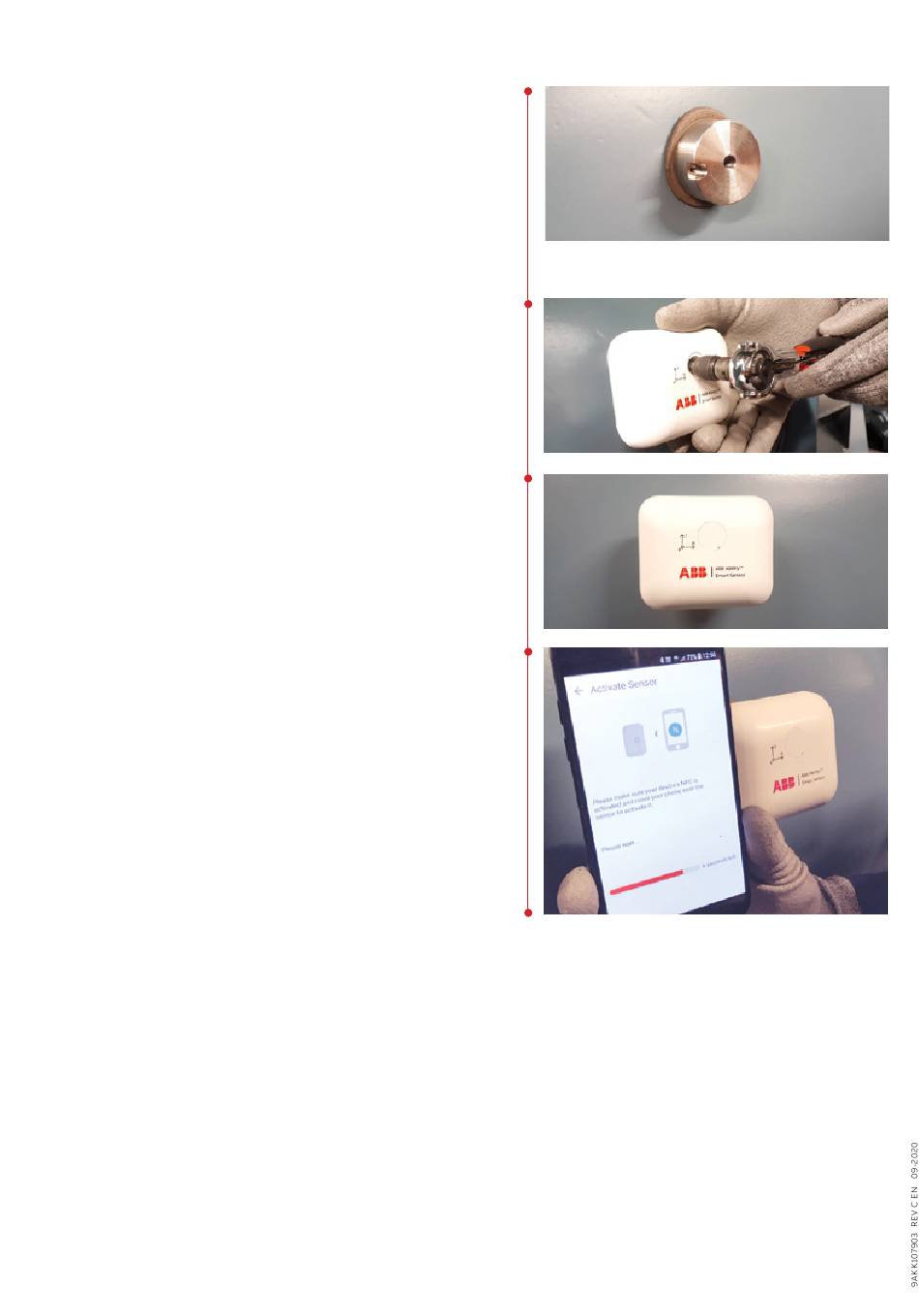

Step 4
Press the flat surface mount against the putty. Make
sure that the mount is pressed deep enough.
CAUTION: ALLOW PUTTY TO DRY FOR 10 MINUTES
BEFORE MOVING ON TO STEP 5 TO MAKE SURE
THAT THE INSTALLATION IS ROBUST. THE AMBIENT
TEMPERATURE AND THE SURFACE TEMPERATURE
MUST BE WITHIN 15 °C – 35 °C (59 °F – 95 °F) FOR THE
PUTTY TO CURE.
Step 5
Fasten the ABB Ability™ Smart Sensor to the flat sur-
face mount by using the M6 hexagon socket screw.
Tighten the screw with 10 Nm (7.4 ft-lb) of torque.
Make sure to hold the sensor while tightening the
screw to avoid exerting torque on the putty and the
flat surface mount.
Step 6
Make sure that the ABB Ability™ Smart Sensor is
mounted parallel to the rotating shaft. Assemble
the screw hole cover to hide the screw hole.
Step 7
Activate the sensor by turning on the smartphone's
NFC and tap the left side of the sensor with the smart-
phone. Digitally connect the sensor by using the ABB
Ability™ Smart Sensor Platform App. Log in using your
ABB credentials and navigate to the "Commission
new asset" menu, to pair the Smart Sensor to the
asset to be monitored.
NOTE: After commissioning, the sensor has a two-
month trial period with full functionality. After the
trial period, the usage can be continued by activa-
ting a subscription acquired from a local ABB sales
unit or from ABB Ability Marketplace
with your local ABB partner if the ABB Ability Market-
place
—
