ABB Ability Smart Sensor Installation Manual page 3

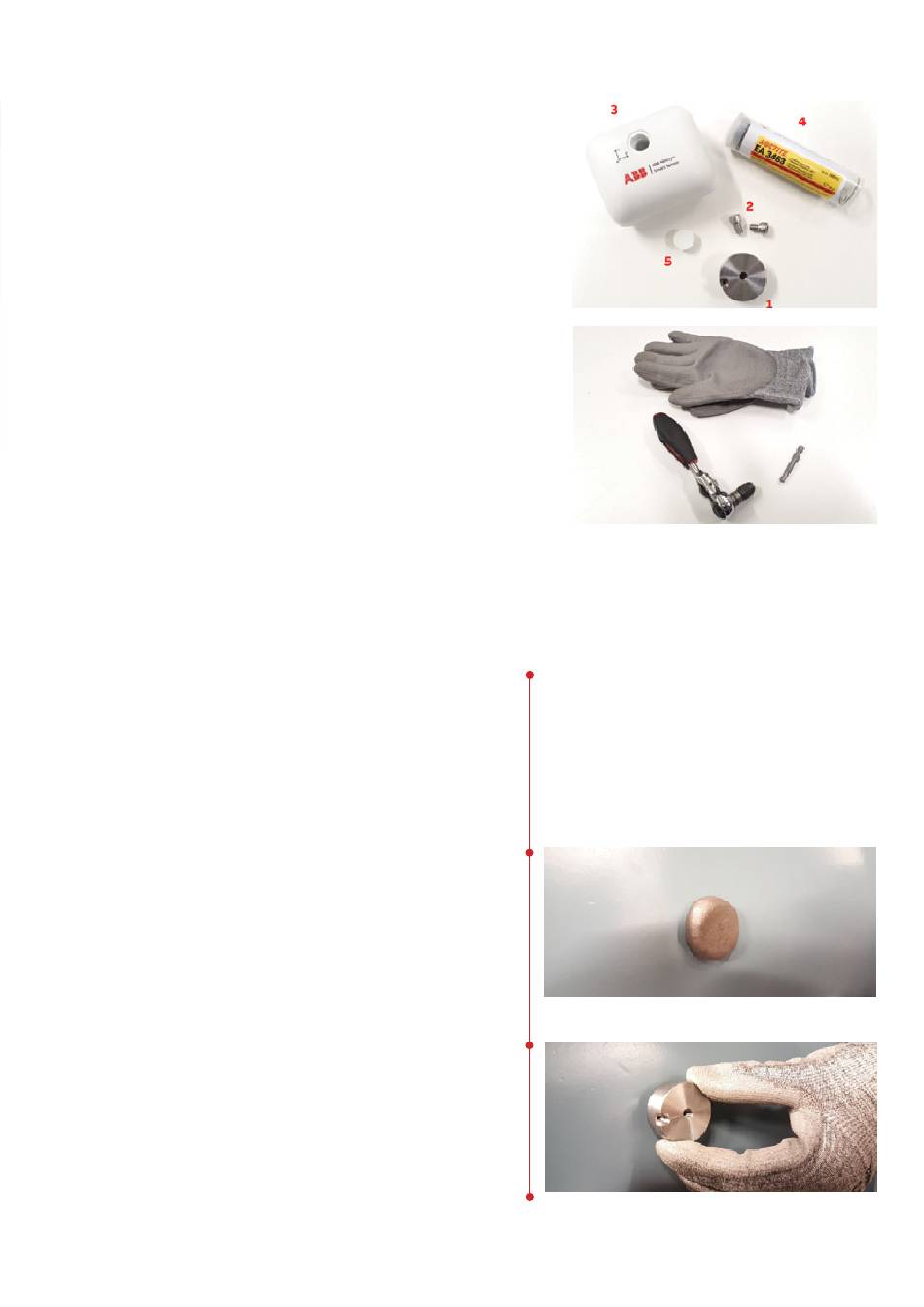

Items required for the installation
• 1 Flat surface mount
• 2 Hexagon socket screw (2 pcs)
• ¼" – 28 (black)
• M6
3
• ABB Ability™ Smart Sensor for hazardous areas
4
• Loctite™ EA 3463 or similar putty
• 5 Cover for screw hole
•
Degreasing agent
• Rubber gloves
• Safety goggles
• 50 mm hex bit and suitable wrench
• 3/16" for ¼" – 28 screw
• 5 mm for M6 screw
WARNING
Direct skin exposure to solvents and/or thread locker
could cause discomfort or injury, including, but not
limited to, burning or skin irritation. Use appropriate
protective gloves and goggles when following these
instructions.
Installation steps
Step 1
Degrease the installation surface at the recommended
mounting position.
CAUTION: REVIEW AND FOLLOW ALL MANUFACTUR-
ER'S INSTRUCTIONS AND SAFETY PRECAUTIONS
WHEN USING DEGREASING AGENT.
Step 2
Apply Loctite EA 3463 or similar putty to the installati-
TM
on surface. Form the putty as a round disc as shown
in the picture.
CAUTION: REVIEW AND FOLLOW ALL MANUFACTUR-
ER'S INSTRUCTIONS AND SAFETY PRECAUTIONS
WHEN USING PUTTY.
Step 3
Place the flat surface mount in the center of the
putty disc.
For installations in Zone 0 and Zone 20 environments,
the mounting piece must be grounded via a wire.
Please verify that the mounting piece is grounded by
measuring the resistance between the motor frame
and the mounting piece.
3
