The Kramer T-RC-8IR TBUS Mounting Insert Kit for RC-8IR
Congratulations on purchasing your Kramer insert kit for the RC-8IR. The T-RC-8IR lets you
add the RC-8IR to TBUS inner frames that include dual power socket openings. (The
TBUS-1Axl, TBUS-10xl and TBUS-18xl).

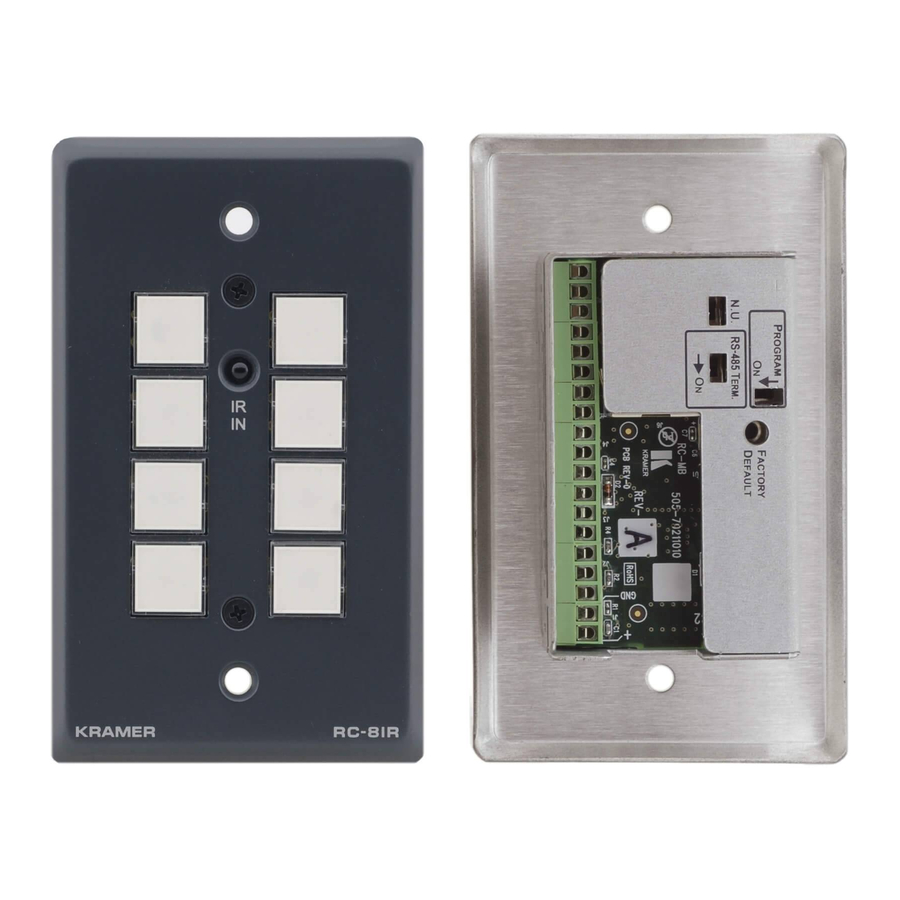

Figure 1: T-RC-8IR Insert Kit for RC-8IR (P/N: 80-000599)
!
Note that you can only use the EUROPEAN VERSION of the
RC-8IR with the T-RC-8IR when installing in a TBUS. Other
versions will not fit the T-RC-8IR.
www.camboard.de
CAMBOARD Electronics
Installing the T-RC-8IR Insert Kit for RC-8IR
To install the T-RC-8IR insert:
1.
Unscrew the two faceplate
attachment screws and remove the
RC-8IR faceplate.
2.
Place the T-RC-8IR over the RC-8IR enclosure so that both faceplate holes are aligned
with the faceplate holes on the RC-8IR enclosure and the IR IN receiver fits into the IR
IN opening (see
3.
Insert the faceplate screws through the T-RC-8IR and RC-8IR enclosure faceplate
holes, and tighten.
Figure 3: T-RC-8IR Installation
Tel. 07131 911201
Fax 07131 911203

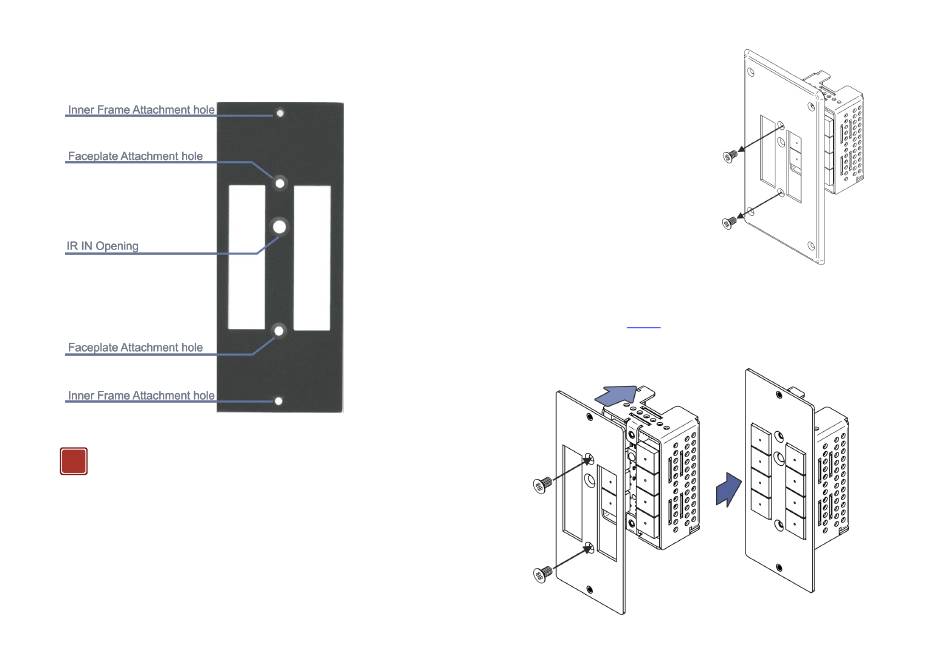

Figure 2: RC-8IR Faceplate Holes Insert Kit for RC-8IR
Figure
3).
