OS001_instructions_Layout 1 17/12/2013 11:09 Page 1
Auto Mode
When in auto mode the unit will operate according to the settings of the Lux and Time controls.
Manual Override
From Auto mode the unit can be manually overridden by switching the power off and on twice
within 3 seconds, this will turn the light permanently on. After 6 hours the unit will then revert
back to auto mode or the unit can be put back into auto mode at any time by switching the
power off and on once.
CLEANING
Clean with a soft dry cloth only, do not use other materials or solutions which may damage the fitting.
ML Accessories Limited
LU5 5TA
www.mlaccessories.co.uk
Blanking Inserts
Blanking inserts are supplied that can be cut
and attached to the lens to blank out areas of
interference as required i.e. automatic heat
sources, public pathways.
10-13 V – PS
Installation & MAINTENANCE MANUAL
OS001 / OS001B

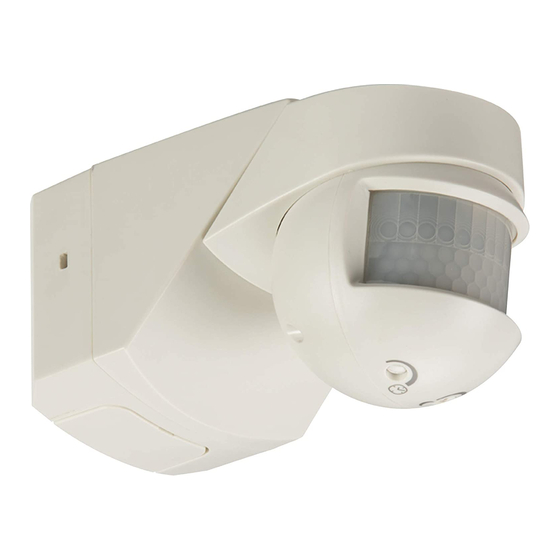

OUTDOOR MOTION SENSOR
IP
230V
55
50Hz
85
Advertisement
Table of Contents
Related Manuals for Knightsbridge OS001
Summary of Contents for Knightsbridge OS001
- Page 1 INSTALLATION & MAINTENANCE MANUAL OS001 / OS001B Auto Mode When in auto mode the unit will operate according to the settings of the Lux and Time controls. Manual Override From Auto mode the unit can be manually overridden by switching the power off and on twice within 3 seconds, this will turn the light permanently on.
- Page 2 OS001_instructions_Layout 1 17/12/2013 11:09 Page 3 GENERAL INSTRUCTIONS: These instructions should be read carefully and retained after installation for further reference and maintenance. SAFETY • Before installation/maintenance, ensure that the mains supply to the luminaire and sensor is switched off and the circuit fuses are removed or circuit breakers switched off •...
