DO GUIDE
TPS-6X-BTP
Battery Pack for TPS-6X

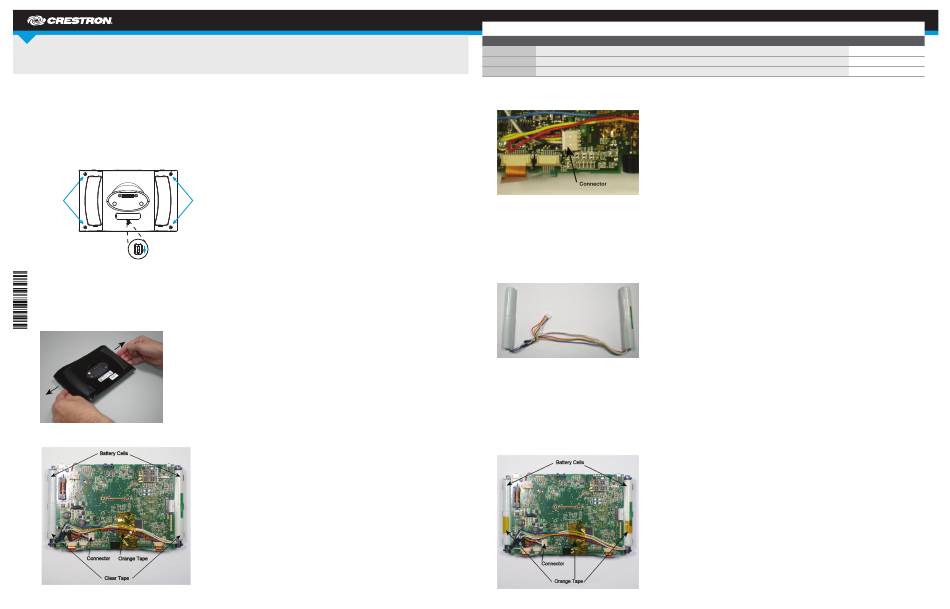

DO Remove the Old Battery Pack
NOTE: The TPS-6X Wireless Touch Screen contains ESD (electrostatic discharge) sensitive devices. To avoid damaging the unit, perform the following
procedure on a grounded workstation or while wearing a grounding strap that is properly grounded.
NOTE: To prevent damage to the multipin connector and wiring, use care when handling the TPS-6X-BTP.
To remove the existing TPS-6X-BTP from a TPS-6X touch screen, perform the following procedure. A #1 Phillips screwdriver and a small flat head
screwdriver are required.
1. With the touch screen turned off, use the included T-pin to slide the battery switch on the rear to the OFF (down) position. Then, place the touch
screen face down on a clean, padded work surface.
Screws Screws
2. Remove the four screws that secure the front bezel to the touch screen, and then return the unit to its normal, face-up position. (Use care and hold
the bezel against the touch screen. If the bezel separates from the rest of the touch screen while rotating the unit to its normal position, the internal
parts of the unit may spill out.)
3. Lift the front bezel from the touch screen, and then place the touch screen assembly face down on the work surface.
4. Carefully remove the rear of the enclosure from the touch screen by grasping the support frame at the left and right edges, gently spreading them
(as shown in the following illustration), and lifting the assembly. The touch screen will snap out of the enclosure.
5. Remove the orange tape securing the battery pack wires to the circuit board and the two pieces of clear tape on each battery cell.
DO Check the Box
QUANTITY PRODUCT
2 Tape, 1" x 1"
1 Tape, 1" x 2"
1 Tool, T-Pin
6. Using the tip of a small flat head screwdriver, gently separate the multipin connector from the corresponding connector on the circuit board of the
TPS-6X.
7. From both sides of the assembly, remove the battery cells with the connecting wires attached.
DO Install the Battery Pack
NOTE: The TPS-6X Wireless Touch Screen contains ESD-sensitive devices. To avoid damaging the unit, perform the following procedure on a grounded
workstation or while wearing a grounding strap that is properly grounded.
To install the TPS-6X-BTP, perform the following procedure. A #1 Phillips screwdriver is required.
1. Orient the TPS-6X-BTP so the black and white wires are on the bottom left side, and the red and yellow wires are on the bottom right side.
2. Place the battery cells in their compartments on the left and right sides of the TPS-6X assembly. Ensure the ridge that runs along the length of each
cell is facing inward, toward the center of the assembly, and the rounded side of each cell is facing outward.
3. Carefully connect the miltipin connector of the TPS-6X-BTP with the corresponding connector on the circuit board of the TPS-6X.
4. Dress the TPS-6X-BTP cables as shown in the illustration following step 5, and apply the 2" (50 mm) piece of orange tape (included with the
TPS-6X-BTP) to hold the wires in place.
5. Apply the 1" (25 mm) pieces of orange tape (included with the TPS-6X-BTP) to each battery cell, and extend the tape to the black tabs on each side
of the battery housing support. Refer to the following illustration. These orange pieces replace the clear tape that held the original cells in place.
NOTE: Ensure the tape does not wrap around to the front of the touch screen where it could contact the light fibers on either side of the screen.
PART NUMBER
2023162
2023163
2020478
