Summary of Contents for Adaptec APA-9320

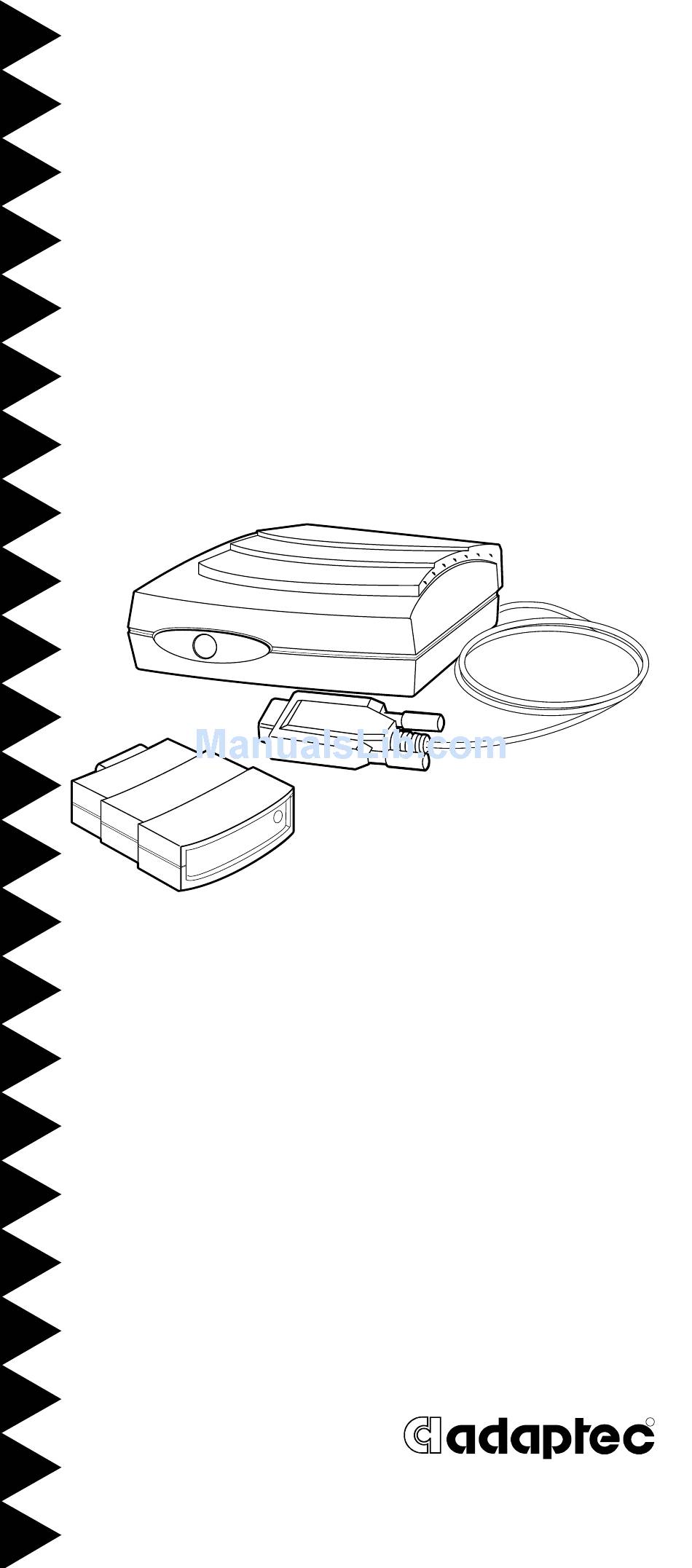

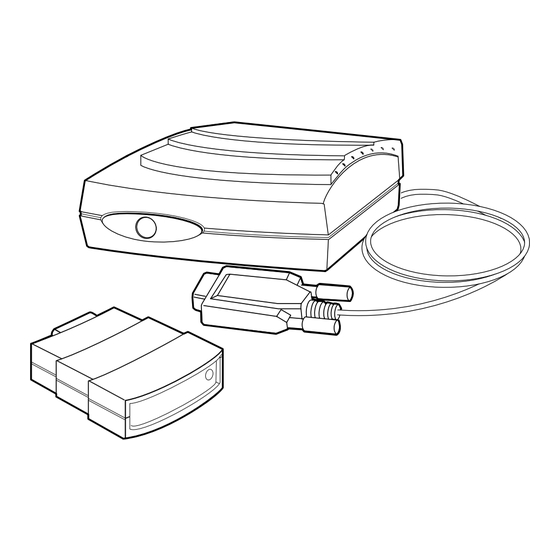

- Page 1 Installation and Reference Guide AIRport 2000 Model Number: APA-9320 External Infrared Adapter...
- Page 2 AIRport 2000 Features ™ The AIRport you to easily transfer files between a desktop com- puter and a portable computer with a built-in IrDA- compliant infrared adapter, without using cable con- nections. (You can also use AIRport devices to trans- mit files between two desktop computers.) AIRport 2000 easily connects to your PC’s serial (COM) port.
- Page 3 Installing AIRport 2000 Locate a COM (serial) port on the back of your PC. Most COM ports use 9-pin male connectors. Note: If all your PC’s COM ports are already used by a mouse and/or an external modem, you must install an add-in board with addi- tional COM ports.
- Page 4 (See Power Options on page 4 for more information.) Back of AIRport 2000 Remove the AIRport 2000 battery cover, as shown in the following diagram, and insert four AA batteries. (Alkaline batteries are rec- ommended.) Then replace the cover. Place the AIRport 2000 on a hard, flat, level sur- face at least 1 foot away from your PC monitor.
- Page 5 6 V DC at 50 milliamps minimum 2.1 mm connector, with negative center post You can order an AC adapter from Adaptec at the telephone number listed on page 7, or you can pur- chase one at any electronics supply store.
-
Page 6: Troubleshooting
Positioning for Data Transfer Typically, you connect an AIRport 2000 to your desk- top computer to enable wireless communication with a built-in infrared device on a laptop or portable PC. The infrared lens must be in a direct line of sight with the infrared lens on the other computing device. -
Page 7: Adaptec Customer Support
We offer the following support and information services: For technical support (answers to technical questions, informa- tion about the Adaptec BBS, FTP and WWW Servers, and access to the Interactive Fax system), call 800-959-SCSI (7274) or 408-945-2550, 24 hours a day, 7 days a week. To speak with a product support representative, call 408-934-SCSI (7274), M–F: 6:00 a.m. -
Page 8: Fcc Compliance Statement
Adaptec, Inc. 691 South Milpitas Blvd. Milpitas, CA 95035 Copyright © 1995, Adaptec, Inc. All rights reserved. Adaptec, the Adaptec logo, and AIRport are trademarks of Adaptec, Inc. which may be registered in some jurisdictions. All other trademarks are owned by their respective owners.
