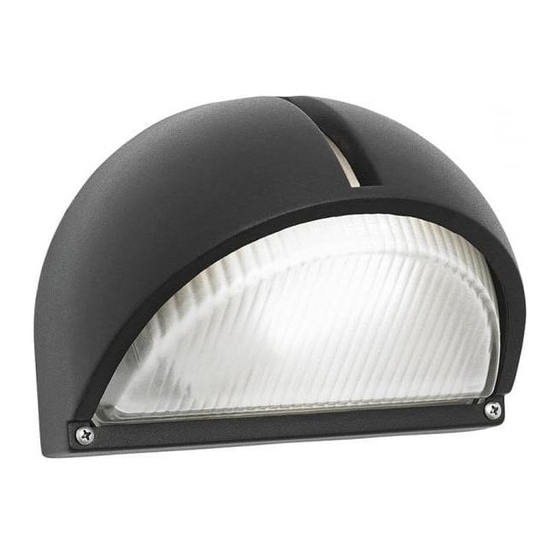

Saxby Lighting Eyot Wall EL-YG-5006 Instruction Leaflet

Saxby Lighting Eyot Wall EL-YG-5006 Instruction Leaflet

Advertisement

Quick Links

Commissioning

• Fit the bulb, refit the plastic shade, and secure using the
screws.
• Replace fuse or circuit breaker and switch on. Your light
is now ready for use.

Fitting/replacing bulbs

• When changing a bulb, always switch off at the mains
and allow the bulb to cool before handling. Used bulbs
should not be disposed of with household waste. Please
recycle where facilities exist.
• Always use the correct type and wattage bulb. Using the
incorrect wattage bulb will damage the bulb and ballast.
We recommend cleaning with a soft dry cloth.
Do not use solvents or abrasive cleaners as these could
damage the finish.

Recycling advice

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
Check with your Local Authority or retailer for recycling advice.

Safety information

For your safety, always switch off the supply before changing lightbulbs, or cleaning.
This bulb is protected by a plastic shade. This part must be replaced immediately should the plastic
shade become cracked or damaged. This fitting must not be used without the plastic shade in place.
Replace Cracked
Shade
www.saxbylighting.com
10W G24d-1 2 PIN PLC
Glass parts – Remove and wash in warm water or just use
a damp cloth. Do not use abrasive materials as these will
damage the finish.
Iss.2 30052014
Saxby Lighting Ltd. BH23 3PE
Instruction leaflet
Eyot Wall
EL-YG-5006, EL-YG-5007

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Eyot Wall EL-YG-5006 and is the answer not in the manual?

Questions and answers

Summary of Contents for Saxby Lighting Eyot Wall EL-YG-5006

  • Page 1 Instruction leaflet Commissioning • Fit the bulb, refit the plastic shade, and secure using the screws. Eyot Wall • Replace fuse or circuit breaker and switch on. Your light is now ready for use. EL-YG-5006, EL-YG-5007 Fitting/replacing bulbs • When changing a bulb, always switch off at the mains 10W G24d-1 2 PIN PLC and allow the bulb to cool before handling. Used bulbs should not be disposed of with household waste. Please recycle where facilities exist. • Always use the correct type and wattage bulb. Using the incorrect wattage bulb will damage the bulb and ballast. We recommend cleaning with a soft dry cloth. Glass parts – Remove and wash in warm water or just use Do not use solvents or abrasive cleaners as these could a damp cloth. Do not use abrasive materials as these will damage the finish. damage the finish. Recycling advice Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. Safety information For your safety, always switch off the supply before changing lightbulbs, or cleaning. This bulb is protected by a plastic shade. This part must be replaced immediately should the plastic shade become cracked or damaged. This fitting must not be used without the plastic shade in place. Replace Cracked Shade Iss.2 30052014 www.saxbylighting.com Saxby Lighting Ltd. BH23 3PE...
  • Page 2 Installation Thank you for purchasing this light fitting. Please read the instructions carefully before use to ensure safe and satisfactory operation of this product. Please retain these instructions for future reference. Existing fittings must be completely removed before • Ensure the wall is capable of holding the weight of the installation of a new product. Before removing the existing product. Take care to avoid damaging any concealed fitting, carefully note the position of each set of wires. wiring and pipes. The correct fixings should be used for Warning brick, cavity walls or plasterboard. • Undo the 3 screws, and remove the front cover (Fig.1). • Pierce grommet and pass the supply cable through the Retain screws for future use. This light fitting is Class 1 and must be connected to incorrect wattage bulb will damage the bulb and ballast. hole in the wall back. an Earth circuit • Hold the wall back in place and mark the position of the When changing a bulb, always switch off at the mains and • Fix the wall back into position using the supplied screws...
