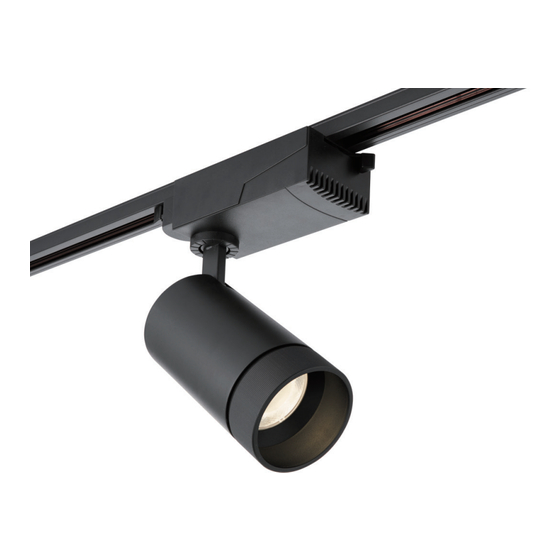

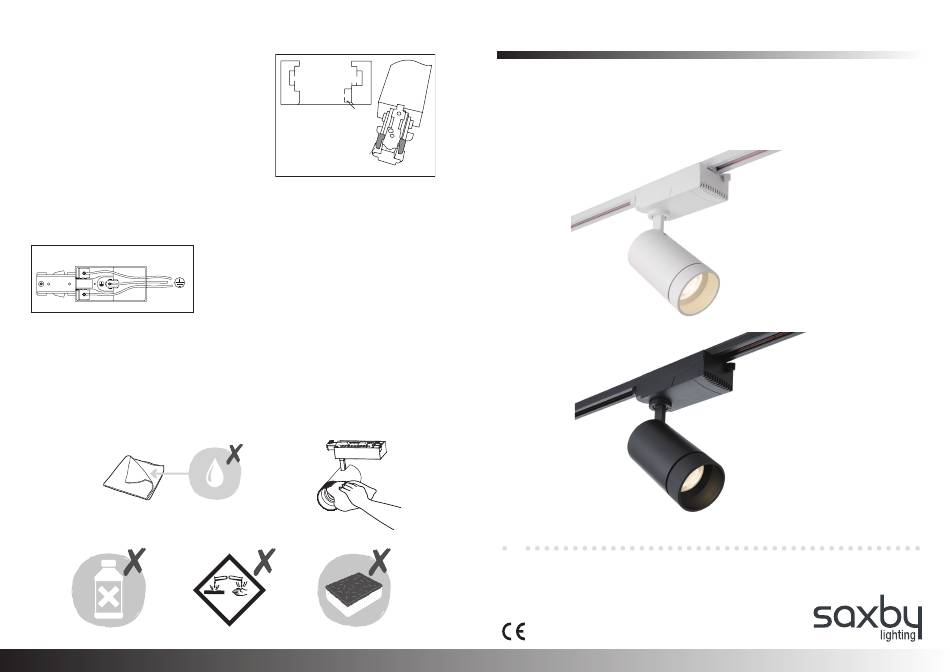

Saxby Lighting Cody track 79219 Instruction Leaflet

Connection
The track accessories are provided with earth connection points on both sides.
•
When offering the accessory to the track, verify which tab needs to be
•
removed. (See left hand diagram).
To remove the tab, grasp firmly with a pair of pliers and lever back.
•
The tab should snap cleanly off. (See right hand diagram).
Locate the accessory in the track and push home.
•
Wiring
Undo the screw and remove the cover from the live end. Push out the desired cable access point.
•
Indentify the correct cable from the supply and pull through.
•
Connect the supply wires to the terminal block, opposite the corresponding wires from the fitting.
•
The central connector can also be wired in this way.
Refit the cover onto the live end taking care not to trap the cable.
•
Supply
Check that ......
You have correctly identified the wires.
N N
The connections are tight.
No loose strands have been left out of the connection block.
L
L
Fitting Units
Locate the product in the track with the connections in the slot.
•
Slide the tab down, and rotate the product 90 degrees to engage the connections in the track.
•
Allow the tab to slide back up and ensure that it is located correctly in the track slot.
•
Replace fuse or circuit breaker and switch on. Your light is now ready for use.
•
Care and Safety
We recommend cleaning with a soft dry cloth. Do not use solvents or abrasive cleaners as these could damage the finish.
•
Always disconnect the product from mains at least 10 minutes allowing to cool down before any maintenance or adjustment.
•
WWW.saxbylighting.com
End view of track
Remaining Earth tab needs
Earth
to be inserted into Earth
Conductor
conductor to ensure Earth
continuity.
Remove One
or Other Tab
Marked in Grey
Iss .1 9/11/2018
Saxby lighting. BH23 3PE
Instruction leaflet
Cody track
79219, 79303
