9 WIRELESS

9.1 Sensor List
The sensor list feature works in conjunction with a number of non Modbus sensors. Sensor devices such as
PointSix, BAPI, and Badger/Orion typically transmit data on a preset interval and are not polled by the EMB
Hub. Data is received and uniquely identified by the sensor's serial number. Each sensor may be given a
name, and some have additional options to configure such as input value scaling.
9.2 ModHopper Map
The EMB Hub has additional diagnostic features th at assist with ModHopper deployments. The most useful

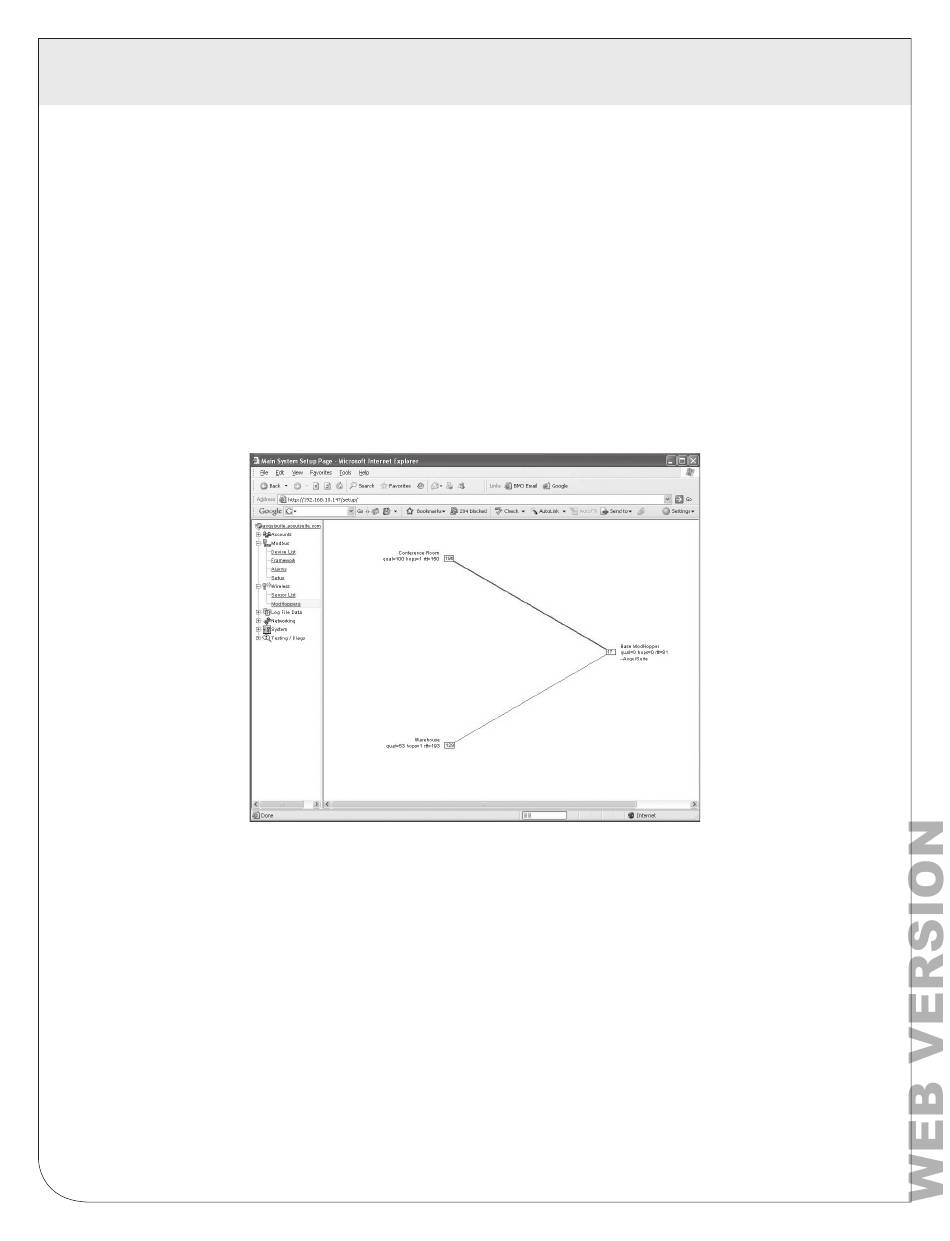

is the ModHopper route map. Select the ModHoppers menu from the Wireless section in the EMB Hub
menu tree as shown below.
The graph will draw a blue box for each ModHopper that is attached to the system. The blue number inside
the box icon is the Modbus address of the ModHopper. To the side of each icon, three lines of information
will be shown.
• The device list name will be shown to the side of each ModHopper icon.
• The link quality, hops and round trip time (rtt) will be printed under the ModHopper name.
• A list of attached Modbus device addresses will be shown on the third line. This is a list of addresses
that the ModHopper has automatically detected on the local RS485 port.
The graph will print strong links in thick green lines. Lines progress from green, to yellow, to red to indicate
weak links.
