Final Assembly; Indoor Use Note - KWIK GOAL 2B2 Assembly Instructions

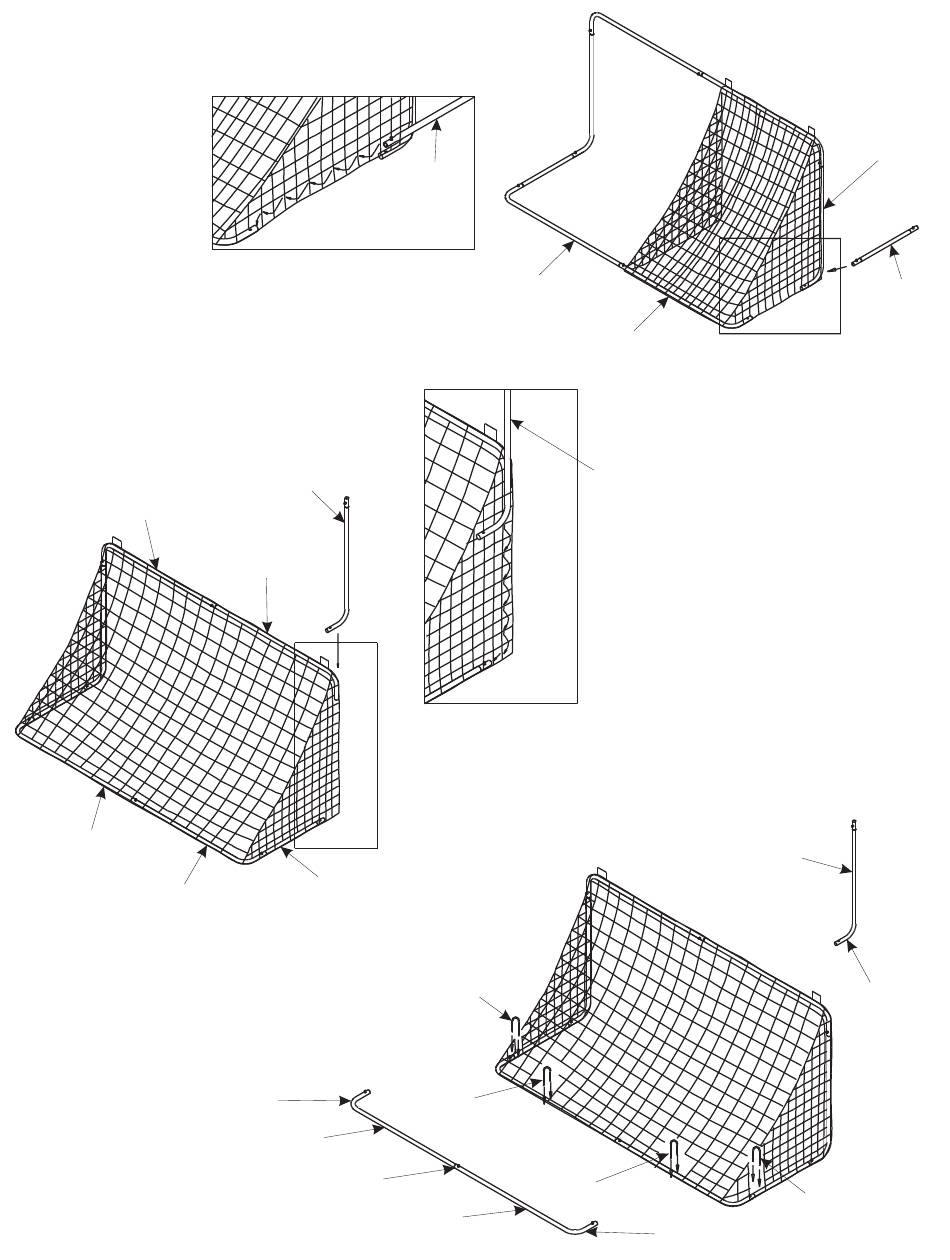

10. Weave base through net and attach to rail
as shown.
11. Disconnect post from goal and
weave through net as shown.
Reconnect post to base and rails as
shown.
Rail
w/ swage
Rail
w/o swage
Rail
w/ swage
NOTE FOR INDOOR USE: Rubber
pads can be added to bottom of
goal by peeling off paper to expose
adhesive. Place rubber pads on post
and rails at locations shown.
Rubber Pad
Post
Rail
w/o swage
Base
Rail
w/o swage
Rubber Pad
w/ swage
Base
Rail
w/o swage
w/ swage
12. Repeat step 10 and 11 to attach net to opposite side of
goal.
13. Use ground anchors to fasten goal to playing field.
Ground
Anchor
Ground
Anchor
Ground
Anchor
Rail
Rail
Post
Post
Rubber Pad
Post
Base
Rubber
Pad
Ground
Anchor
